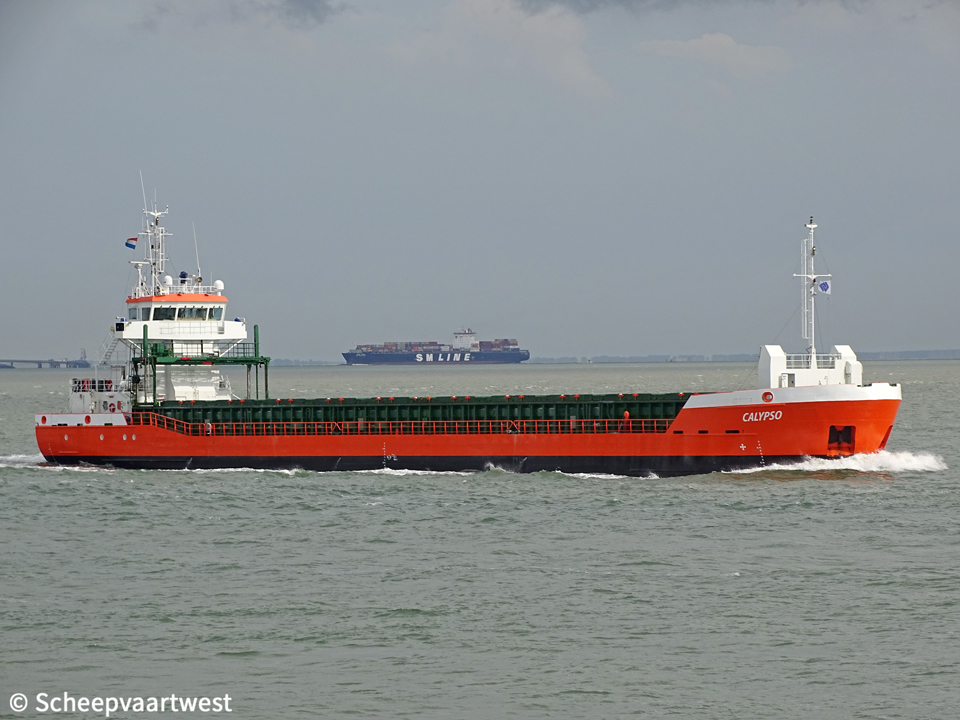

Calypso IMO 9370305 01

Westerschelde 12 August 2019



Name

CALYPSO

Type

General cargo ship - Gearless box single decker - Equipped for dangerous goods - Strengthened for heavy cargo

Damen Combi Freighter 3850

Basic functions

Transport of bulk, steel coils, containers, forest products, general cargo

IMO-number

9370305

Call sign

PCMI

Flag

The Netherlands

Port of registry

Rotterdam

GT

2.545 t

DWT

Summer: 3.758 t

DWCC

Summer: 3.650 t

Winter: 3.550 t

NT

1.460 t

Number of 20ft containers

In hold: 108

On deck: 80

Total: 188

Length

88,60 m overall

84,99 m between perpendiculars

Breadth

12,50 m moulded

Draught

Summer: 5,42 m

Winter: 5,28 m

3,20 m ballast

Air draft

27,40 m keel/mast

Depth

7,00 m moulded

Speed

12,3 knots

Built

2011

Delivery date

09/2011

Builder casco

ATVT Zavod Leninska Kuznya

Kiev

Ukraine

Builder completion

Damen Shipyards Bergum

Bergum

The Netherlands

Yard number

9400

Hull material

Steel

Hull type

Single hull

Movable bulkheads

2x Grain bulkheads in 9 positions

Continuous decks

1

Main engine

1x MaK 8M20C - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.065 bhp at 1.000 rpm

Builder: MaK Motoren GmbH & Co.KG, Kiel - Germany

Propellers

1x Controllable pitch propeller - Diameter 2.600 mm

Shaft generator

1x 330 kVA - 50Hz

Generators

1x Sisu diesel generatorsets 175 kVA - 50 Hz

Emergency generator

1x Sisu emergency/harbour generatorset 77 kVA - 50Hz

Compressed air receivers

2x Starting air compressors

Bow thruster

1x Fixed pitch propeller 220 kW - Electrically driven

Number of holds

1

62,50 x 10,10 x 8,43 m

49,50 x 10,10 x 8,43 m full box

Cargo hold capacity

Grain: 5.250 m³ / 185.400 ft³

Hold ventilation

Electrically driven hold ventilation for 6 air changes per hour

Number of hatches

1

62,70 x 10,10 m

Hatch cover type

10x Pontoon

Max permitted loads

Tanktop: 15,0 t/m²

Hatchcovers: 1,6 t/m²

Tank capacities

MDO: 199,6 m³

Gas oil: 10,7 m³

Lub oil: 8,60 m³

Dirty oil: 4,0 m³

Sludge: 4,0 m³

Sewage: 12,0 m³

Potable water: 56,4 m³

Ballast: 1.140 m³

Anchor equipment

1x MDO separator

1x Fuel oil trim pump

1x Bilge water separator, acc. to Marpol regulations

2x General service pumps, each 150 m³/hr at 2,3 bar

1x Fire fighting pump

1x Freshwater pressure set

1x CO2 fire fighting system for engine room and cargo hold

Deck lay-out and equipment

1x Elec. driven bow anchor winch with two warping heads

1x Elec. driven capstan aft

Rudder, fishtail type

Container fittings in tanktop and on hatch covers

Lashing eyes in hold and on outside of coaming

Lifting equipment

1x Gantry crane for pontoons

Accommodation

For captain and crew for a total of 8 persons with heating, ventilation and air-conditioning

Commerical manager

Capelle Chartering & Trading B.V.

Fascinatio Boulevard 742

2909VA Capelle aan den IJssel

The Netherlands

Registered owner

Alecto Chartering & Trading BV, Rotterdam - The Netherlands

Care of Capelle Chartering & Trading BV

Maindal 13,

2904 CS Capelle a/d IJssel,

The Netherlands

Renamed

07/2022 Clarity

United kingdom, Faversham - Call sign: MMDV9

Owner & manager: Faversham Ship Ltd., Faversham - United Kingdom

Latest data adjustment

16 September 2022
