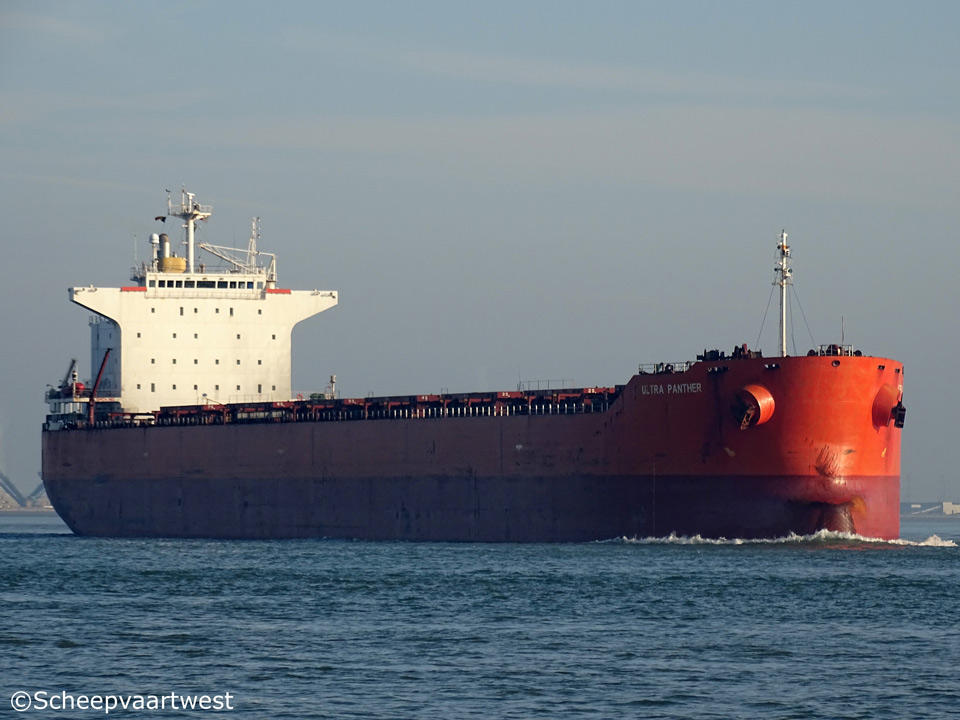

Ultra Panther 01

Westerschelde 07 December 2015



Name

ULTRA PANTHER

Previous names

2008 - 04.2012 Star Of Emirates

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9375939

Call sign

3ESA3

Flag

Republic of Panama

Port of registry

Panama City

GT

44.251 t registered

Suez: 45.773,99 t

DWT

Summer: 83.610 t

NT

27.095 t registered

Suez: 42.166,76 t

Panama: 38.052,75 t

Length

229,00 m overall

Breadth

32,24 m moulded

Draught

14,55 m

Moulded L x B x D

223,00 x 32,24 x 20,20 m

Registered L x B x D

223,00 x 32,24 x 20,20 m

Freeboard

5.705 mm

Depth

20,20 m moulded

Speed

Max.: 18,1 knots

Built

2008

Keel laid

19.12.2007

Launch date

22.04.2008

Date of completion

01.07.2008

Builder

Sanoyas Hishino Meisho Corporation

Japan

Yard number

1272

Hull material

High strength steel

Watertight bulkheads

8

Main engine

1x 2 stroke 6 cylinder 600 x 2.400 mm diesel engine 11.640 kW at 97,0 rpm

Manufacturer: Kawasaki Heavy Industries Ltd., Kobe - Japan

Propeller shaft

1x Oil Lubrication shaft without monitoring device

Diameter: 550 mm

Propellers

1

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary vertical boiler- 6,9 bar

Evaporation: 1,93 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

3x Main diesel generatorsets each 470 kW

Manufacturer: Taiyo El. Co., Ltd.-Gifu - Japan

Cargo hold capacity

Grain: 96.110 m³

Number of tanks

Ballast: 22

Lubricating oil: 7

Fuel oil: 7

Fresh water: 6

Diesel oil: 2

Waste water: 2

Chain: 2

Sludge: 2

Sea water: 1

Tank capacities 100%

Diesel Oil: 256 m³ / 222,72 t

Freshwater: 1.011,8 m³

Fuel Oil: 2.912,8 m³ / 2.778,14 t

Lube Oil: 141,3 m³ / 127,17 t

Tank Ballast: 23.550,1 m³ / 24.138,85 t

Lifting equipment

1x Engine room crane - SWL 3,5 t

Manufacture: Sekigahara Seisakusho Ltd.

1x General use handling crane - SWL 3,5 t

1x Hose handling davit - SWL 0,5 t

1x Provision & eng. parts handling crane - SWL 4,0 t

Manufacture: Kionitsu Kikai Co. Ltd.

Cargo gear

Gearless

Manager

Fairmont Shipping (H.K.) Ltd.

Operator

Ultrabulk
Smakkedalen 6
2820 Gentofte
Denmark

Registered owner

Sun Cordia Marine S.A.

Latest data adjustment

17 February 2017
