| Westerschelde 07 August 2020 |
|
Name |

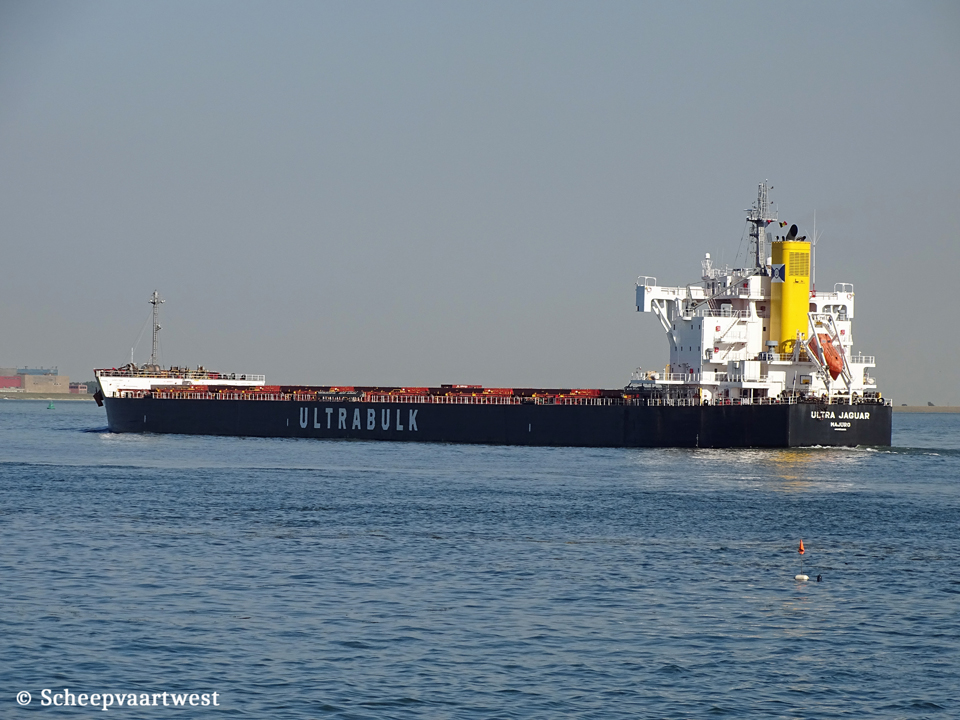

ULTRA JAGUAR |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading Panamax |
|
IMO-number |
9723136 |
|
Call sign |
V7QK4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
43.036 t |
|
DWT |
81.922 t |
|
NT |
27.490 t |
|
Length |
228,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,43 m |
|
Moulded L x B x D |
225.,0 x 32,26 x 20,00 m |
|
Registered L x B x D |
225.,0 x 32,26 x 20,00 m |
|
Freeboard |
Summer: 5.625 mm |
|
Depth |
20,00 m moulded |
|
Speed |
Max: 16,0 knots |
|
Built |
2016 |
|
Keel laid |
04/07/2015 |
|
Launch date |
09/10/2015 |
|
Date of completion |
07/01/2016 |
|
Builder |
Tsuneishi Group (Zhoushan) Shipbuilding Inc. Fukuyama Japan |
|
Yard number |
SS-176 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W/Mitsui 6S60ME-C8.2 - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 9.660 kW ar 89,0 rpm Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 560 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,70 MPa Evaporation: 2,97 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Generatorsets total 2.406 kVA |
|
Cargo hold capacity |
Grain: 97.246,70 m³ |
|
Tank capacities |
Fuel oil: 3.033,10 m³ Fresh water: 488,00 m³ |
|
Manager |
Union Marine Management Services Pte Ltd. 3 Harbourfront Pl, # 12-01 HarbourFront Tower Two Singapore 099254 Republic of Singapore |
|
Operator |
Ultrabulk Smakkedalen 6 2820 Gentofte Denmark |
|
Previous owners |
Chijin Shipping SA Japan |
|
Latest data adjustment |
14 October 2023 |
