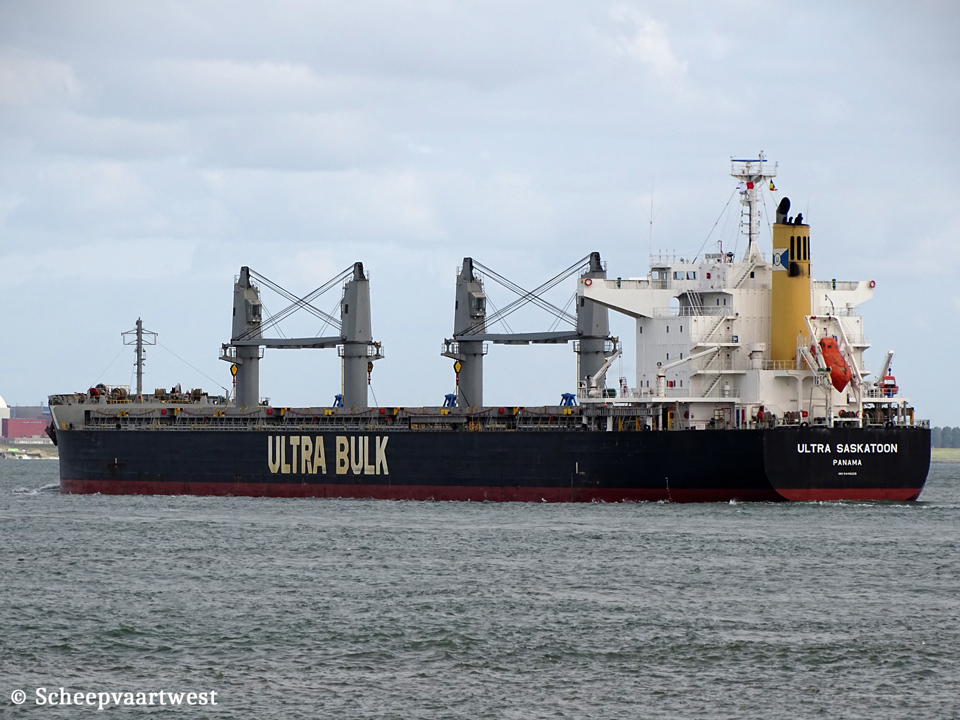

Ultra Saskatoon - IMO 9448229

Name

ULTRA SASKATOON

Type

Geared bulk carrier - Strengthened for heavy cargo loading

Supramax

IMO-number

9448229

Call sign

9V6592

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

2012 - 2021 Republic of Panama, Panama City - Call sign: 3FFG

GRT

34.778 t

DWT

61.470 t

NRT

20.209 t

Length

199,98 m over all

195,00 m between perpendiculars

Breadth

32,28 m

Draught

Summer: 13,01 m

Moulded L x B x D

195,00 x 32,24 x 18,60 m

Registered L x B x D

195,39 x 32,24 x 18,60 m

Keel to mast end

46,70 m

Freeboard

Summer: 5.640 mm

Depth

18,60 m

Speed

Max 15,9 knots

Service: 14,5 knots

Built

2012

Keel laid

07/12/2010

Launch date

19/19/2011

Date of completion

10/01/2012

Builder

Shin Kasado Dockyard Co., Ltd.

Kudamatsu

Japan

Yard number

S-K030

Hull material

Steel

Hull type

Single hull

Main engine

1x Mitsui/MAN-B&W 6S50MC-C8 - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 8.450 kW / 11.489 hp at 108,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 500 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,80 MPa

Evaporation: 2,10 (ton/h)

Manufacturer: Miura Co., Ltd.

Generators

4x Generatorsets total 1.956 kVA

Number of holds

5

Cargo hold capacity

Grain: 77.674 m³

Bale: 73.552 m³

Number of hatches

5

Tank capacities

Ballast: 18.074 m³

Fuel oil: 2.565 m³

Fresh water: 669 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Commercial manager

ABO Singapore Pte Ltd.

21-00, 3, Temasek Avenue

Singapore 039190

Republic of Singapore

ISM manager

Ansei Maritime Pte Ltd.

07-10, ARC, 380, Jalan Besar

Singapore 209000

Republic of Singapore

Operator

Ultrabulk A/S

Smakkedalen 6

Gentofte 2820

Denmark

Registered owner

ABO Singapore Pte Ltd.

21-00, 3, Temasek Avenue

Singapore 039190

Republic of Singapore

Latest data adjustment

03 August 2022
