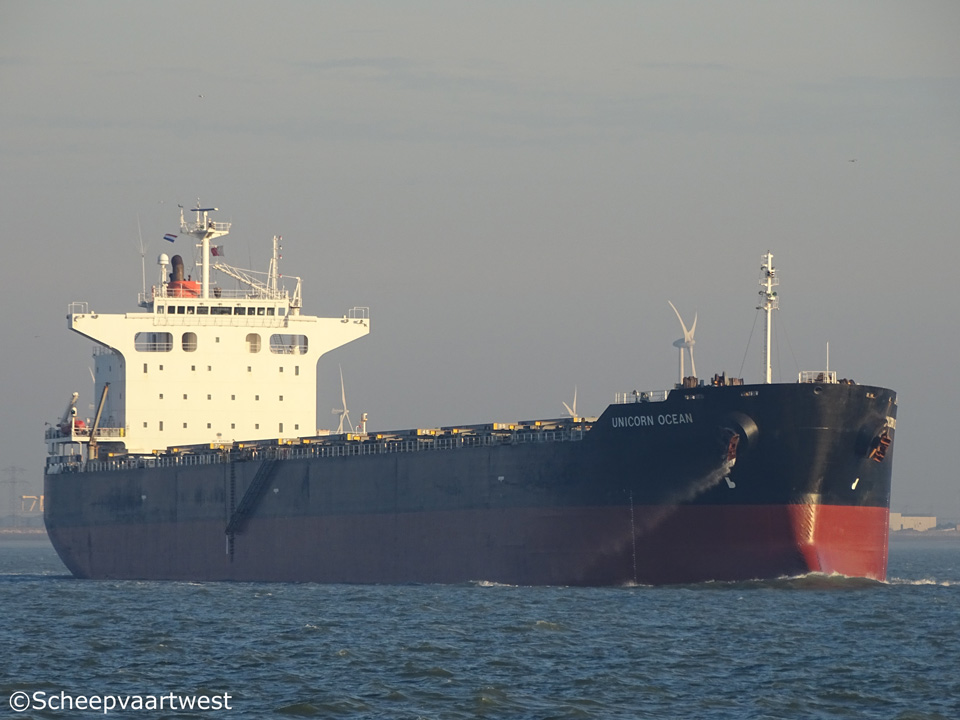

Unicorn Ocean 01

Westerschelde 08 December 2016



Name

UNICORN OCEAN

Type

Bulk carrier- Panamax - Strengthened for heavy cargo loading

IMO-number

9370197

Call sign

3EPO5

Flag

Republic of Panama

Port of registry

Panama City

GT

41.662 t registered

DWT

Summer: 78.888 t

NT

25.647 t registered

Length

225,00 m overall

Breadth

32,24 m moulded

Draught

Summer: 14.38 m

Moulded L x B x D

219,00 x 32,24 x 19,90 m

Registered L x B x D

219,48 x 32,24 x 19,90 m

Freeboard

Summer: 5.576 mm

Depth

19,90 m moulded

Speed

Max.: 16,1 knots

Service: 14,5 knots

Built

2008

Keel laid

27.09.2007

Launch date

19.01.2008

Date of completion

13.03.2008

Builder

Sanoyas Hishino Meisho Corporation
Kurashiki
Japan

Yard number

1266

Hull material

Steel

Main engine

1x Mitsui/MAN B&W 7S50 MC-C - 2 stroke single acting 7 cylinder 500 x 2.000 mm diesel engine 9.560 kW / 13.000 hp at 110,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 500 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 1,40 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators - 1.675 kVA

Number of holds

7

Cargo hold capacity

Grain: 91.188 m³

Tank capacities

Fuel oil: 2.749 m³

Fresh water: 989 m³

Manager

Toyo Kaiun Co.,Ltd.

Japan

Operator

Ultrabulk Shipping A/S, Denmark (Head Office)
Smakkedalen 6
2820 Gentofte
Denmark

Registered owner

Takanawa Line Inc.
Care of Toyo Kaiun Co Ltd
1705-1, Namikata, Namikata-cho, Imabari-shi, Ehime-ken, 799-2101 Japan

Latest data adjustment

31 December 2016
