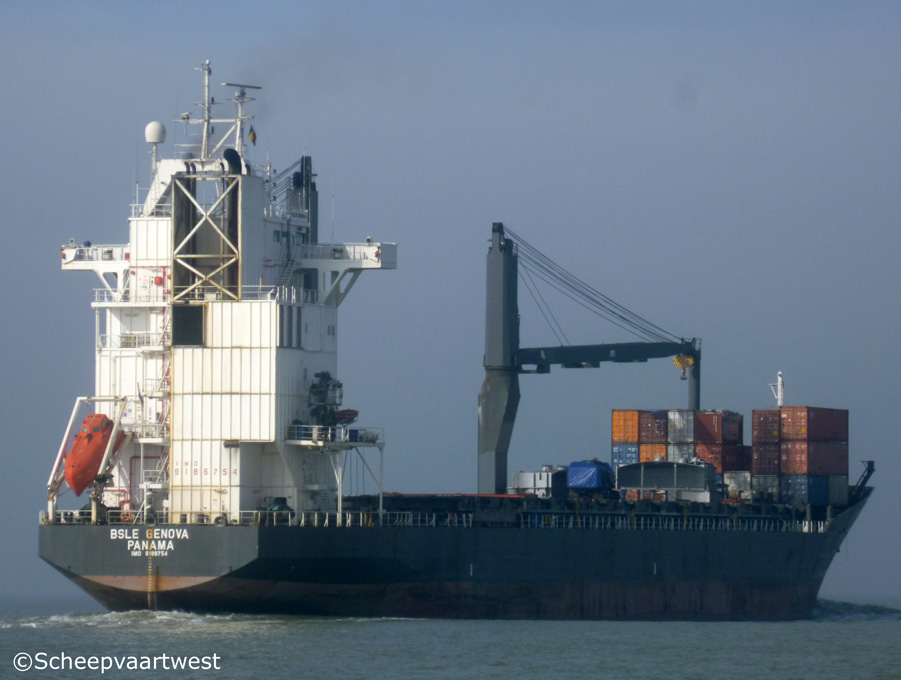

BSLE Genova 01

Westerschelde 08 March 2014



Name

BSLE GENOVA

Previous names

1999 - 03.2000 Georg Oldendorff

03.2000 - 06.2000 CSAV Estambul

06.2000 - 03.2002 Libra Equador

03.2002 - 11.2003 Georg Oldendorff

11.2003 - 11.2006 MSC Maracaibo

11.2006 - 09.2009 Niledutch Prestige

09.2009 - 06.2013 Marcherokee

Type

Multi-purpose dry cargo ship - strengthened for heavy cargo - Equipped for containers, flexible twin-deck - Open hatch box shaped with pontoon tweendecks

IMO-number

9186754

Call sign

3FDA

Flag

Republic of Panama

Port of registry

Panama City

GT

13.066 t

Panama: 11.690 t

Suez: 13.471,54 t

DWT

Summer: 20.501 t

NT

6.914 t

Panama: 10.975 t

Suez: 12.956,09 t

Light ship

5.243 t

Displacement

Summer: 25.743 t

Number of 20ft containers

In holds: 546

On deck: 754

Total: 1.300

Number of 40ft containers

637 + 26 TEU

Reefer capacity

63

Length

153,22 m overall

145,75 m between perpendiculars

Breadth

23,60 m extreme

Draught

9,74 m

Air draft

45,20 m

Depth

13,50 m moulded to main deck

Speed

15,0 knots

Built

1999

Launch date

12.1998

Date of completion

03.1999

Builder

Flensburger Schiffbau Gesellschaft MbH &Co. KG
Flensburg
Germany

Yard number

703

Hull material

Steel

Main engine

1x Mitsubishi 6UEC50LSII - 2 stroke single acting 6 cylinder diesel engine 8.250 kW / 11.059 hp at 124,0 rpm

Propellers

1

Number of holds

5

Hold 1: 14,04 x 8,00/13,00 m

Hold 2: 12,48 x 15,60 m

Hold 3-5: 24,96 x 20,60 m

Cargo hold capacity

Grain: 24.928 m³

Bale: 24.365 m³

Hatch covers

16 weather tight lift-away MacGregor pontoon type hatch covers

Ventilation

6x Air changes/h

Tank capacities

Heavy fuel oil: 1.065,5 m³

Marine diesel oil: 115,9 m³

Lub oil: 131,4 m³

Fresh water: 84,0 m³

Water ballast: 6.127,2 m³

Max. permitted loads

Tanktop: 21,0 t/m²

Deck: 3,0 t/m²

Hatch covers: 2,0 t/m²

Cargo gear

2x MacGregor Hagglund electro-hydraulic high speed cranes - SWL 60 t each

32 t at max 36,00 m

40 t at max 32,00 m

50 t at max 22,00-26,00 m

60 t at max 21,00 m combinable to up to 120 t

Manager

BNAVI Shipmanagement S.r.l.
5403 Marina Di Carrara
Italy

Operator

BSLE Italia S.r.l.
Genua
Italy

Owner

Vittorio Bogazzi & Figli S.p.A.

Via Cadorna 49/A
5403 Marina Di Carrara
Italy

Latest data adjustment

16 January 2015
