Antwerpen 09 May 2014 |
|
Name |

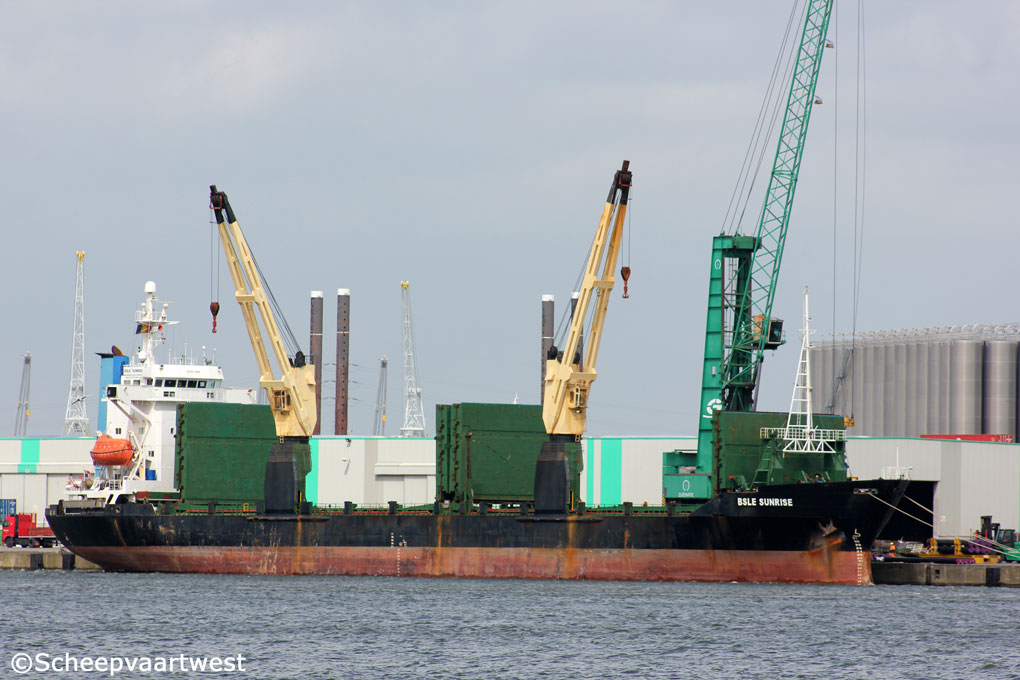

BSLE SUNRISE |
|
Previous names |
1992 - 07.1994 Socol 7 - Republic of Panama - Aurora Navigation S. A. 1994 - 03.1995 Fas Bombay 1995 - 04.1998 Nahoon 1998 - 08.1999 CMBT Pangani - Compagnie Maritime Belge Transports 1999 - 02.2000 Socol 7 - Compagnie Maritime Belge Transports 02.2000 - 11.2000 Capitaine D' Urville - Sofrana Uniline Joint Service 11.2000 - 03.2001 Socol 7 2001 - 08.2003 Global Mombassa - Global Container Lines 2003 - 09.2007 Socol 7 - Republic of Singapore - Navalmar Ltd. 2007 - 01.2009 Tiguillio Star 2009 - 07.2011 Nardana Freja - Nordana Line |
|
Type |
Multi-purpose vessel with strengthened for heavy cargoes, container cargo in hold and upper deck hatch covers |
|
IMO-number |
9017628 |
|
Classification |
Registro Italiano Navale |
|
Call sign |
3EZY9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
5.988 t registered Panama: 6.375,94 Suez: 6.278,01 t |
|
DWT |
Summer: 9.742 t |
|
NT |
3.602 t registered Panama: 5.086,64 t Suez: 5.238,15 t |
|
Number of 20ft containers |
In hold: 234 On deck: 266 Total: 500 |
|
Reefer containers |
76 |
|
Length |
113,12 m overall 106,00 m between perpendiculars |
|
Breadth |
18,90 m |
|
Draught |
5,00 m |
|
Depth |
8,54 m moulded |
|
Speed |
13,0 knots |
|
Built |
1992 |
|
Date of completion |
17.01.1992 |
|
Builder |
Miho Shipyard K.K. Shizuoka |
|
Yard number |
1403 |
|
Hull material |
Steel |
|
Main engine |
1x Hanshin 6LF58 diesel engine - 6.000 bhp at 180 rpm |
|
Propellers |
1 |
|
Number of holds |
1 Dimensions: Lower hold: 73,50 x 15,70 x 4.10 m Tweendeck: 75,20 x 18,40 x 5.92 m |
|
Number of hatches |
2 Dimensions: Hatch 1: 33,60 x 15,70 m Hatch 2: 35,70 x 15,70 m |
|
Type of hatch covers |
Weather and tweendeck: Driven by external hydraulic cylinder / TD open by Ship’s crane with wire rope |
|
Max. permitted loads |
Tanktop: 20,00 t/m² Tweendeck: 3,70 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Fuel oil: 594,38 m³ (96%) Diesel oil: 118,06 m³ (96%) Fresh water: 178 m³ Ballast water: 2.076 m³ |
|
Cargo gear |
2x Cranes - SWL 50,0 t each, combinable up to 100 t lift |
|
Manager |
BNAVI Shipmanagement Via Zaccagna, 6 Marina Di Carrara |
|
Owner |
Navalmar Uk |
|
Latest data adjustment |
01 July 2014 |
