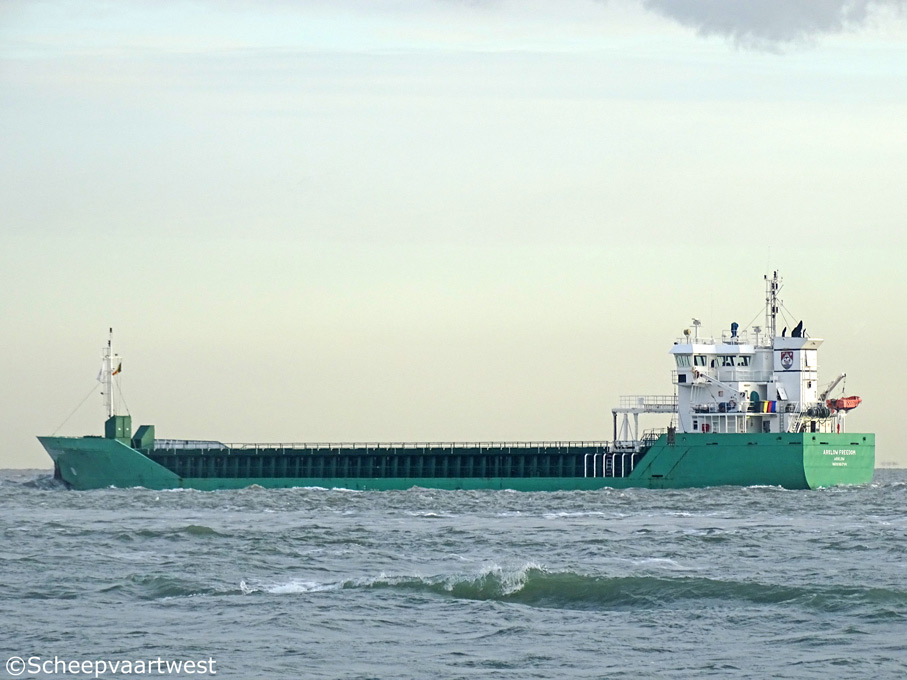

Westerschelde 23 November 2015 |
|
Name |
ARKLOW FREEDOM |
|
Type |
General cargo ship - Heavy cargo - Container ship |
|
IMO-number |
9361756 |
|
Call sign |
EIEX9 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.998 t |
|
DWT |
Summer: 4.853 t |
|
DWCC |
4.600 t |
|
NT |
1.673 t |
|
Displacement |
6.479 t |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,40 m moulded |
|
Draught |
Summer: 6,28 m loaded |
|
Air draft |
Min.: 21,70 m |
|
Freeboard |
1.534 mm |
|
Depth |
7,35 m moulded |
|
Speed |
11,5 knots |
|
Built |
2008 |
|
Date of completion |
28/03/2008 |
|
Builder |
Astilleros De Murueta S.A. Guernica Spain |
|
Yard number |
265 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
4 |
|
Movable bulkhead |
2x Portable bulkheads may be placed in 10 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25- 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 158 rpm |
|
Boilers |
1x CHO Viessmann - 4,0 bar |
|
Shaft generator |
1x Stamford HCM534C2 - 390 kVA - 312 kW |
|
Generators |
2x Guascor SH74TAB-SG diesel engines each 175 kW coupled with Stamford HCM434C2 each 190 kVA |
|
Emergency generator |
1x Guascor H33TSG diesel engine 50 kW connected with Stamford UCM224G2 generator 60 kVA |
|
Bow thruster |
1x Electric bow thruster 250 kW |
|
Number of holds |
1x Fully boxed 63,00 x 11,70 x 8,41 m |
|
Total capacity of holds |
6.056 m³ / 213.855 ft³ |
|
Number of hatches |
1 63,00 x 11,70 m |
|
Hatch type |
Roden Steel pontoon system |
|
Max. permitted loads |
Tank top: 15,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Fuel oil: 182 t Ballast: 2.030 t Gas oil: 37 t fresh water: 46,8 t Lub oil: 12,1 t |
|
Manager |
Arklow Shipping ULC North Quay, Arklow, Co Wicklow Ireland |
|
Registered owner |
Invermore Shipping Ltd. Care of Arklow Shipping Unlimited Co (Arklow Shipping ULC) North Quay, Arklow, Co Wicklow Ireland. |
|
Renamed |
05/2022 Hav Brim Faeroe Islands; Runavik - Call sign: OZ2206 Manager: Navigare Shipping - Faeroe Islands Owner: Navigare Shipping Sp/f |
|
Latest data adjustment |
16 July 2022 |
