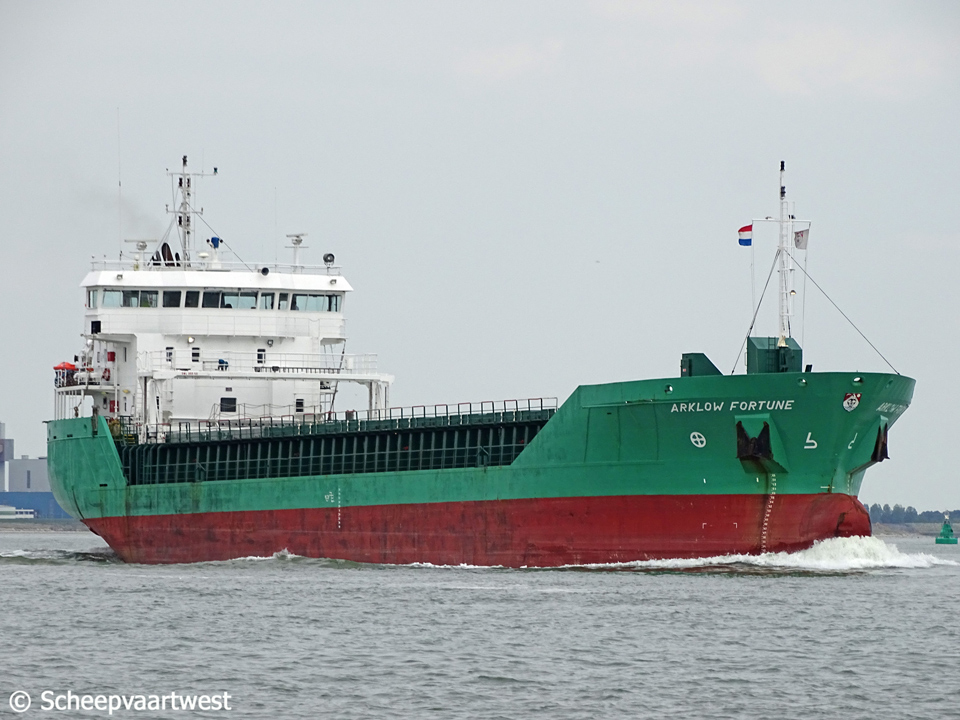

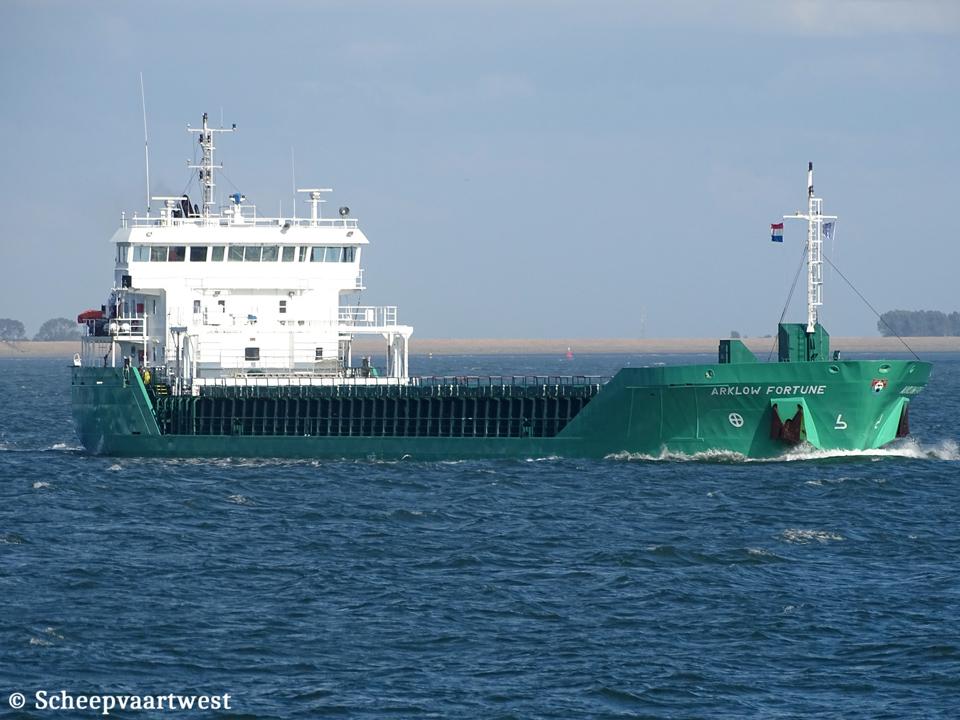

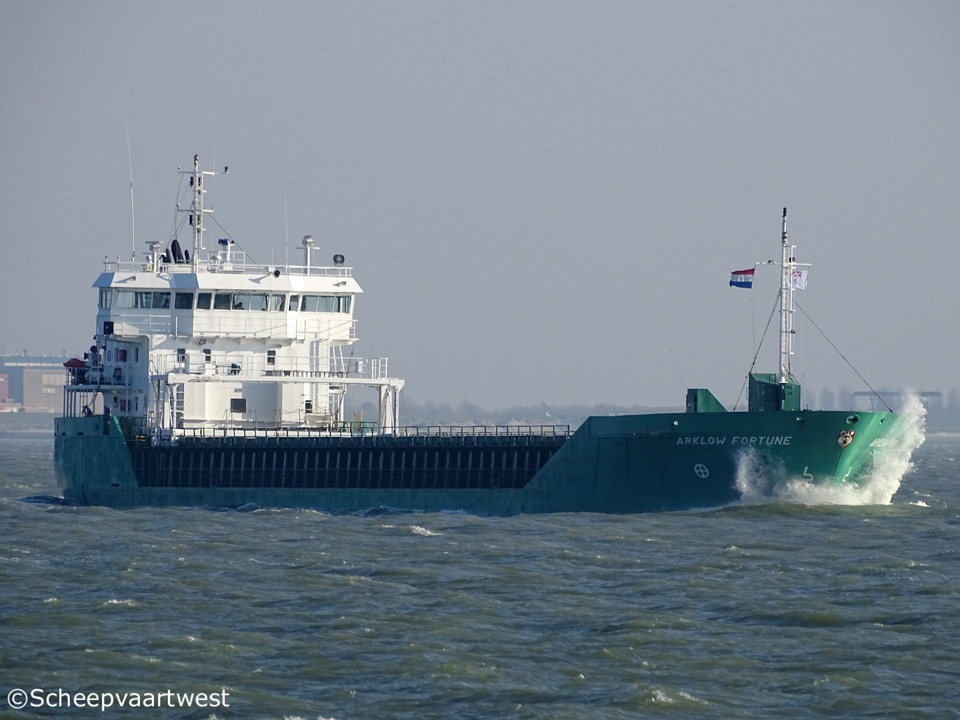

Arklow Fortune - IMO 9361744

Westerschelde 20 July 2019

Name

ARKLOW FORTUNE

Type

General cargo ship - Heavycargo

IMO-number

9361744

Call sign

EIFZ

Flag

Ireland

Port of registry

Arklow

GT

2.998 t

DWT

Summer: 4.889 t

NT

1.673 t

Length

89,95 m overall

84,98 m between perpendiculars

Breadth

14,40 m moulded

Draught

Summer: 6,27 m

Air draft

Min: 21,70 m

Freeboard

1.088 mm

Depth

7,35 m moulded

Speed

11,5 knots

Built

2007

Date of completion

26/03/2007

Builder

Astilleros De Murueta S.A.

Guernica

Spain

Yard number

264

Hull material

Steel

Hull type

Single hull

Movable bulkheads

2x May be placed in 10 positions for cargo separation

Continuous decks

1

Main engine

1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 m combustion engine 1.980 kW / 2.690 hp at 750 rpm

Built: 2005

Manufacturer: MaK Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 158 rpm

Boilers

1x CHO Viessmann 8,47 m² - 4,0 bar

Electric installations

Power Voltage: 400 V

Lighting Voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x Stamford HCM534C2 generator 390 kVA - 312 kW

Generators

2x Guascor SH74TAB-SG diesel engines each 175 kW connected with Stamford HCM434C2 generators each 190 kVA at 1.500 rpm

Emergency generator

1x Guascor H33TSG diesel engines 50 kW connected with Stamford UCM224G2 generator 60 kVA at 1.500 rpm

Bow thruster

1x 250 kW

Cargo hold capacity

Grain / Bale:

213.855,53 ft³ / 6.056 m³ incl. bulkheads

214.491,16 ft³ / 6.074 m³ excl. bulkheads

Hatch type

Roden Staal pontoon system

Max permitted loads

Hatch cover: 1,75 t/m²

Tanktop: 15,0 t/m²

Tank capacities

HFO: 183,3 m³

Gas oil: 37 t

Ballast: 2.030 t

Fresh water: 46,8 t

Lub oil: 12,1 m³

Crew size

10

Manager

Arklow Shipping Unlimited Co.

Wicklow

Ireland

Registered owner

Invermore Shipping Ltd.

Ireland

Latest data adjustment

03 January 2021
