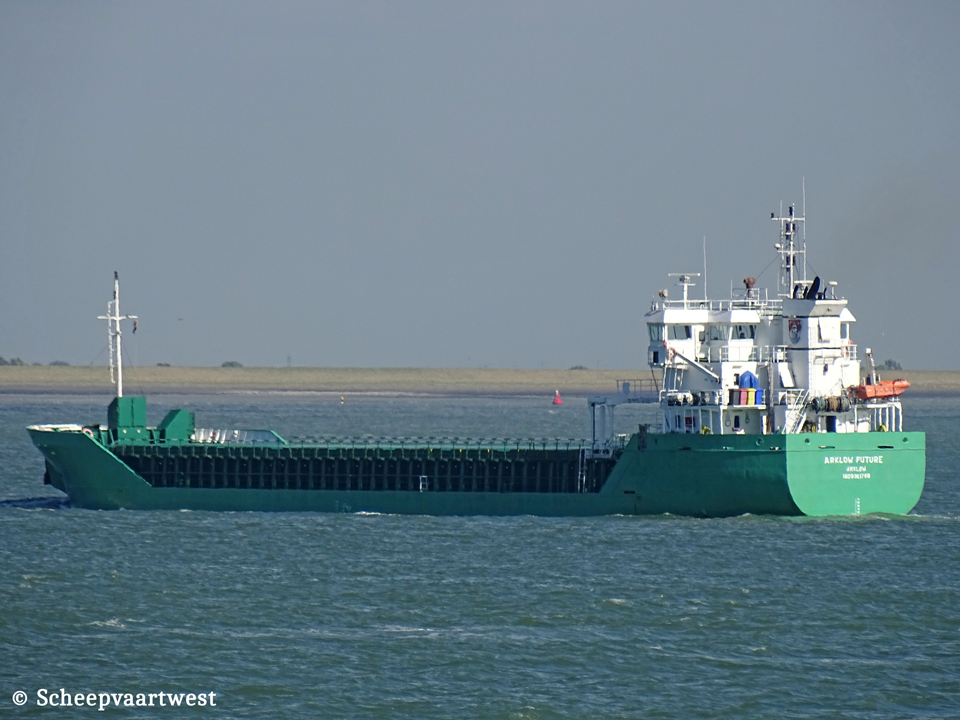

| Westerschelde 12 August 2016 |
|
Name |
ARKLOW FUTURE |
|
Type |
General dry cargo vessel - heavycargo - Container ship |
|
IMO-number |
9361768 |
|
Call sign |
EIGD5 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.998 t |
|
DWT |
4.918 t |
|
NT |
1.673 t |
|
Displacement |
6.479 t |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,40 m moulded 14,50 m extreme |
|
Draught |
Summer: 6,28 m laden |
|
Air draft |
Min. 21,70 m |
|
Freeboard |
1.088 mm |
|
Depth |
7,35 m moulded |
|
Speed |
11,5 knots |
|
Built |
2008 |
|
Keel laid |
07/07/2007 |
|
Launch date |
06/01/2008 |
|
Date of completion |
24/07/2008 |
|
Builder |
Astilleros De Murueta S.A. Guernica Spain |
|
Yard number |
266 |
|
Hull material |
Steel |
|
Watertight compartments |
4 |
|
Movable bulkheads |
2x Portable bulkheads may be placed in 10 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4stroke 6cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 rpm Build: 12/07/2007 Builder: Caterpillar Motoren GmbH & Co. KG; Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 158,0 rpm |
|
Boilers |
1x CHO Viessmann 6;90 m² - 4,0 bar |
|
Shaft generator |
1x Stamford HCM534C2 generator |
|
Generators |
2x Guascor SH74TAB-SG diesel engines each 175 kW connected with Stamford HCM434C2 generators each 190 kVA at 1.500 rpm |
|
Emergency generator |
1x Guascor H33TSG diesel engine 50 kW connected with Stamford UCM224G2 generator 60 kVA at 1.500 rpm |
|
Bow thruster |
1x Electric bow thruster 250 kW |
|
Number of holds |
1 |
|
Cargo hold capacity |
Grain/bale: 6.056 m³ / 213.855,53 ft³ incl. Bulkheads 6.074 m³ / 241.491,16 ft³ excl. bulkheads |
|
Number of hatches |
1 |
|
Hatch type |
Roden Staal pontoon system |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatches: 1,75 t/m² |
|
Tank capacities |
HFO: 182 t GO: 37 t Fresh water: 46,8 t Lub oil: 12,1 t Ballast: 2.030 t |
|
Crew size |
10 |
|
Ism & commercial manager |
Arklow Shipping ULC North Quay, Arklow, Co Wicklow Ireland |
|
Registered owner |
Invermore Shipping Ltd. Care of Arklow Shipping Unlimited Co (Arklow Shipping ULC) North Quay, Arklow, Co Wicklow Ireland |
|
Renamed |
2022 Hav Sunday Faeroe Islands, Runavik - Call sign: OZ2207 Owner: Navigare Shipping SP/F, Soldarfjordur - Faeroe Islands |
|
Latest data adjustment |
13 March 2023 |
