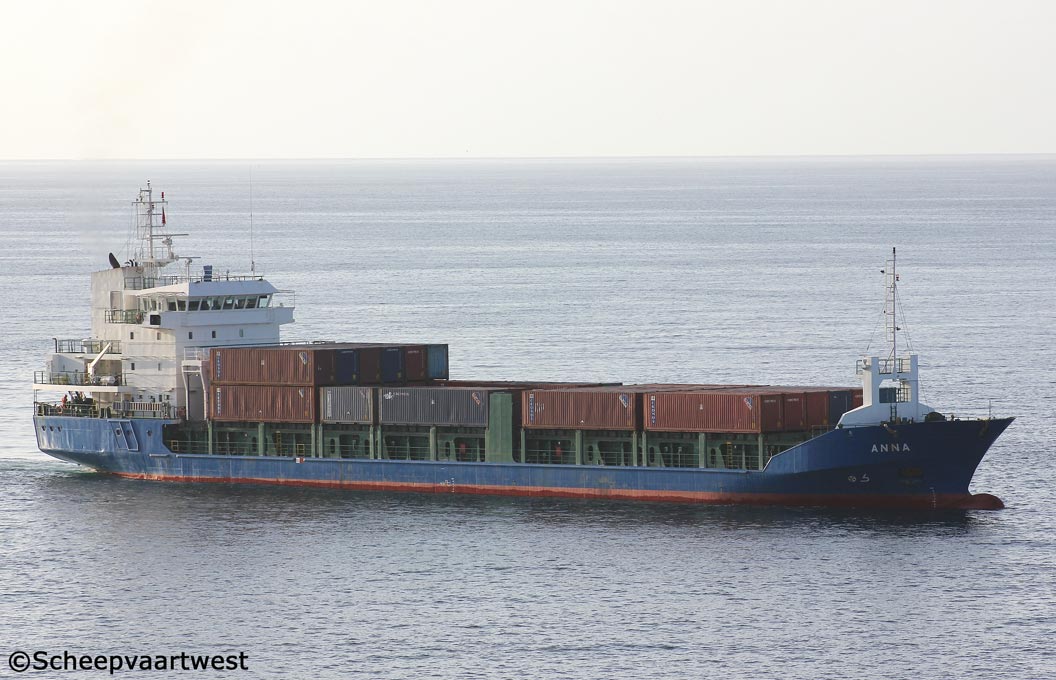

Anna 01

Ponta Delgada - Azores 11 June 2015

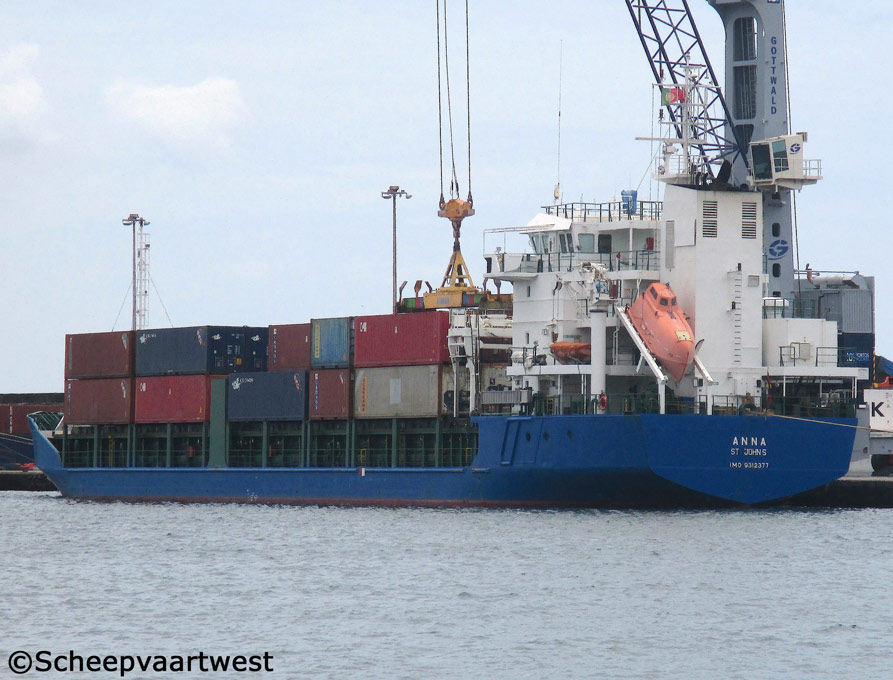

Anna 02
12/06/15



Name

ANNA

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9312377

Call sign

V2CY3

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

3.618 t

DWT

Summer: 4.811 t

NT

1.783 t

Number of 20ft containers

267

Length

100,63 m overall

95,39 m registered

Breadth

15,20 m registered

Draught

5,62 m

Depth

7,30 m moulded

Speed

12,0 knots

Built

2005

Keel laid

20.08.2004

Launch date

08.03.2005

Date of completion

04.05.2005

Builder

Rousse Industry A.D.
5, Matei Stoikov Street
7000 Ruse
Bulgaria

Yard number

871

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm diesel engine - 2.400 kW at 750 rpm

Year of manufacture: 2004

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 185 rpm

Boilers

1x Water heater, oil fired - 5,0 bar

Heating surface: 13,0 m²

Year of Manufacture: 2004

Manufacturer: A.C.V. Nederland B.V.
Kaartenmakerstraat 5
2984 CB Ridderkerk
The Netherlands

1x Water heater, exhaust gas heated - 6,0 bar

Heating surface: 53,0 m²

Year of Manufacture: 2004

Manufacturer: MP Rohrverformungstechnik GmbH
Kirchstr. 15
57629 Norken
Federal Republic of Germany

Electric installations

2x Plants each 380/220 V - 270 kVA

1x Plant 380 V - 550 kVA

1x Plant 380 V - 88 kVA

3x Plants each 24 V - 145 Ah

2x Plants each 24 V - 160 Ah

Shaft generator

1x 550 kVA

Generators

2x Main diesel generatorsets each 270 kVA

Emergency & harbour gen.

88 kVA

Batteries

2x Batteries for automation each 160 Ah

Compressed air receivers

2x Receivers each 250 litres - 30 bar

1x Receiver 125 litres - 30 bar

1x Receiver 30 litres - 30 bar

1x Receiver 10 litres - 30 bar

Bow thruster

1x Transverse thruster 220 kW, forward

Hold capacity

Grain: 6.457 m³

Anchor equipment

3x Anchors weight each 2.460 kg

Chain Length: 467,50 m

Crew

9

Manager

Schiffahrtskontor Baltik GmbH & Co. KG
Lange Str. 1a
18055 Rostock
Federal Republic of Germany

Registered owner

MS "ANNA" Schiffahrtsgesellschaft mbH & Co. KG
Haus Auckland Hafenstr. 6b
26789 Leer
Federal Republic of Germany

Latest data adjustment

13 July 2015
