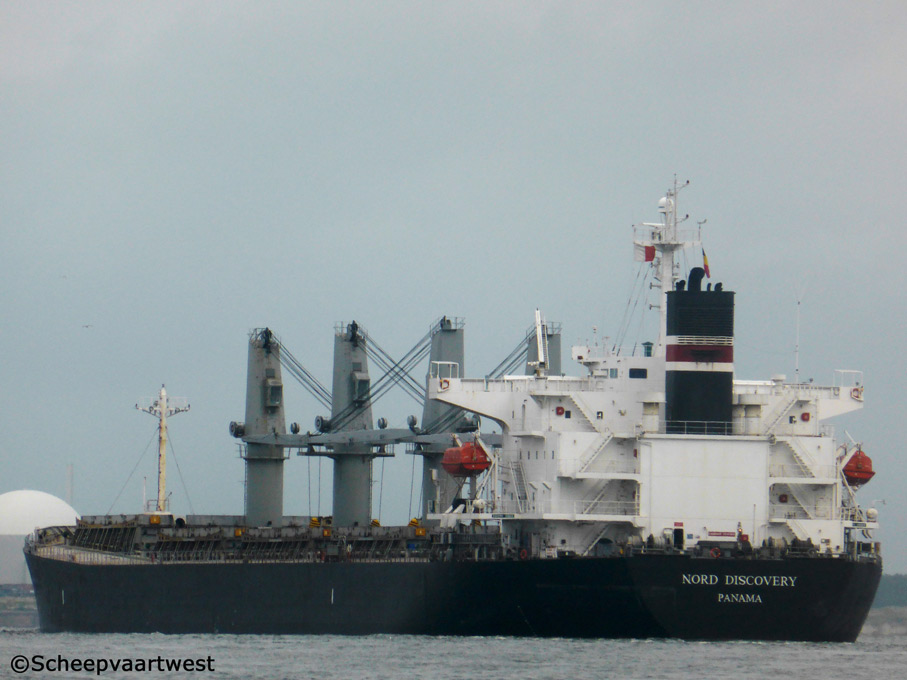

Westerschelde 19 June 2014 |
|
Name |
NORD DISCOVERY |
|
Type |
Bulk carrier - Strengthened for heavy cargo |
|
IMO-number |
9309643 |
|
Call sign |
3EGP |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
30.027 t |
|
DWT |
52.454 t |
|
NT |
17.843 t |
|
Length |
182,87 m |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,02 m |
|
Moulded L x B x D |
182,87 x 32,26 x 17,00 m |
|
Registered L x B x D |
182,87 x 32,26 x 17,00 m |
|
Freeboard |
5.024 mm |
|
Depth |
17,00 m moulded |
|
Speed |
14,8 knots |
|
Built |
2006 |
|
Keel laid |
15.07.2004 |
|
Launch date |
10.07.2006 |
|
Date of completion |
29.09.2006 |
|
Builder |
Tsuneishi Heavy Industries (CEBU), Inc. |
|
Yard number |
SC061 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W-Mitsui 6S50MC - 2 stroke single acting 6 cylinder 500 x 1.910 mm diesel engine - 7.800 kW / 10.598 hp at 116,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Lubrication shaft without monitoring device Diameter: 520 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 1.95 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generators - 1.750 kVA |
|
Cargo hold capacity |
Bales: 65.600 m³ Grain: 67.756 m³ |
|
Tank capacities |
Fuel oil: 2.570 m³ fresh water: 409 m³ Water ballast: 15.407 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Crew |
25 |
|
Manager |
IMECS Co., Ltd. |
|
Registered owner |
I.M.S. Maritime S.A. |
|
Sister ships |
Jalma Topic - IMO 9309655 Furness Hartlepool - IMO 9309631 Ocean Breeze - IMO 9309667 |
|
Latest data adjustment |
04 February 2015 |
