| Westerschelde 03 September 2016 |
 |
|
| Westerschelde 03/09/16 | |
|
Name |

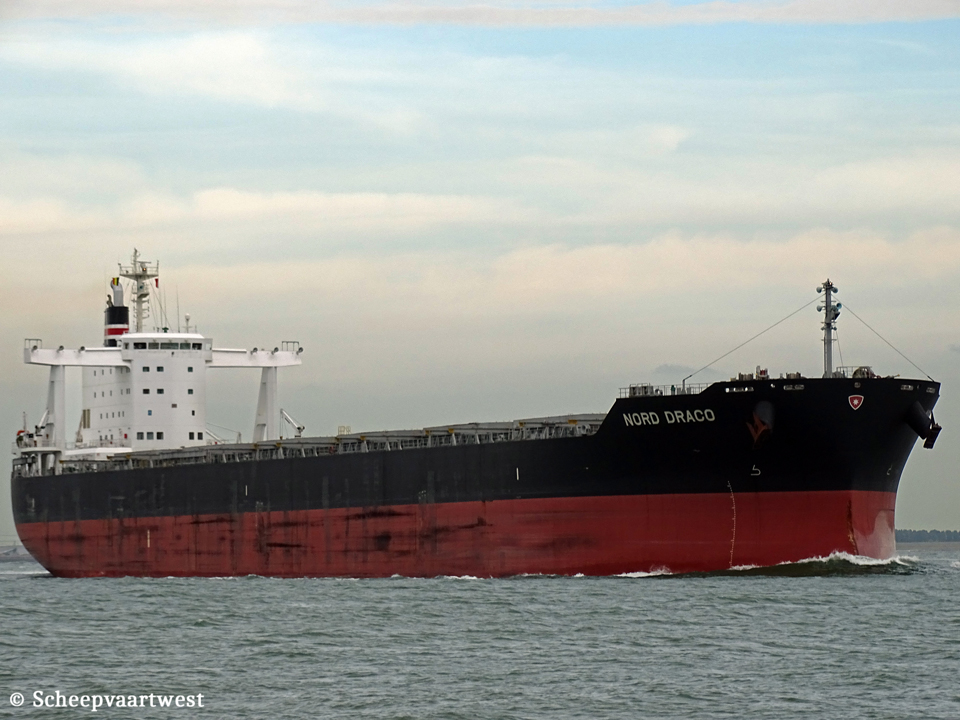

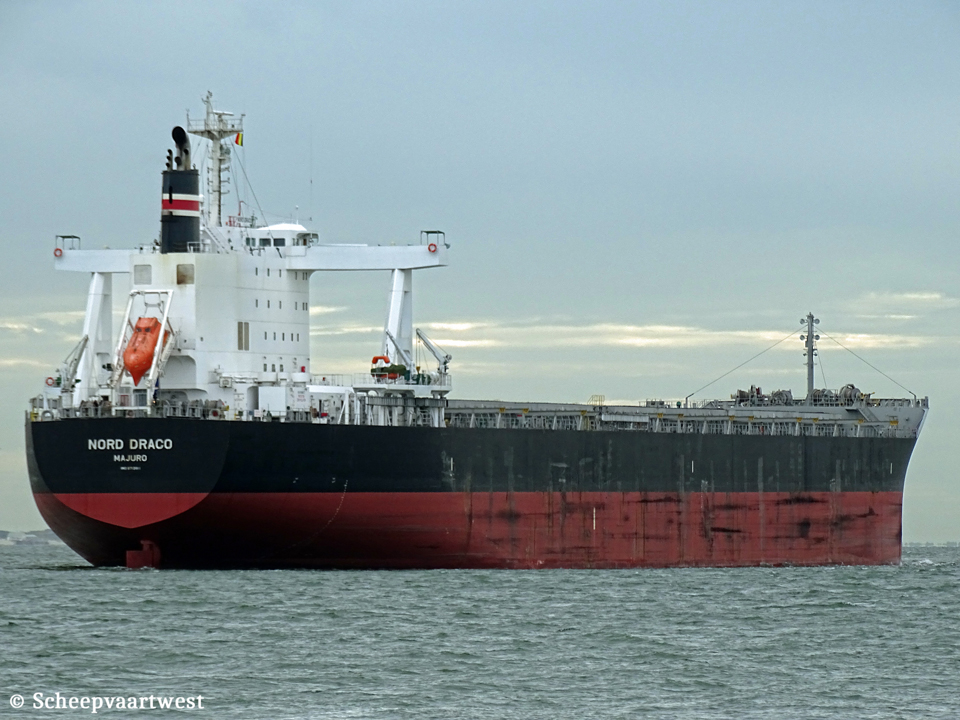

NORD DRACO |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading Panamax |
|
IMO-number |
9713911 |
|
Call sign |
V7IV3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GRT |
45.229 t |
|
DWT |
84.694 t |
|
NRT |
28.837 t |
|
Light displacement |
13.637 t |
|
Length |
228,95 m |
|
Breadth |
35,00 m |
|
Draught |
Summer: 14,46 m |
|
Moulded L x B x D |
223,00 x 35,00 x 19,90 m |
|
Registered L x B x D |
223,42 x 35,00 x 19,90 m |
|
Freeboard |
Summer: 5.480 mm |
|
Depth |
19,90 m |
|
Speed |
14,5 knots |
|
Built |
2014 |
|
Keel laid |
31/03/2014 |
|
Launch date |
04/10/2014 |
|
Date of completion |
02/12/2014 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Japan |
|
Yard number |
1682 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/ MAN-B&W 6S60MC-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 9.000 kW / 12.236 hp at 82,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 570 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,80 MPa Evaporation: 3,30 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Diesel generatorsets total 1.950 kVA |
|
Number of holds |
7 |
|
Cargo hold capacity |
Grain: 100.702 m³ |
|
Tank capacities |
Fuel oil: 3.141 m³ Fresh water: 384 m³ |
|
Manager |
Ehime Kaiun Co., Ltd. 1-2, Katahara-cho, Imabari Ehime Prefecture, 794-0013 Japan |
|
Registered owner |
Wisteria Line SA |
|
Latest data adjustment |
01 March 2024 |
