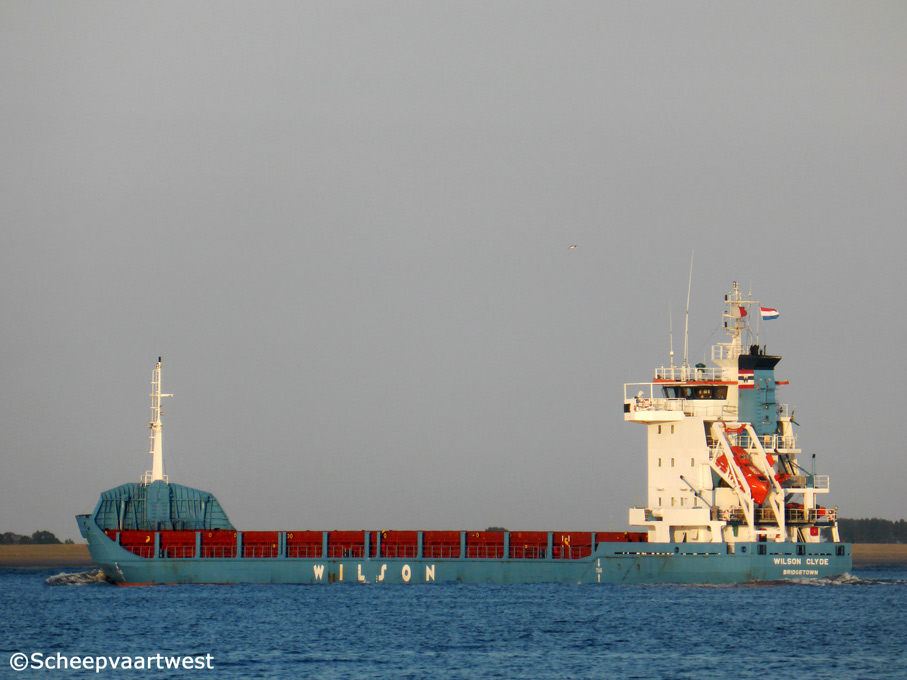

Westerschelde 23 June 2014 |
 |

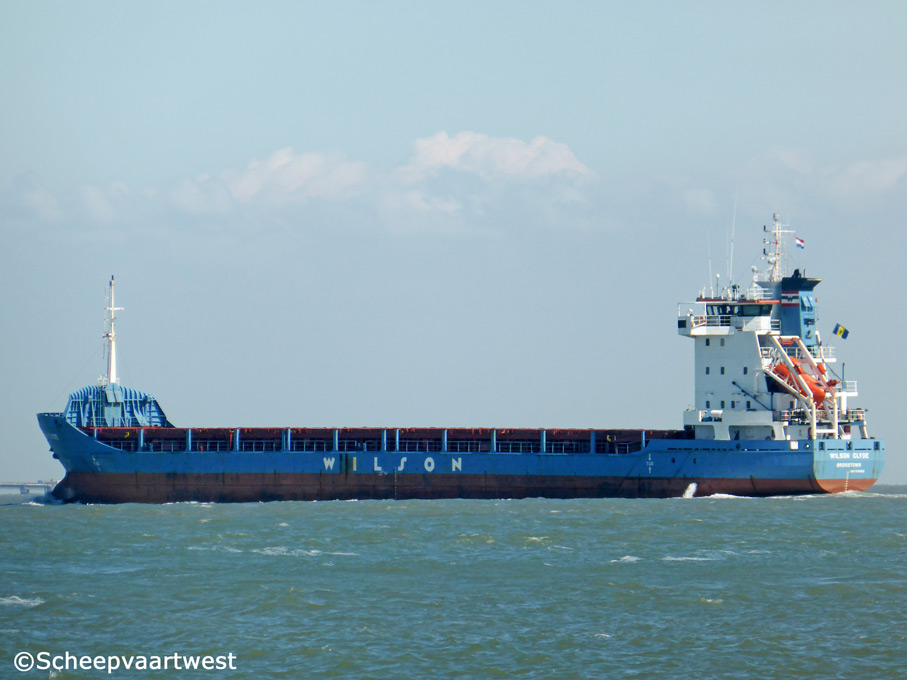

| Westerschelde 21/05/15 |
|
Name |
WILSON CLYDE |
|
Previous names |
1998 - 10.2001 Dutch trader 10.2001 - 11.2004 Admiral Sun |
|
Type |
General cargo ship with double hull - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9178458 |
|
Call sign |
8PRV |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
Previous flag |
1998 - 2004 The Netherlands |
|
GT |
2.997 t |
|
DWT |
Summer: 4.438 t Winter: 4.300 t |
|
NT |
1.741 t |
|
Number of 20ft containers |
In hold: 129 On deck: 168 Total: 297 |
|
Reefer capacity |
30 |
|
Length |
99,91 m overall 95,52 m between perpendiculars |
|
Breadth |
12,80 m moulded |
|
Draught |
Summer: 5,68 m Winter: 5,56 m |
|
Air draft |
Max.: 25,35 m |
|
Keel to top antenna |
24,00 m, forward 31,40 m, aft |
|
Depth |
7,55 m moulded |
|
Speed |
Service: 11,5 knots Max.: 13,0 knots |
|
Built |
1998 |
|
Keel laid |
08.08.1997 |
|
Launch date |
20.02.1998 |
|
Date of completion |
22.05.1998 |
|
Builder |
Slovenske Lodenice a.s. |
|
Yard number |
3008 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkhead |
2x Movable bulkheads, 5 positions each hatch |
|
Main engine |
1x Deutz MWM. TBD 645 L 6 - 4 stroke 6 cylinder diesel engine 2.550 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 800 kVA |
|
Generators |
2x Deutz MWM.TBD 234 V 8 main diesel generatorsets each 210 kVA |
|
Emergency generator |
1x F 6 L 912 diesel generatorset |
|
Bow thruster |
1x 250 kW, forward |
|
Number of hold |
1 Dimension: 69,86 x 10,20 x 8,01 m |
|
Cargo hold capacity |
Bale & grain: 5.841 m³ / 206.275 ft³ |
|
Number of hatches |
2 Hatch 1: 37,95 x 10,20 m Hatch 2: 31,20 x 10,20 m |
|
Hatch type |
MacGregor Folding type |
|
Max permissible load |
Deck/hatch cover: 1,70 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.704,60 m³ Fuel main engine: 172 m³ Fuel aux. Engine: 32,50 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
Crew |
8 |
|
Manager |
Wilson Shipmanagement AS |
|
Previous managers |
1998 - 2004 Rederij Wessels B.V. |
|
Operator |
Wilson |
|
Owner |
Wilson Shipowning AS |
|
Previous owners |
1998 - 2004 MS 'Dutch Trader' C.V. |
|
Latest data adjustment |
14 January 2015 |
