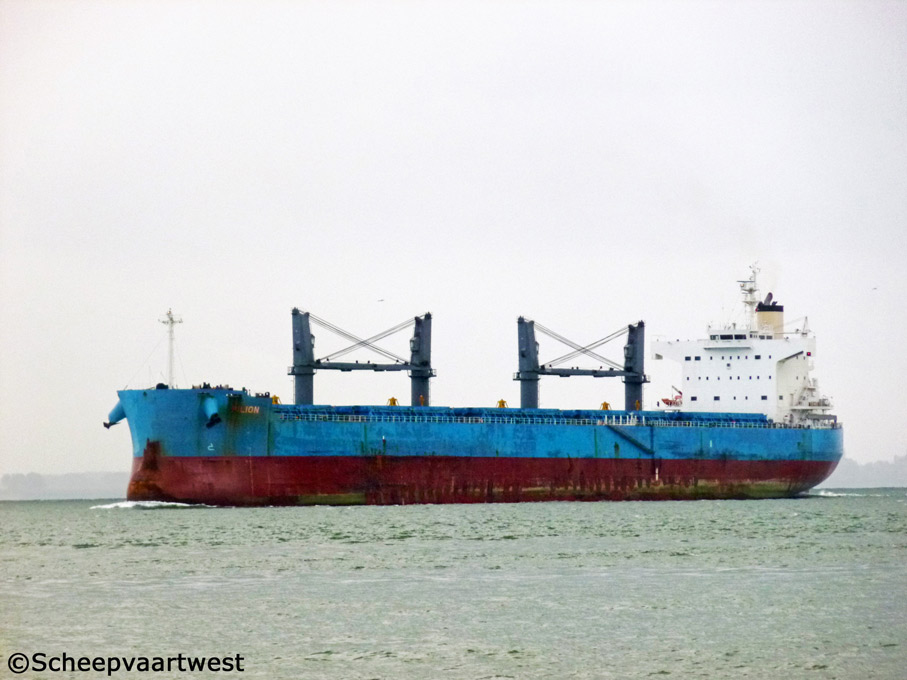

Pilion 01

Westerschelde 15 October 2013

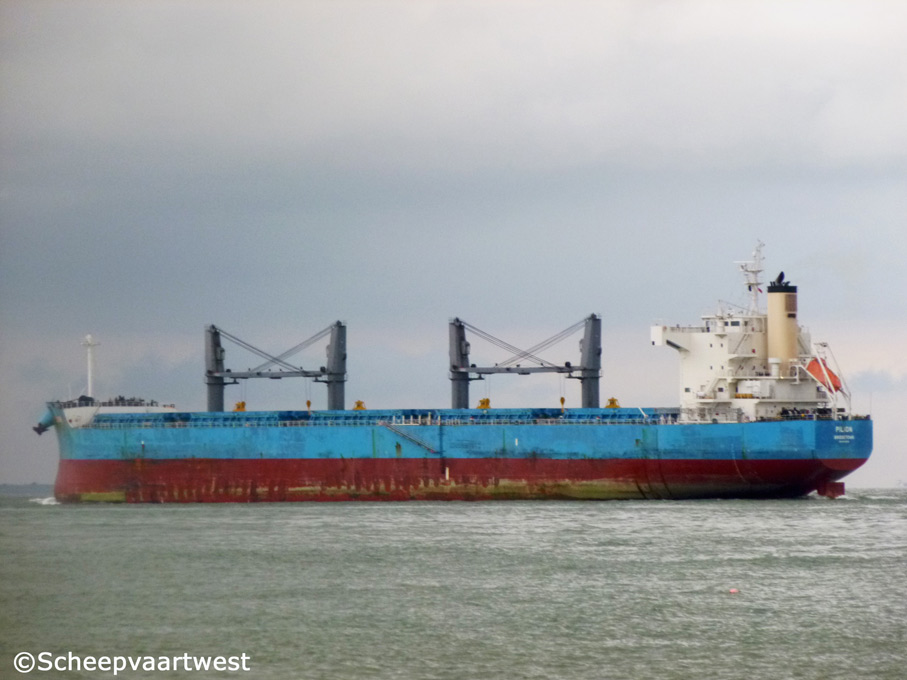

Pilion 02
Westerschelde 15/10/13



Name

PILION

Type

Bulk carrier

IMO-number

9425825

Call sign

8PWL

Flag

Barbados

Port of registry

Bridgetown

GT

32.210 t

DWT

Summer: 58.081 t

NT

19.405 t

Length

189,99 m overall

185,60 m between perpendiculars

Breadth

32,26 m

Draught

12,83 m

Freeboard

5.225 mm

Depth

18,00 m

Speed

Service: 14,5 knots

Max.: 15,5 knots

Built

2010

Keel laid

14.05.2010

Launch date

03.07.2010

Date of completion

28.08.2010

Builder

Tsuneishi Heavy Industries (Cebu), Inc.
Balamban
Philippines

Yard number

SC 116

Hull material

Mild steel

Watertight compartment

7

Continuous decks

1

Main engine

1x MAN-B&W/Mitsui 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 8.400 kW / 11.413 hp at 113,0 rpm

Builder: Mitsui Engineering & Shipbuilding Co., Ltd., Okayama - Japan

Propellers

1x Screw propeller solid - aft at 113 rpm

Boilers

1x CHM 3433KOB10 - 151,00 m² - 6,0 bar

Generators

3x Main diesel generatorsets each 600 kVA - 480 kW - 720 hp

Emergency generator

1x Diesel generatorset 100 kVA - 80 kW - 143 hp

Number of holds

5

Total capacity of holds

70.064,40 m³

Fuel capacity

2.389,3 m³

Manager

Helikon Shipping Enterprise
30 Minories
London
United KIngdom

Registered owner

Pilion Navigation S.A.

Latest data adjustment

26 October 2014
