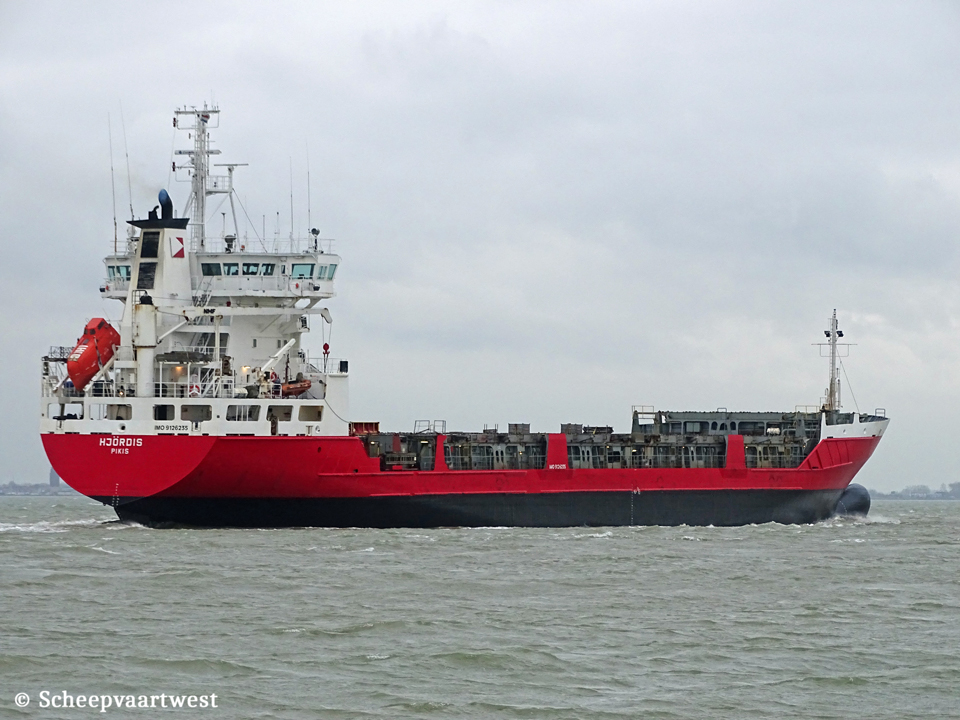

Westerschelde 01 July 2014 |
 |
 |
 |
 |
 |
||||

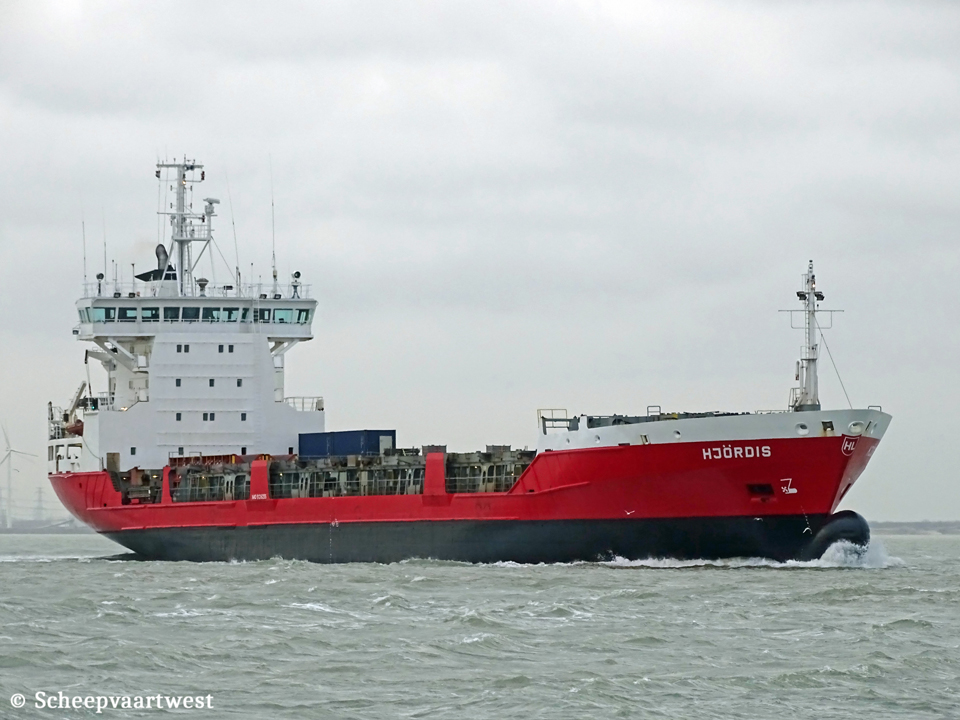

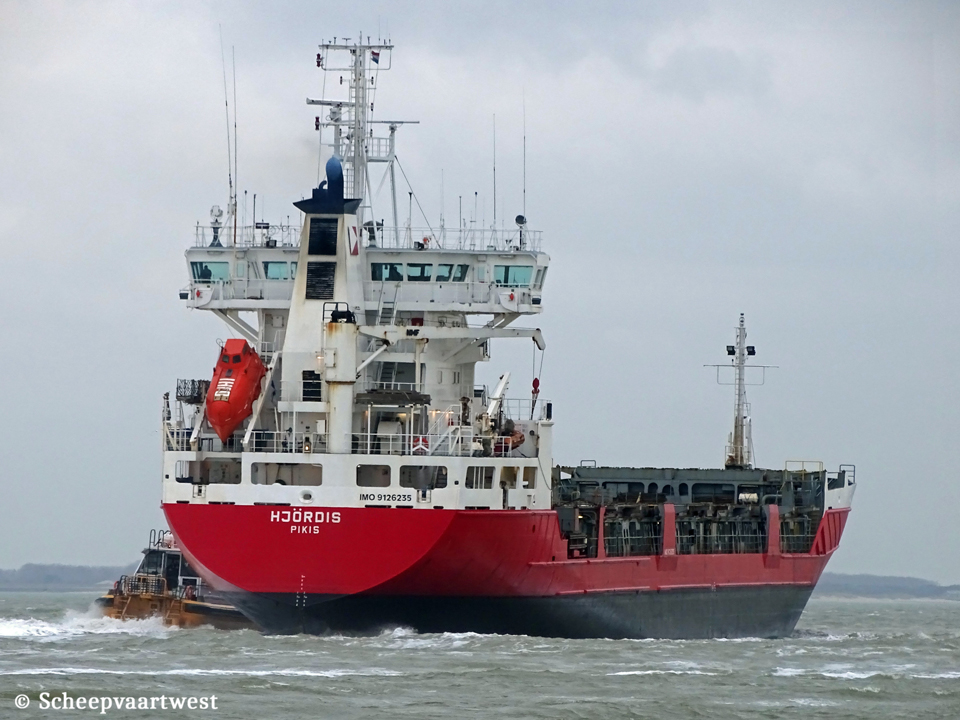

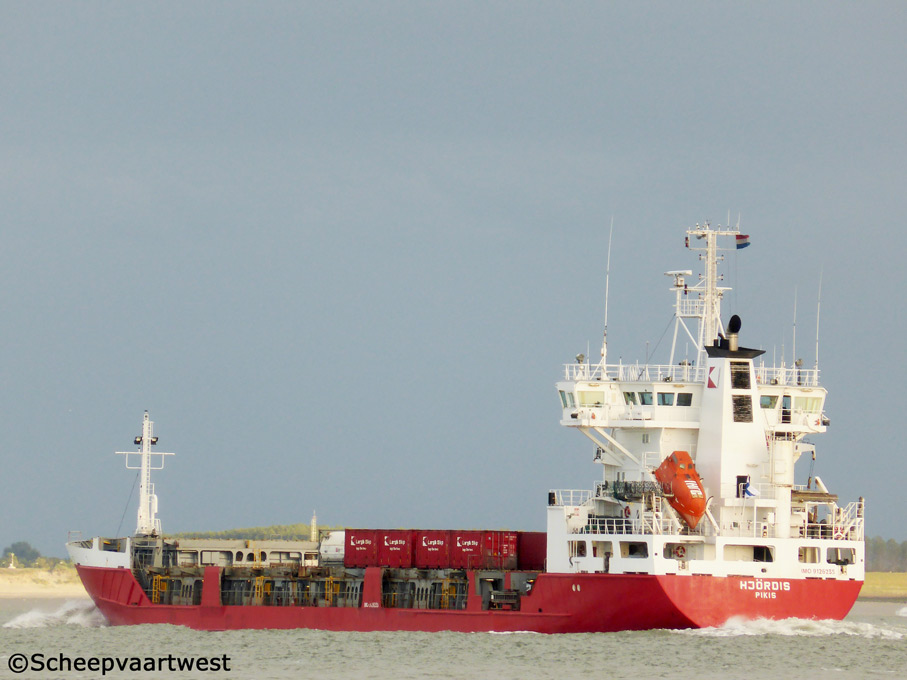

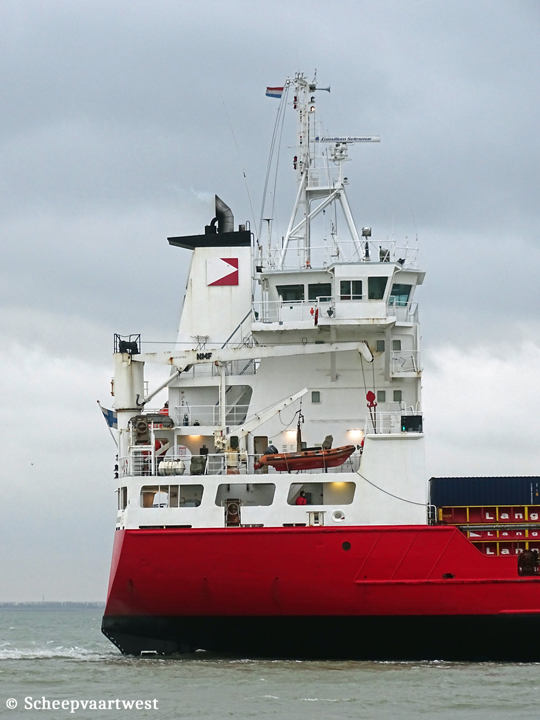

| Westerschelde 05/10/14 | Westerschelde 07/01/19 | Westerschelde 07/01/19 | Westerschelde 07/01/19 | WS 07/01/19 | ||||
|
Name |
HJÖRDIS |
|
Type |
General Cargo Ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9126235 |
|
Call sign |
OJHI |
|
Flag |
Finland |
|
Port of registry |
Pikis |
|
GT |
5.239 t |
|
DWT |
6.526 t |
|
NT |
2.625 t |
|
Number of 20ft containers |
On deck: 308 In hold: 158 Total: 466 |
|
Container capacity 14t |
320 |
|
Reefer plug |
40 |
|
Length |
119,85 m 111,58 m registered |
|
Breadth |
18,14 m overall 17,90 m registered |
|
Draught |
6,82 m |
|
Keel to mast end |
35,41 m |
|
Forecastle |
22,31 m |
|
Poop |
12,55 m |
|
Depth |
8,80 m moulded |
|
Speed |
Service: 16,0 knots Max.: 19,0 knots |
|
Built |
1996 |
|
Keel laid |
07/07/1994 |
|
Launch date |
09/09/1996 |
|
Date of completion |
10/1996 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1118 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 6L46B - 4 stroke 6 cylinder 460 x 580 mm combustion engine 5.850 kW / 7.953 hp at 500 rpm Year of manufacture: 1996 Manufacturer: Wärtsilä Diesel Oy Staalarminkatu 45 20810 Turku Finland |
|
Propellers |
1x Controllable pitch propeller - aft at 157 rpm |
|
Electric installations |
2x Plants each 380/220 V - 430 kVA 1x Plant 380 V - 1.000 kVA 1x Plant 380 V - 75 kVA |
|
Shaft generator |
1x 1.000 kVA |
|
Generators |
2x Main diesel generatorsets each 430 kVA |
|
Emergency generator |
1x Diesel generatorset 75 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x Fixed pitch propeller KAMEWA - 550 kW, forward |
|
Number of holds |
3x Box shaped, steel floored |
|
Cargo capacity |
Grain: 8.251 m³ / 291.380 ft³ Bales: 7.796 m³ / 275.315 ft³ |
|
Number of hatches |
3 Hatch 1: 12,66 x 10,40 m Hatch 2&3: 26,80 x 15,52 m |
|
Hatch type |
|
|
Max permitted loads |
Tank top: 15,0 t/m² Tweendeck: 4,0 t/m² Weather deck hatch cover: 1,75 t/m² Timber on weather deck hatch cover: 2,0 t/m² |
|
Air changes |
Cargo hold ventilation: 6 air changes/hour Cargo hold 2&3 ventilation: 2 air changes/hour |
|
Tank capacities |
Fuel oil: 460 m³ Water ballast: 2.486 m³ Fresh water: 86 m³ Gas oil: 164 m³ |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m |
|
ISM & commercial manager |
Langh Ship Oy Ab Piikkio Finland |
|
Registered owner |
Oy Langh Ship Ab Alaskartano 21500 Pikis Finland |
|
Latest data adjustment |
27 September 2023 |
