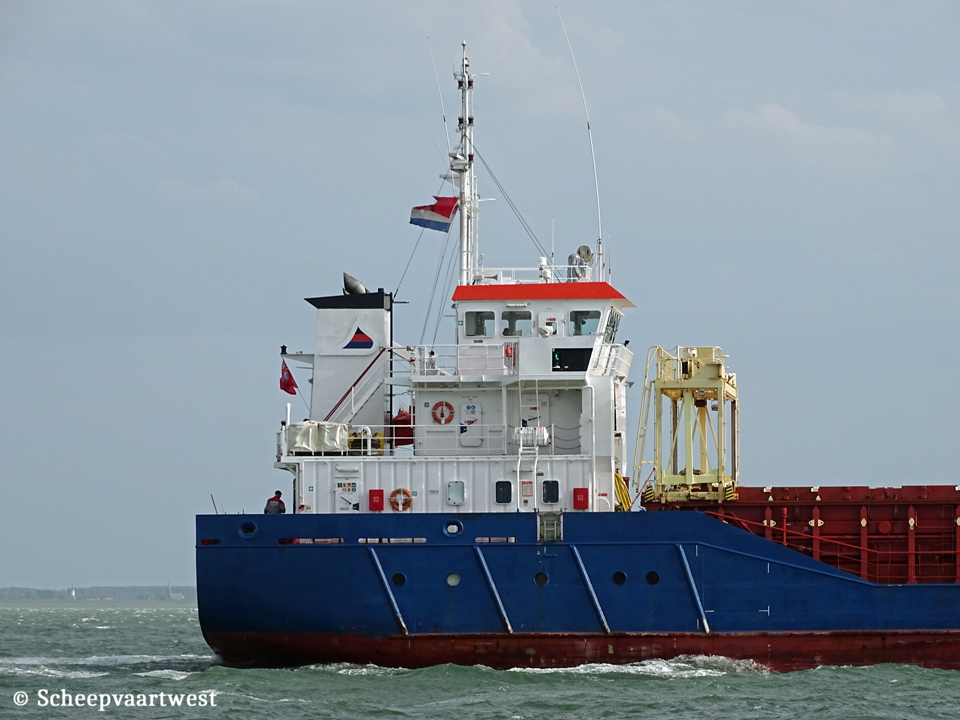

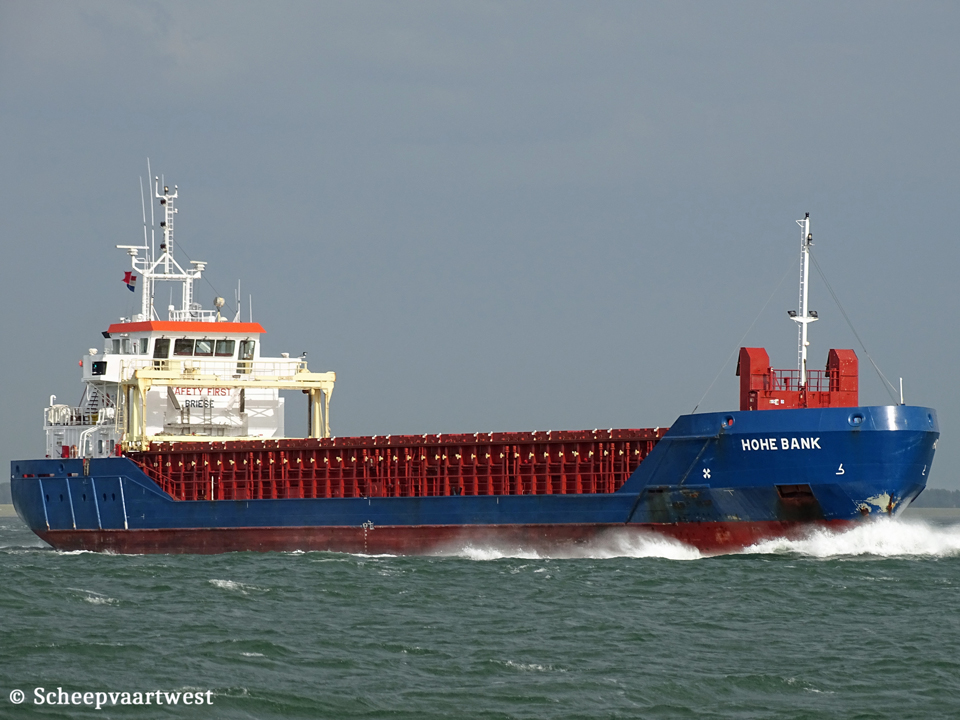

| Westerschelde 11 June 2017 |
 |
|
| Westerschelde 11/06/17 | |
|
Name |
HOHE BANK |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Tweendecker |
|
IMO-number |
9505302 |
|
Call sign |
ZDJU8 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
2.415 t |
|
DWT |
3.177 t |
|
DWCC |
Summer: 2.900 t |
|
NT |
1.361 t |
|
Light displacement |
1.331 t |
|
Number of 20ft containers |
In hold: 102 On deck: 36 Total: 138 |
|
Number of 40ft containers |
In hold: 48 + 2 TEU On deck: 16 + 4 TEU Total: 64 + 10 TEU |
|
Length |
85,96 m overall 82,42 m between perpendiculars |
|
Breadth |
12,40 m moulded 12,60 m extreme |
|
Draught |
Summer: 5,30 m |
|
Air draft |
Summer: 18,70 m |
|
Depth |
6,70 m |
|
Speed |
Max: 13,1 knots Service: 12,5 knots |
|
Build |
2010 |
|
Keel laid |
18/11/2008 |
|
Launch date |
25/09/2009 |
|
Date of completion |
15/06/2010 |
|
Builder |
Lisemco Haiphong Equipment Manufacture & Ship Building Co. Haiphong Vietnam |
|
Yard number |
TD04 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Movable bulkheads |
2x in 7 positions |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.683 kW / 2.288 hp at 750 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
yes |
|
Generators |
2x Sisu 634 DSBG diesel generatorsets each 120 kW |
|
Emergency generator |
1x Sisu 620 DSRG diesel generatorset 70 kW |
|
Bow thruster |
1x 200 kW |
|
Number of Holds |
1 59,42 x 10,20 x 8,45 m |
|
Hold capacity |
Bale/Grain: 4.971 m³ / 175.550 ft³ |
|
Number of hatches |
1 59,60 x 11,00 m |
|
Hatch cover type |
Pontoon type |
|
Floor space |
Under deck: 1.158 m³ / 12.460 ft² On deck: 624 m² / 6.714 ft² |
|
Max permitted loads |
Tanktop: 14,0 t/m² Tweendeck: 2,50 t/m² Hatch covers: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.300 m³ Fresh water: 33 m³ Marine diesel oil: 253 m³ |
|
Anchor equipment |
Length: 440,00 m³ Diameter: 32 mm |
|
ISM & commercial manager |
Briese Dry Cargo GmbH & Co. KG Leer Germany |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "Hohe Bank" Care of Briese Schiffahrts GmbH & Co., KG Hafenstrasse 12 26789 Leer Germany |
|
Latest data adjustment |
15 October 2024 |
