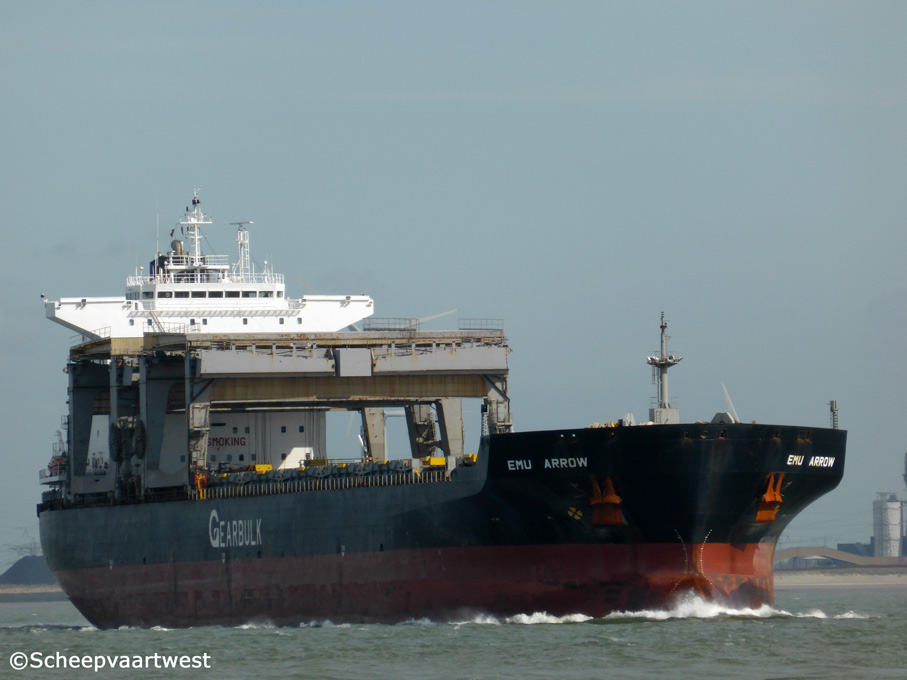

Emu Arrow 02

Westerschelde 09 April 2014

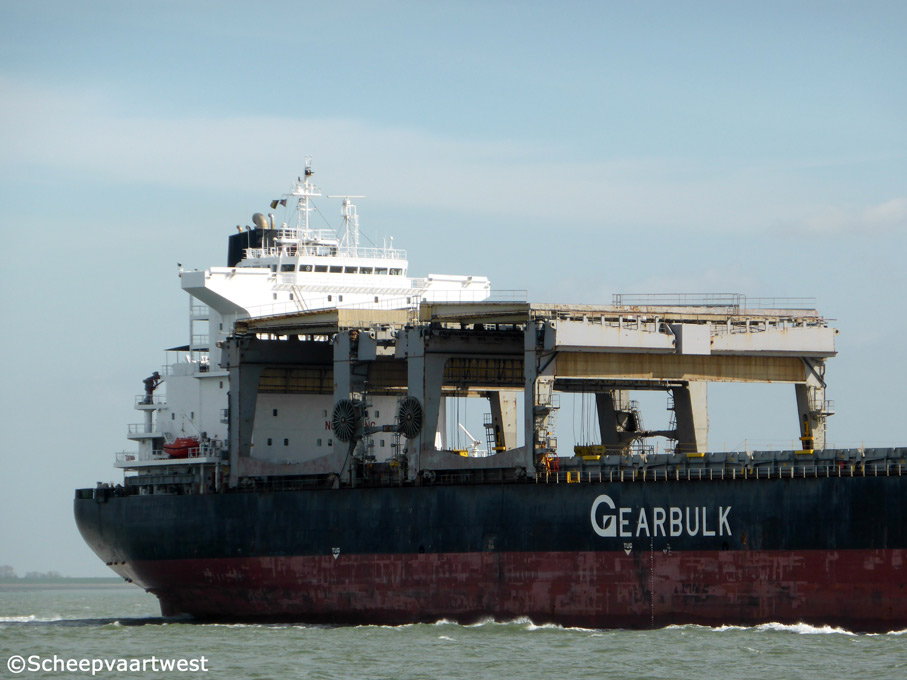

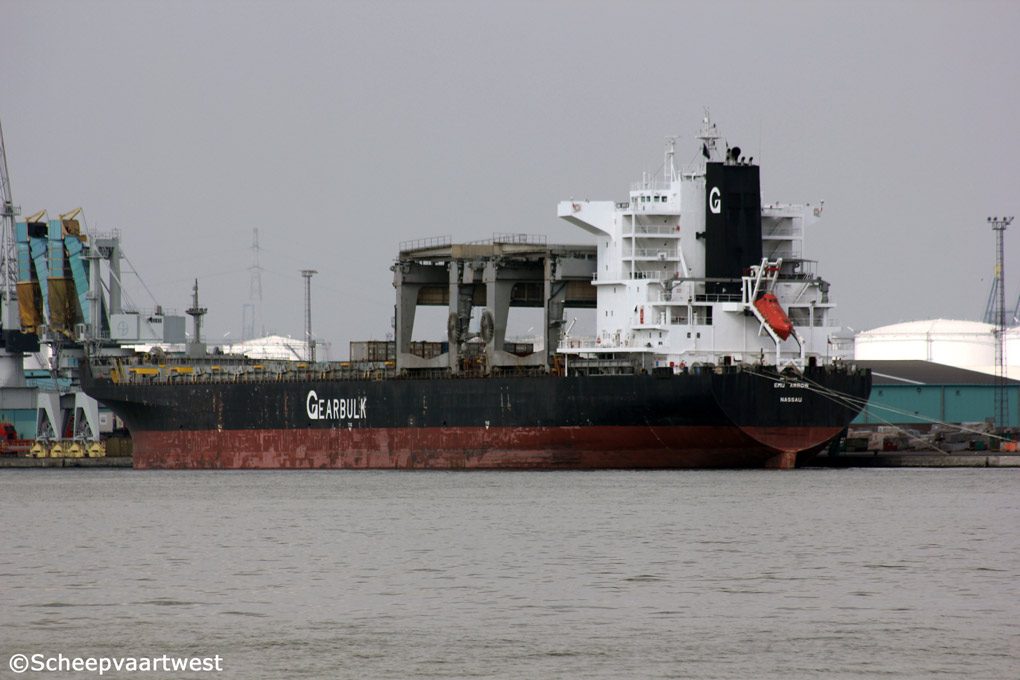

Emu Arrow 03   Emu Arrow 01
09/04/14   Antwerpen 05/04/14



Name

EMU ARROW

Type

General cargo ship - Forest product carrier

IMO-number

9144392

Call sign

C6OR4

Flag

Bahamas

Port of registry

Nassau

GT

36.008 t

DWT

51.800 t

NT

14.195 t

Number of 20ft containers

1.788

Length

199,70 m overall

192,00 m between perpendiculars

Breadth

32,24 m extreme

Draught

13,51 m

Depth

19,30 m

Speed

14,5 knots

Built

1997

Keel laid

18.09.1996

Launch date

22.03.1997

Date of completion

31.07.1997

Builder

Dalian New Shipbuilding Heavy Industry

Dalian
China

Yard number

BC460-5

Hull material

Steel

Bulkheads

Transverse: 14

Main engine

1x MAN-B&W/Dalian 6L60MC - 6 cylinder diesel engine 15.600 hp

Propellers

1

Boilers

Auxiliary boiler, composite AQ16

Builder: Aalborg

Generators

3x Ulstien KRG-5 diesel generatorsets

Emergency generator

1x MAN D2866E diesel generatorset

Number of holds

10

Totat hold capacity

Bale: 61.337 m³

Hatchways

1x Hatch with dimension 13,20 x 18,00 m
1x Hatch with dimension 13,20 x 23,00 m
7x Hatches with dimension 13,20 x 27,40 m
1x Hatch with dimension 13,20 x 23,00 m

Ballast capacity

21.804,9 m³

Cargo gear

2x Gantry cranes SWL 40,0 t each

Grabs: 2x 17,0 m³

Manager

Gearbulk Norway AS
Damsgårdsveien 165

5160 Laksevåg Bergen
Norway

Previous managers

1997 - 2011 Kristian Gerhard Jebsen Skipsrederi A/S

Operator

Gearbulk

Registered owner

Gearbulk Shipowning Ltd.

Latest data adjustment

11 May 2014
