Westerschelde 30 September 2015 |
|
Name |

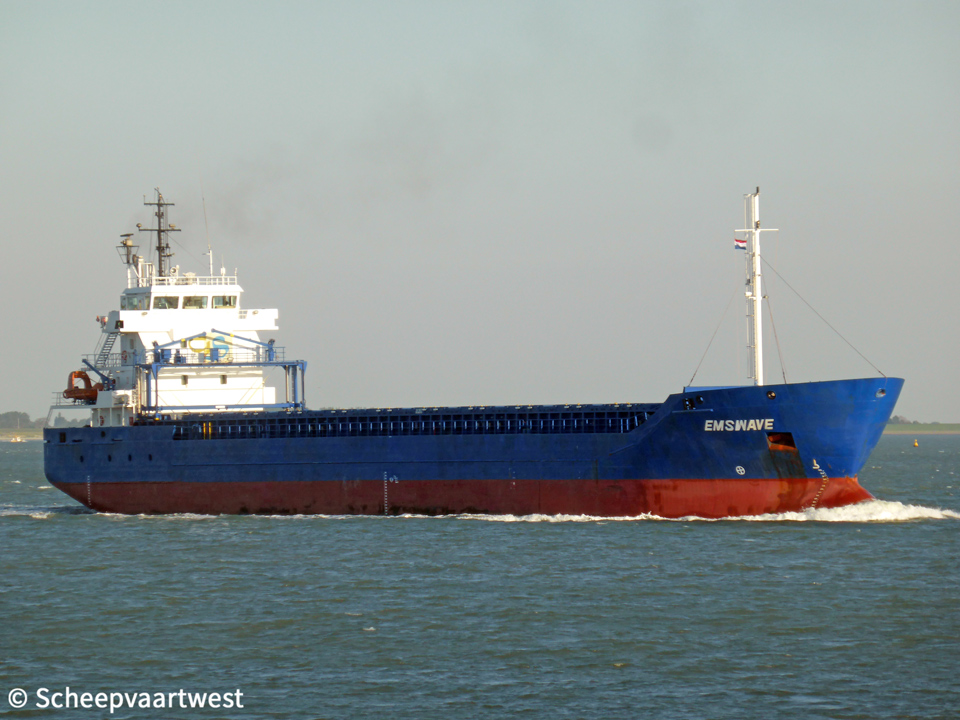

EMSWAVE |
|
Previous names |
2011 Launch as: Gröna Jarssun |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Singledecker |
|
IMO-number |
9552056 |
|
Call sign |
V2FR6 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
3.500 t |
|
DWT |
Summer: 5.233,8 t |
|
DWCC |
Summer/Winter: 5.000 t |
|
NT |
1.382 t |
|
Number of 20ft containers |
188 |
|
Length |
99,48 m overall 92,50 m between perpendiculars |
|
Breadth |
13,53 m extreme 13,34 m moulded |
|
Draught |
Max: 6,15 m |
|
Air draft |
23,70 m ballast |
|
Depth |
9,10 m |
|
Speed |
12,0 knots |
|
Built |
2011 |
|
Keel laid |
21/12/2008 |
|
Launch date |
17/05/2011 |
|
Date of completion |
11/09/2011 |
|
Builder |
Western Marine Shipyard Ltd. Chittagong Bangladesh |
|
Yard number |
928/05 |
|
Hull material |
Steel |
|
Bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK-Caterpillar 6M25 C - 4 stroke 6 cylinder combustion engine 2.000 kW / 2.720 bhp at 750 rpm Builder: :Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1(Central heating boiler) |
|
Shaft generator |
356 kW - 400 Volt |
|
Generators |
2x SISU 74.475 CTAG-4V main diesel generatorsets each 168 kW - 400 Volt |
|
Emergency generator |
1x SISU 49.548DTG diesel generatorset 65 kW |
|
Bow thruster |
280 kW |
|
Number of holds |
1 61,80 x 11,20 x 9,60 m |
|
Cargo hold capacity |
Grain: 6.646 m³ |
|
Number of hatches |
1 61,80 x 11,20 m |
|
Hatch cover type |
Pontoon |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatchecovers: 1,75 t/m² |
|
Tank capacities |
Ballast: 1.911,8 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
Manager |
Grona Shipping GmbH & Co. KG Deverhafen 2 26871 Papenburg Germany |
|
Operator |
Wagle Chartering AS |
|
Registered owner |
Grona Shipping GmbH & Co. KG Papenburg Germany |
|
Renamed |
2017 Rocamar G.D. Luxembourg, Luxembourg City - LXRQ Owner: Vertom-Bojen Schiffahrts MS "Merle" GmbH & Co. KG Manager: Vertom Bereederungs GmbH & Co. KG |
|
Latest data adjustment |
08 August 2020 |
