| Westerschelde 18 April 2018 |
|
Name |

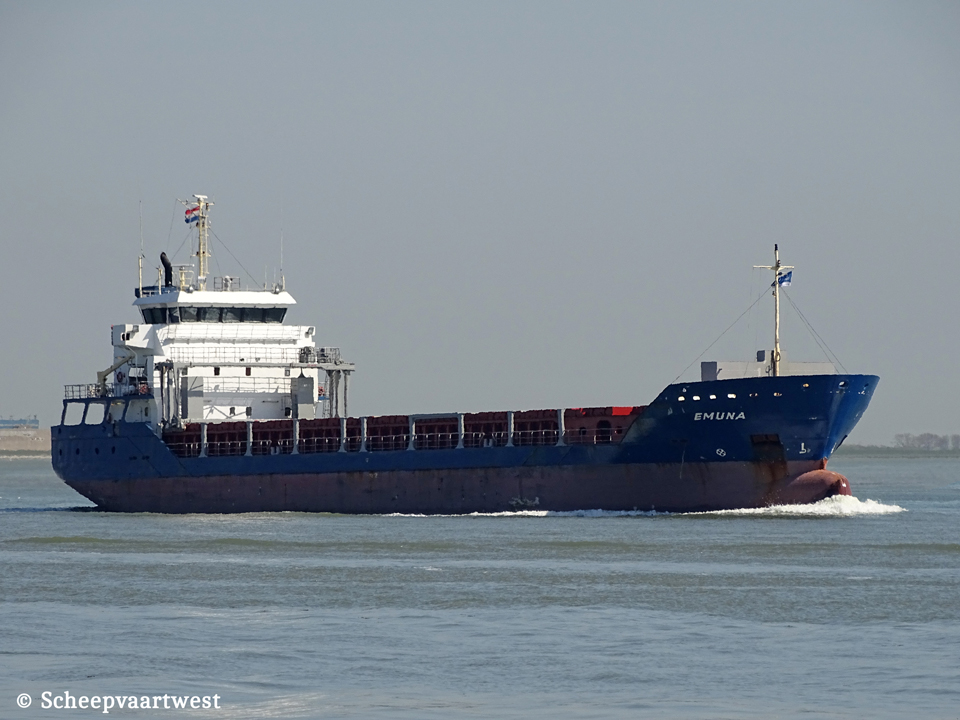

EMUNA |
|
Type |
General cargo ship - Heavycargo- Container ship |
|
IMO-number |
9529188 |
|
Call sign |
PBOU |
|
Flag |
The Netherlands |
|
Port of registry |
Werkendam |
|
GT |
2.992 t |
|
DWT |
4.987 t |
|
DXCC |
Summer: 4.630 t Winter: 4.530 t |
|
NT |
1.650 t |
|
Number of 20ft containers |
230 |
|
Length |
89,95 m overall 85,00 m between perpendiculars |
|
Breadth |
15,25 m extreme |
|
Draught |
5,63 m |
|
Freeboard |
1.229 mm |
|
Depth |
7,90 m |
|
Speed |
Max: 14,6 knots Service: 11,6 knots |
|
Launch date |
2008 |
|
Delivery date |
02/04/2009 |
|
Builder casco |
Sainty Shipbuilding (Yangzhou) Corp. Ltd. Yizheng China Yard number: 06KH0017 |
|
Builder completion |
Holland Shipyards B.V. Hardinxveld-Giessendam The Netherlands Yard number: 617 |
|
Hull material |
Steel |
|
Watertight compartments |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW / 2.448 bhp at 1.000 rpm Builder: Wärtsilä, Vaasa - Finland |
|
Propellers |
1x Controllable pitch propeller - aft at 209,0 rpm |
|
Boilers |
1x CHO Heatmaster 9,90 m² - 10,0 bar 1x CHR Heatmaster 27,00 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorsets each 213 kVA - 170 kW - 247 hp |
|
Bow thruster |
1x Veth tunnel thruster VT-240 - 300 kW at 1.500 rpm |
|
Number of holds |
1 63,45 x 12,61 x 7,94 m |
|
Cargo hold capacity |
5.975 m³ |
|
Number of hatches |
1 63,45 x 12,61 m |
|
Hatch type |
Pontoon |
|
Max permitted loads |
Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel: 400,3 m³ |
|
Manager |
Amasus Shipping B.V. Delfzijl The Netherlands |
|
Previous managers |
03/2009 -11/2009 Wagenborg Shipping B.V., Delfzijl - The Netherlands |
|
Owner |
Emuna Shipping C.V. Werkendam The Netherlands |
|
Renamed |
06/2021 Eems Ranger The Netherlands, Delfzijl - call sign: PBOU Manager: Amasus Shipping B.V., Delfzijl - The Netherlands Owner: Eems Ranger B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
07 March 2023 |
