Westerschelde 29 April 2012 |
 |
 |
|
| Westerschelde 29/04/12 | Westerschelde 29/04/12 |
|
Name |

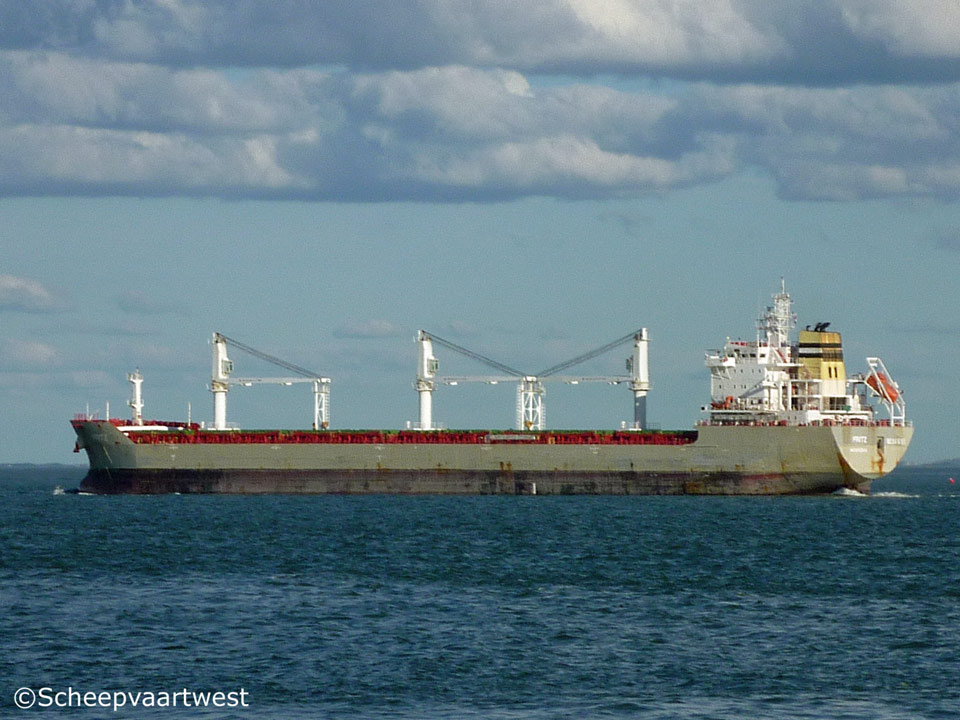

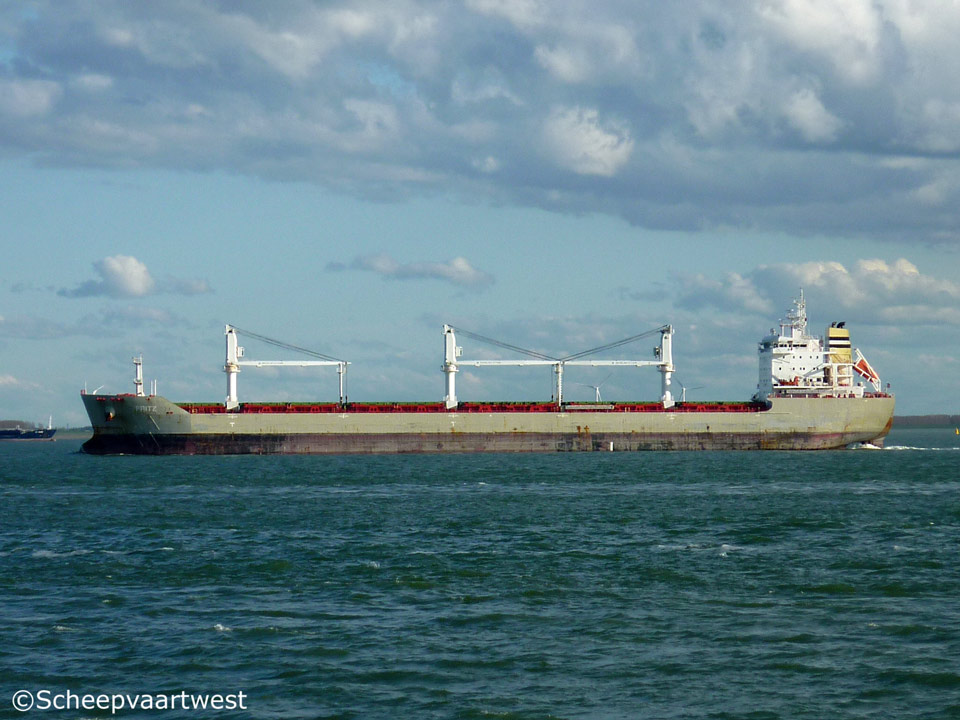

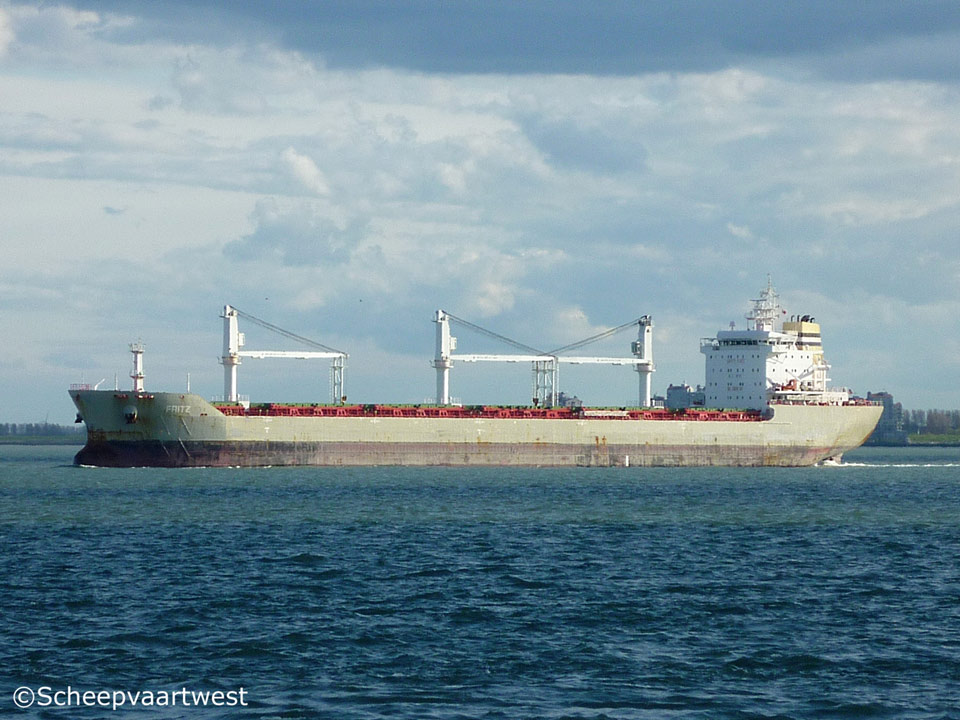

FRITZ |
|
Type |
Dry bulk carrier |
|
IMO-number |
9415155 |
|
Call sign |
A8UV8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
20.491 t |
|
DWT |
Summer: 29.617,5 t |
|
NT |
9.701 t |
|
Light ship |
9.520,6 t |
|
Length |
189,65 m overall 182,65 m between perpendiculars |
|
Breadth |
23,75 m extreme 23,58 m moulded |
|
Draught |
Summer: 10,10 mm |
|
Depth |
14,60 m |
|
Speed |
14,0 knots |
|
Built |
2010 |
|
Keel laid |
14.11.2008 |
|
Launch date |
08.06.2009 |
|
Date of completion |
22.06.2009 |
|
Builder |
Wuhu Xinlian Shipbuilding Co. Ltd. |
|
Yard number |
W0719 |
|
Hull material |
Steel |
|
Main engine |
1x 6RT-flex50-B - 6 cylinder diesel engine 7.800 kW |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x W6L20 Main diesel generatorsets |
|
Emergency generator |
1x MAN D2866 TE diesel generatorset |
|
Number of holds |
6 |
|
Cargo hold capacity |
Grain: 38.881,3 m³ |
|
Number of hatches |
6 |
|
Tank capacities |
Ballast: 16.980 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 64 mm |
|
Cargo gear |
3x Deck cranes - SWL 30,0 t each |
|
Manager |
Intersee Schiffahrt |
|
Owner |
Intersee Schiffahrt |
|
Renamed |
03.2015 Marbacan, Madeira - Portugal - Call sign: CQGI |
|
Latest data adjustment |
05 January 2017 |
