Westerschelde 05 October 2016 |
 |
 |
||
| Antwerpen 12/12/19 | Westerschelde 20/12/19 | ||
|
Name |

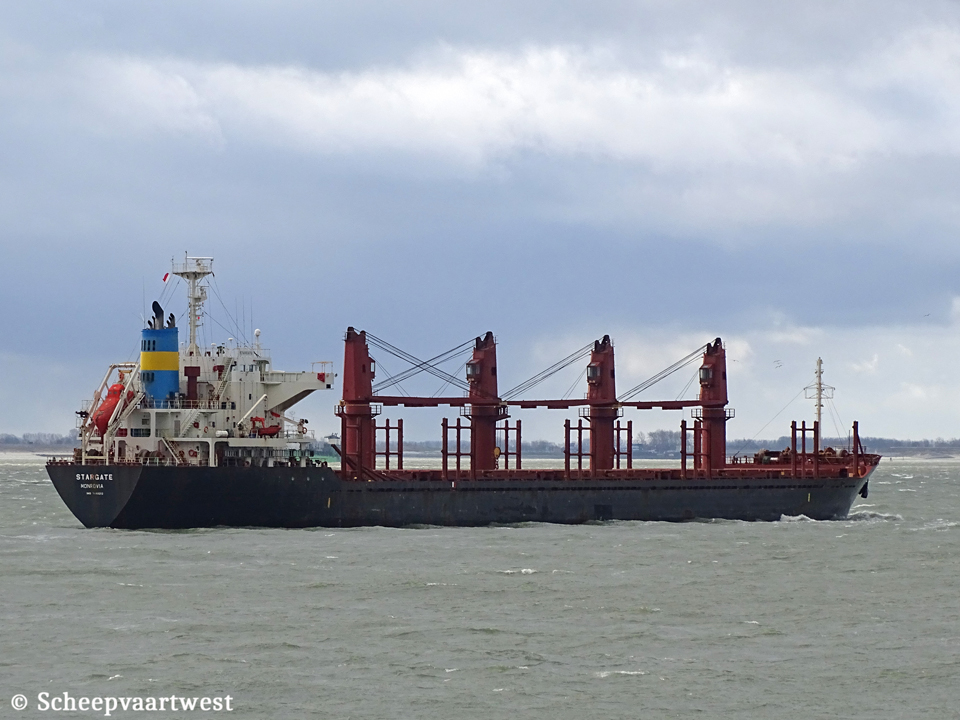

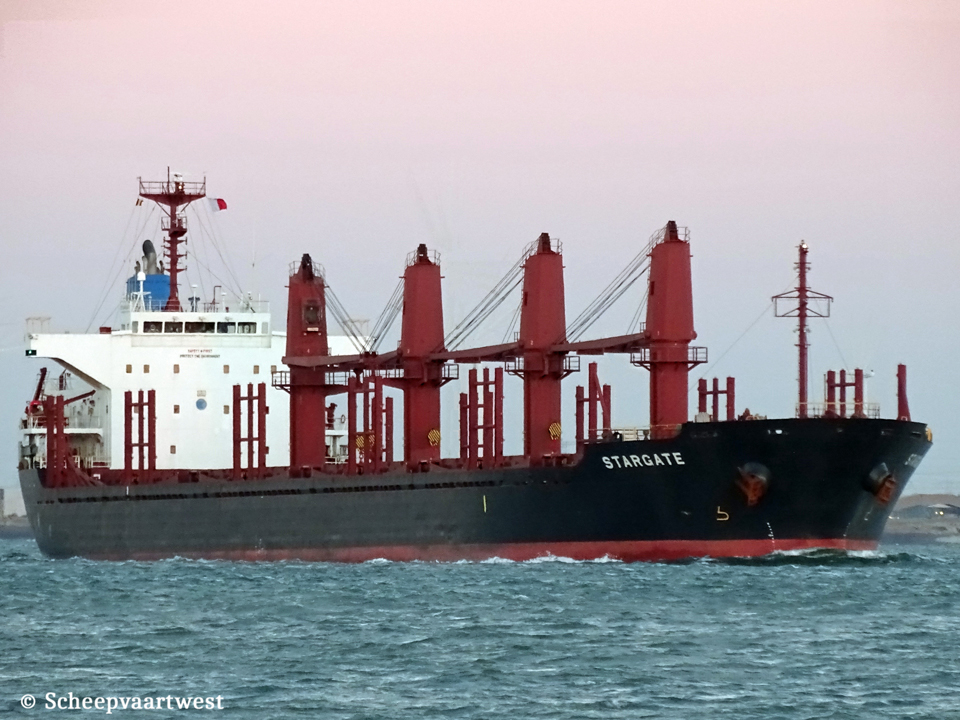

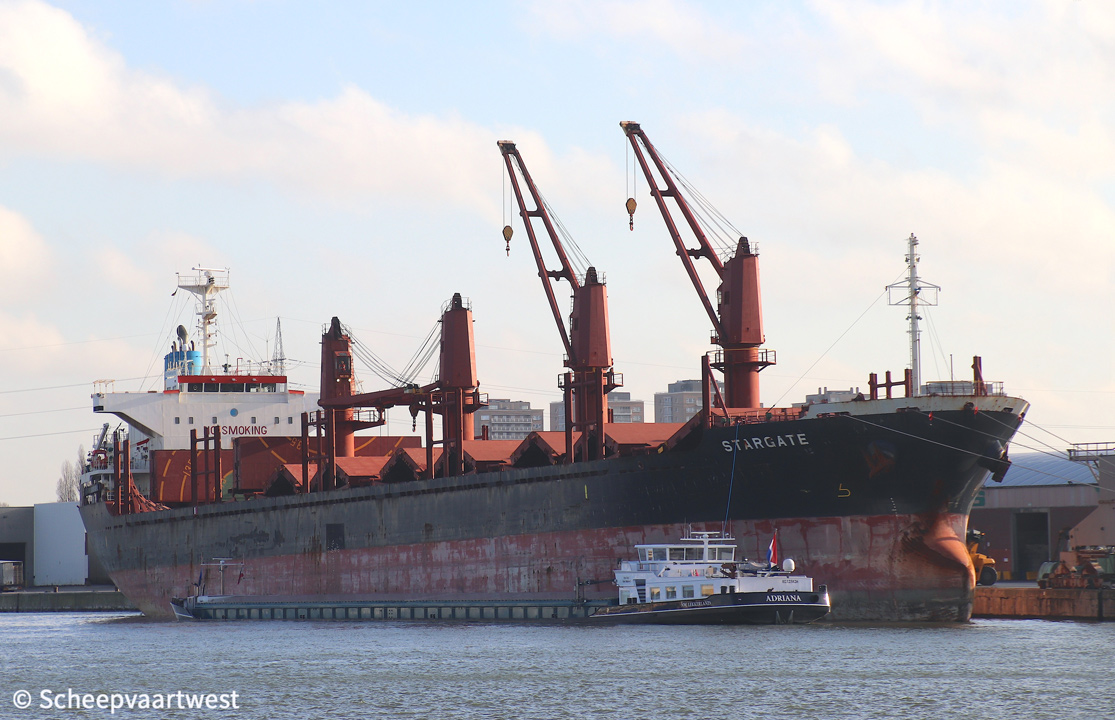

STARGATE |
|
Previous names |
Build as: Assodiver VII 02/2012 - 05/2012 Star Gate |
|
Type |
Bulk/Lumber carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9493212 |
|
Call sign |
D5CJ7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
02/2012 - 05/2012 United Kingdom - Call sign: 2EAY4 |
|
GT |
17.025 t registered |
|
DWT |
Summer: 28.221 t |
|
NT |
10.108 t registered |
|
Length |
169,37 m overall |
|
Breadth |
27,20 m moulded |
|
Draught |
Summer: 9,82 m |
|
Moulded L x B x D |
160,40 x 27,20 x 13,60 m |
|
Registered L x B x D |
161,21 x 27,20 x 13,60 m |
|
Keel to mast end |
41,00 m |
|
Freeboard |
Summer: 3.825 mm |
|
Depth |
13,60 m moulded |
|
Speed |
Service: 14,0 knots Max: 16,3 knots |
|
Built |
2011 |
|
Keel laid |
25/12/2009 |
|
Launch date |
04/11/2010 |
|
Date of completion |
12/01/2011 |
|
Builder |
Shimanami Shipyard Co., Ltd. Imabari Japan |
|
Yard number |
H545 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x MAN B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine Mcr 5.850 kW / 7.954 hp at 129,0 rpm Manufacturer: Makita Corporation - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with motoring device Diameter: 420 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 2,07 t/h Manufacturer: Miura Co., LTD. |
|
Generators |
4x Generators total 1.715 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 35.742 m³ Grain: 37.320 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.538 m³ Fresh water: 262 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Crew size |
25 |
|
Manager |
Eastern Pacific Shipping Pte. Ltd. Republic of Singapore |
|
Registered owner |
Larchep Shipping Inc. |
|
Renamed |
11/2020 Golden Arsenal Saint Vincent and the Grenadines, Kingstown - Call sign: J8B6071 Owner: Golden Arsenal Co., Ltd. Manager: AB Bulkers Group Ltd., Constanta - Romania |
|
Latest data adjustment |
24 October 2022 |
