| Westerschelde 14 December 2011 |
|
Name |

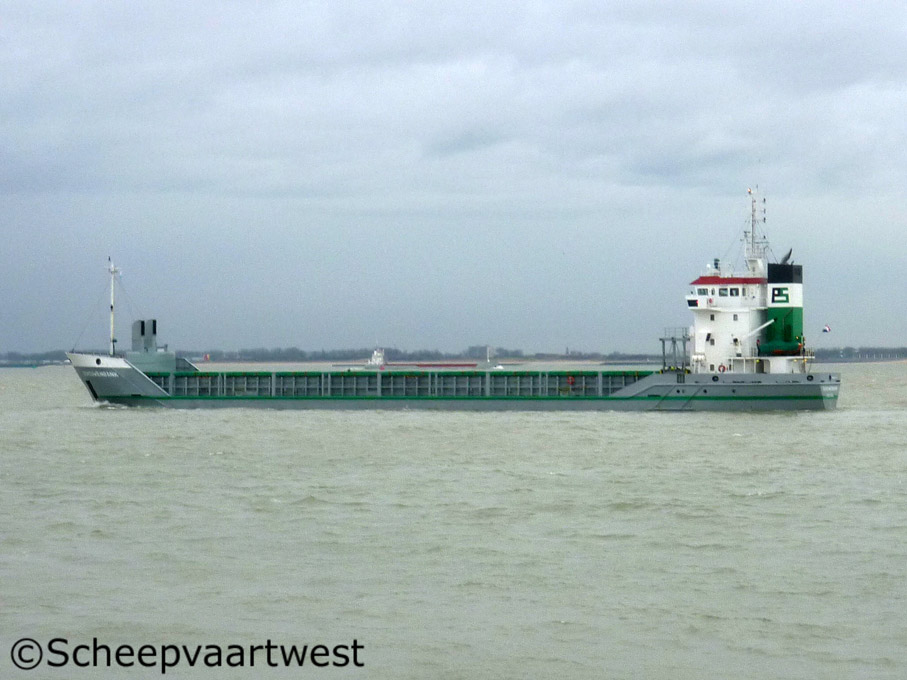

SCHOUWENBANK |
|
Type |
Multi-purpose dry cargo vessel / Container ship |
|
IMO-number |
9163647 |
|
Call sign |
PFSC |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.774 t |
|
DWT |
4.108 t |
|
NT |
1.548 t |
|
Number of 20ft containers |
211 |
|
Length |
89,72 m overall 84,98 m between perpendiculars |
|
Breadth |
13,60 m |
|
Draught |
5,71 m |
|
Air draft |
25,00 m |
|
Freeboard |
1.215 mm |
|
Depth |
7,20 m |
|
Speed |
12,0 knots |
|
Built |
1998 |
|
Date of completion |
24.02.1998 |
|
Builder |
Volharding Shipyard BV |
|
Yard number |
338 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MAK 6M43C - 4 stroke 6 cylinder 320 x 420 mm diesel engine - 2.200 kW / 2.989 hp at 600 rpm Built: 1997 |
|
Electrical propulsion gen. |
1x 240 kW |
|
Propelling system |
1x Screw propeller controllable pitch at 174 rpm |
|
Electrical installation |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
3x Diesel generatorsets each 129 kVA - 103 kW - 153 hp |
|
Number of holds |
1 Dimension: 62,88 x 11,00 x 8,34 m |
|
Total capacity of holds |
Grain & Bales: 5.628 m³ |
|
Cargo hatchways |
1 Dimension: 11,00 x 62,88 m |
|
Manager |
Wagenborg Shipping BV |
|
Owner |
Bankship III B.V. |
