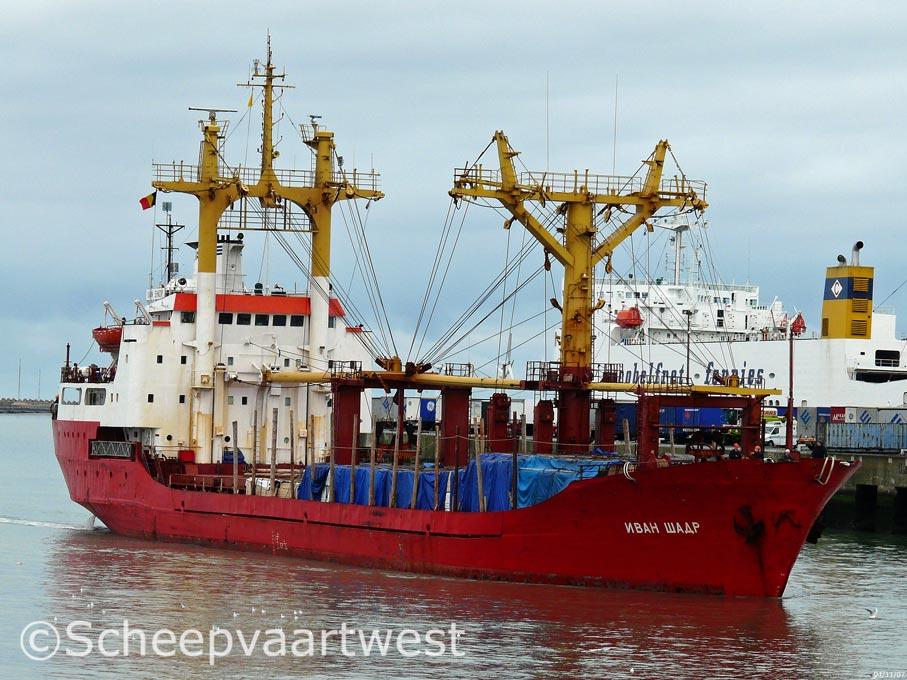

Ivan Shadr 01
Zeebrugge 04 November 2007

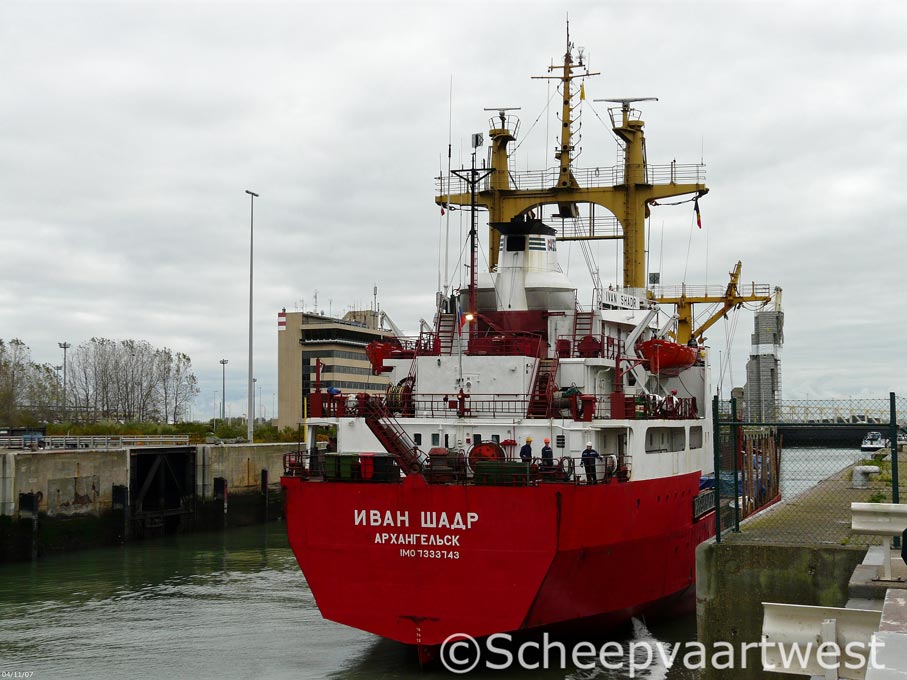

Ivan Shadr 03
Zeebrugge 04/11/07



Name

IVAN SHADR

Type

General Cargo

IMO-number

7333743

Call sign

UCMR

Flag

Russian Federation

Port of registry

Arkhangelsk

GT

3.527 t

DWT

Summer: 4.054 t

NT

1.622 t

Displacement

Summer: 6.535 t

Number of 20ft containers

137

Length

97,31 m overall
89,95 m between perpendiculars

Breadth

16,24 m overall

Draught

Summer: 6,36 m

Freeboard

1.340 mm

Depth

7,70 m

Speed

14,0 knots

Built

1973

Launch date

17.08.1973

Date of completion

19.12.1973

Builder

Hollming Helsinki
Rauma
Finland

Yard number

4206

Hull type

Double hull

Bulkheads

7

Number of decks

1

Main engine

1x B&W - 2.832 kW

Number of screws

1x Fixed pitched solid propeller

Cargo holds capacity

1x 1066 m³
1x 2410 m³
1x 2416 m³

Hatchways

1x 10,50 x 10,50 m
2x 18,50 x 13,00 m

Lifting equipment

1x Derrick - SWL 12,5 t
1x Derrick - SWL 20,0 t
1x Derrick - SWL 35,0 t

Tank capacities

Ballast: 946 t

Fuel oil: 456 t

Manager

Northern Shipping
Arkhangelsk
Russia

Owner

Northern Shipping Company
36 Nab. Severnay Dviny
Arkhangelsk
Russia
