| Westerschelde 20 September 2019 |
|
Name |

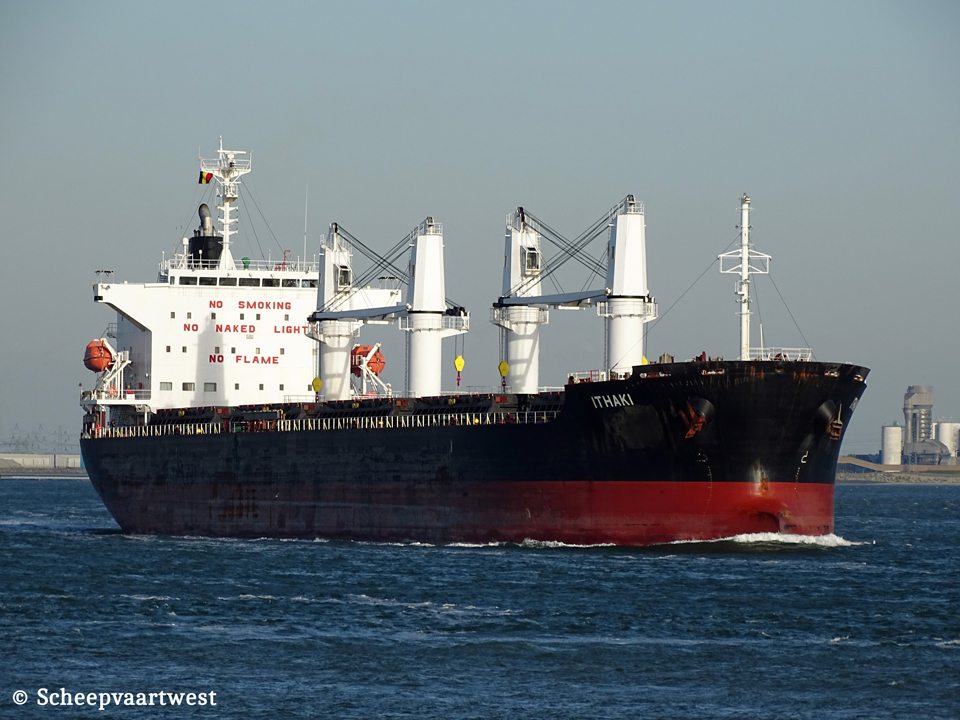

ITHAKI |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9691632 |
|
Call sign |
V7IK3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GRT |
23.268 t |
|
DWT |
38.060 t |
|
NRT |
12.101 t |
|
Length |
179,97 m overall |
|
Breadth |
29,80 m moulded |
|
Draught |
Summer: 10,54 m |
|
Moulded L x B x D |
173,00 x 29,80 x 15,00 m |
|
Registered L x B x D |
173,52 x 29,80 x 15,00 m |
|
Freeboard |
Summer: 4.500 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Max: 16,0 knots Service: 14,7 knots |
|
Built |
2014 |
|
Keel laid |
31/07/2013 |
|
Launch date |
22/09/2014 |
|
Date of completion |
04/11/2014 |
|
Builder |
Shimanami Shipyard Co., Ltd. Imabari Japan |
|
Yard number |
H606 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Makita/MAN-B&W 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 6.820 kW at 110,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,8 MPa Evaporation: 2,00 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 1.715 kVA |
|
Number of holds |
5 Hold 1: 27,55 x 7,60 / 22,70 x 13,60 m (BxLxH) Hold 2: 27,55 x 25,80 x 13,60 m (BxLxH) Hold 3: 27,55 x 25,80 x 13,60 m (BxLxH) Hold 4: 27,55 x 25,80 x 13,60 m (BxLxH) Hold 5: 27,55 x 25,80 / 9,10 x 13,60 m (BxLxH) |
|
Cargo hold capacity |
Grain / Bale: Hold 1: 7.707,43 / 7.380,05 m³ Hold 2: 9.932,74 / 9.575,67 m³ Hold 3: 9.966,82 / 9.578,52 m³ Hold 4: 9.995,17 / 9.577,94 m³ Hold 5: 9.432,71 / 9.126,15 m³ Total: 46.994,86 m³ / 45.238,33 m³ |
|
Number of hatches |
5 Hatch 1: 15,865 x 17,160 m Htach 2: 20,040 x 20,020 m Hatch 3: 20,040 x 20,020 m Hatch 4: 20,040 x 20,020 m Hatch 5: 20,040 x 20,020 m |
|
Hatch cover type |
Foldable hydraulic hatch covers |
|
Tank capacities |
Fuel oil: 1.945 m³ Fresh water: 294 m³ |
|
Cargo gear |
4x Central deck cranes - SWL 30,0 t each Grabs: 4x 12,0 m³ each |
|
Manager |
Lydia Mar Shipping CO., SA Leof. Poseidonos 25 Moschato 183 44 Greece |
|
Registered owner |
Ithaki Shipping Company Limited |
|
Renamed |
2021 Bolten Ithaki Marshall Islands, Majuro - Call sign: V7A2826 Owner: Nova Blanco Shipping Ltd. Manager: Lydia Mar Shipping Co. S.A. - Greece |
|
Latest data adjustment |
15 April 2023 |
