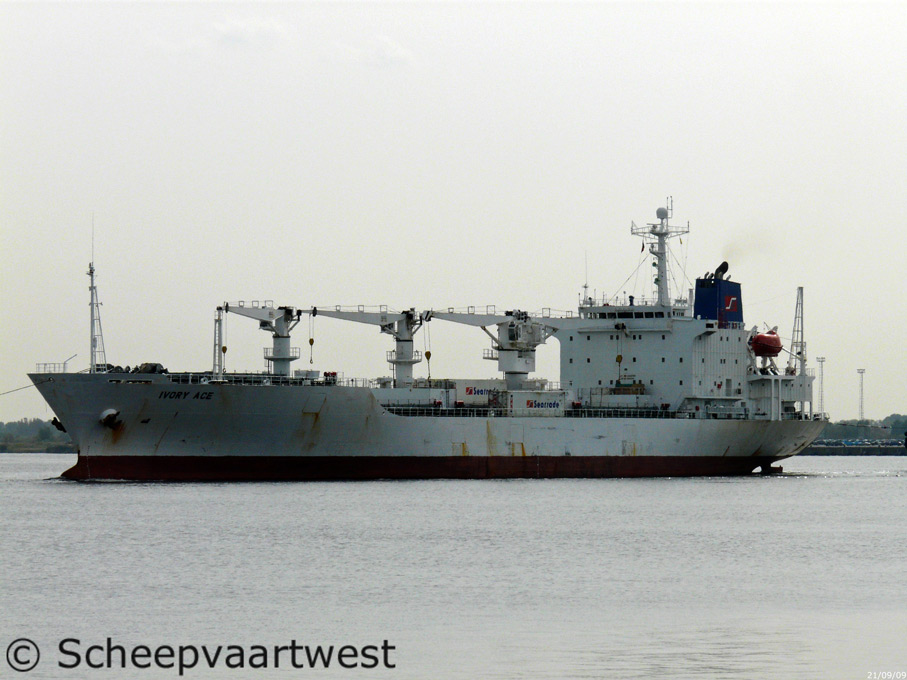

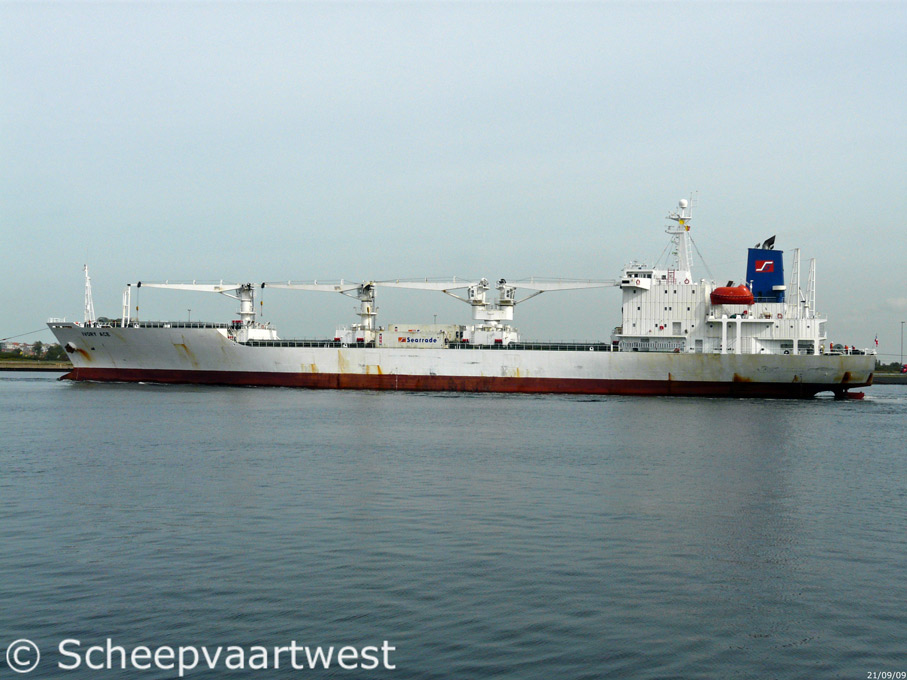

Ivory Ace - IMO 8813594

Name

IVORY ACE

Type

Frozen cargo - Reefer

Equipped for carriage of cars machinery

IMO-number

8813594

Call sign

C6TN3

Flag

Bahamas

Port of registry

Nassau

GT

10.394 t

DWT

10.713 t

NT

5.253 t

Number of 20ft containers

162

Length

150,01 m overall

141,00 m between perpendiculars

142,13 m registered

Breadth

22,50 m registered

Draught

Summer: 9,050 m

Depth

13,20 m tonnage

Speed

20,0 knots

Built

1990

Keel laid

30.08.1989

Launch date

28.11.1989

Date as completion

15.03.1990

Builder

Shikoku Dockyard Co., Ltd.
1-3-23, Asahi-machi
Takamatsu-city , Kagawa 760-0065
Japan

Yard number

856

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

4

Main engine

1x Mitsui 6 S 60 MC - 2 Stroke single acting 6 cylinder diesel 600 x 2.292 mm engine - 11.253 kW

Year of manufacture: 1989

Manufacturer: Mitsui Shipbuilding & Engineering Co., Ltd.
6-4, Tsukiji, 5-Chome, Chuo-ku
Tokyo
Japan

Propellers

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 7,0 bar

Heating surface: 38,5 m²

1x Exhaust gas heated - 7,0 bar

Heating surface: 261,6 m²

Year of manufacture: 1989

Manufacturer: Tortoise Engineering Co., Ltd.
700 Oaza-Kitagawara, Masaki-cho
Iyo-gun , Ehime 791-3131
Japan

Electric installations

4x Plant 440/220 V - 3.000 kVA

Generators

4x Main diesel generatorsets each 750 kVA

Compressed air receivers

2x Receivers each 7.000 litres - 30,0 bar

1x Receiver 80 litres - 30,0 bar

Refrigerating

Temperature of insulated spaces, min.: -30°C

Temperature of sea water, max.: 32°C

Total capacity of holds: 14.726 m³

Number of holds: 4

Number of insulated holds: 15

Number of separate cooled holds: 15

Number of condenser: 3

Kind of cooling: Direct evaporation, forced air ventilation

Maker of refrigerating machinery: Stal Refrigeration AB
Butaengsg. 14-16
601 87 Norrköping
Sweden

Car capacity

483

Largest hatch

Length: 11,70 m

Breadth: 7,50 m

Anchor equipment

3x Anchors weight each 4.590 kg

Chain length: 550,00 m

Tank capacities

Fuel oil: 1.693 m³

Ballast water: 1.484 m³

Lifting equipment

2x Cranes - SWL 18,0 t each

2x Cranes - SWL 8,0 t each

Crew size

25

Crew

21

Manager

FML Ship Management Ltd.
601, Ghinis Building 58-60, Dhigenis Akritas Avenue
1061 Nicosia
Republic of Cyprus

Operator

Seatrade Groningen B.V.
The Netherlands

Owner

Oceanlink Reefer II AS
Haakon VII`s Gate 1
0161 Oslo
Norway
