Westerschelde 12 May 2020 |
|
Name |

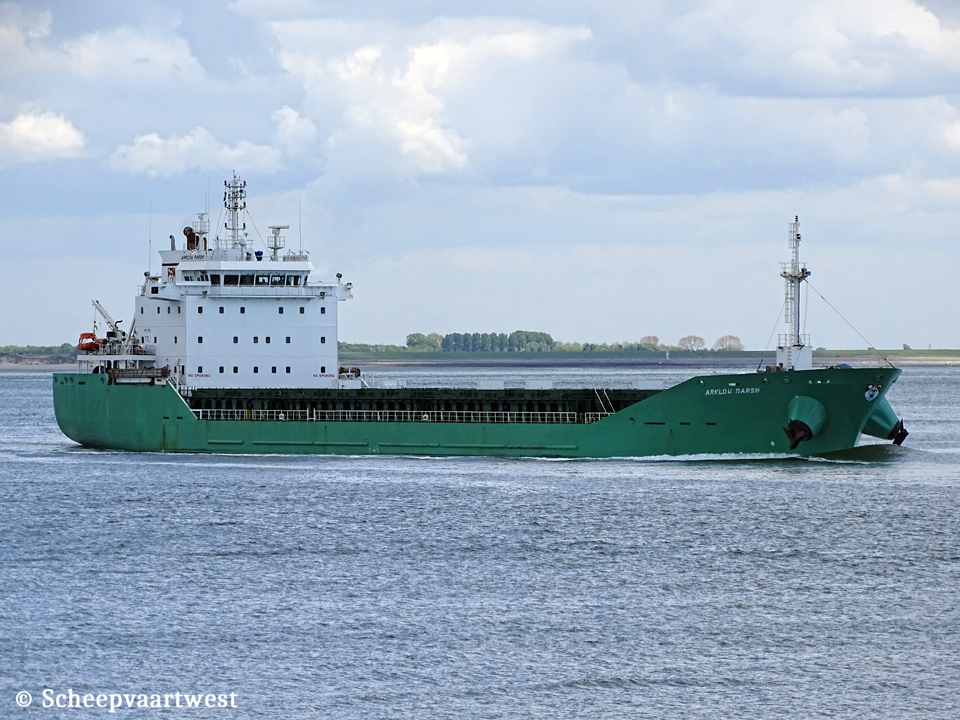

ARKLOW MARSH |
|
Type |
General cargo ship - Heavy cargo |
|
IMO-number |
9440253 |
|
Call sign |
EIIX5 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
9.758 t |
|
DWT |
Summer: 14.744,50 t Winter: 14.242,09 t |
|
NT |
5.240 t |
|
Length |
136,47 m overall 128,50 m between perpendiculars |
|
Breadth |
21,00 m moulded |
|
Draught |
Summer: 8,88 m Winter: 8,70 m Ballast: 6,50 m |
|
Air draft |
Min: 29,10 m |
|
Freeboard |
2.539 mm |
|
Depth |
11,40 m |
|
Speed |
14,5 knots |
|
Built |
2010 |
|
Date of completion |
28/01/2010 |
|
Builder |
Mokpo Shipbuilding Industry Co., Ltd. Mokpo South Korea |
|
Yard number |
07-190 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.337 hp at 500 rpm Build: 22/02/2009 Builder: Caterpillar Motoren Rostock GmbH, Rostock -Germany |
|
Propellers |
1x Screw Propeller Controllable pitch - aft at 500 rpm |
|
Boilers |
1x CHR 627.07B 115,00 m² - 10,0 bar 1x CHO 627.07A 29,00 m² - 10,0 bar |
|
Shaft generator |
1x 952 kW - 400 Volt 50 Hz |
|
Generators |
2x Main diesel generatorsets each 438 kVA - 350 kW - 595 hp |
|
Emergency generator |
1x Diesel generatorset 125 kVA - 100 kW - 166 hp |
|
Bow thruster |
1x 750 kW |
|
Number of holds |
4 |
|
Total capacity of holds |
Grain & bale: Hold 1: 3.132 m³ / 110.600 ft³ Hold 2: 5.762 m³ / 203.480 ft³ Hold2: 5.628 m³ / 198.742 ft³ Hold 4: 3.587 m³ / 126.668 ft³ Total: 18.110 m³ / 639.490 ft³ |
|
Hold ventilation |
6x Changes per hour in empty holds |
|
Number of hatches |
4 Hatch 1: 15,40 x 12,60 m Hatch 2: 23,10 x 17,80 m Hatch 3: 23,10 x 17,80 m Hatch 4: 15,40 x 17,80 m |
|
Hatch type |
Sehoe Folding type |
|
Max permitted loads |
On hatches: 1,8 t/m² Tanktop: 20,0 t/m² |
|
Tank capacities |
Fuel: 802,27 m³ |
|
Crew size |
16 |
|
Manager |
Arklow Shipping North Quay Arklow Co. Wicklow Ireland |
|
Registered owner |
Coastal Shipping Limited |
|
Latest data adjustment |
12 September 2021 |
