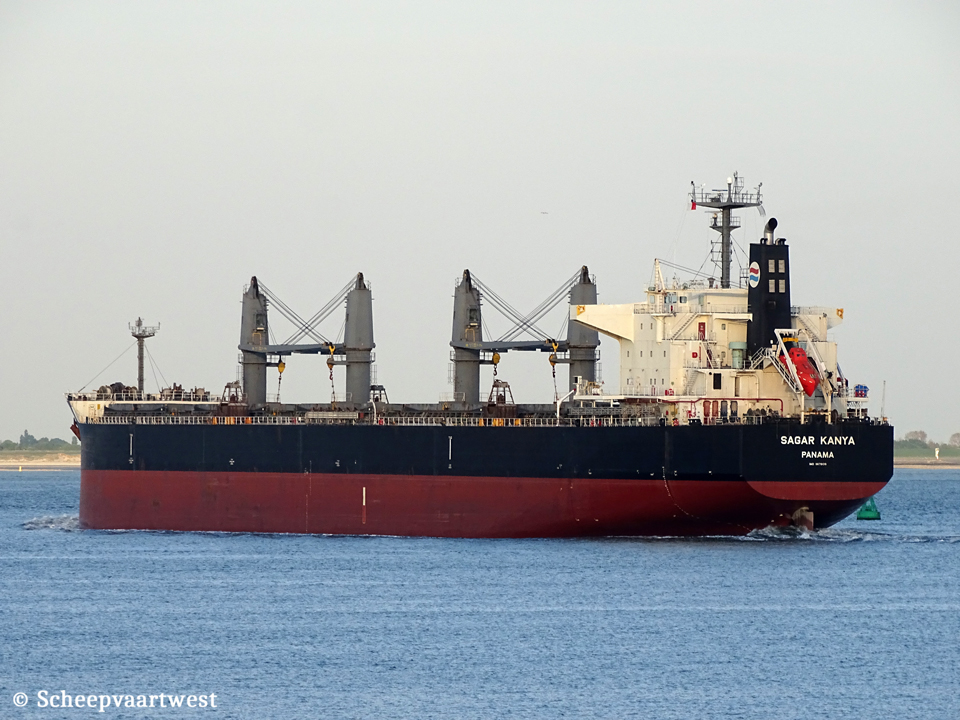

| Westerschelde 15 May 2019 |
|
Name |
SAGAR KANYA |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9679139 |
|
Call sign |
3FRK7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
33.192 t |
|
DWT |
58.609 t |
|
NRT |
19.143 t |
|
Length |
197,00 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,68 m |
|
Moulded L x B x D |
194,00 x 32,26 x 18,10 m |
|
Registered L x B x D |
194,00 x 32,26 x 18,10 m |
|
Keel to mast end |
46,30 m |
|
Freeboard |
Summer: 5.477 mm |
|
Depth |
18,10 m moulded |
|
Speed |
Max: 15,9 knots |
|
Built |
2013 |
|
Keel laid |
17/06/2013 |
|
Launch date |
27/09/2013 |
|
Date of completion |
28/11/2013 |
|
Builder |
Nantong COSCO KHI Ship Engineering Co., Ltd. China |
|
Yard number |
NE145 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S50ME-C8 - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 8.630 kW /11.733 hp at 116,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 490 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler- 0,80 MPa Evaporation: 3,21 t/h Manufacturer: Alfa Laval Aalborg Ltd. |
|
Generators |
4x Generatorsets total 2.035 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 73.679 m³ Bale: 70.963 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 2.214 m³ Fresh water: 391 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Commercial manager |
Tata NYK Shipping Pte Ltd. 10-03, ABI Plaza, 11, Keppel Road Singapore 089057 Republic of Singapore |
|
ISM manager |
Fleet Ship Management Pte Ltd. 31-01, MTower, 460, Alexandra Road Singapore 119963 Republic of Singapore |
|
Registered owner |
TN-Hyuga Shipping SA Care of MSC Shipmanagement Ltd , MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Latest data adjustment |
20 July 2022 |
