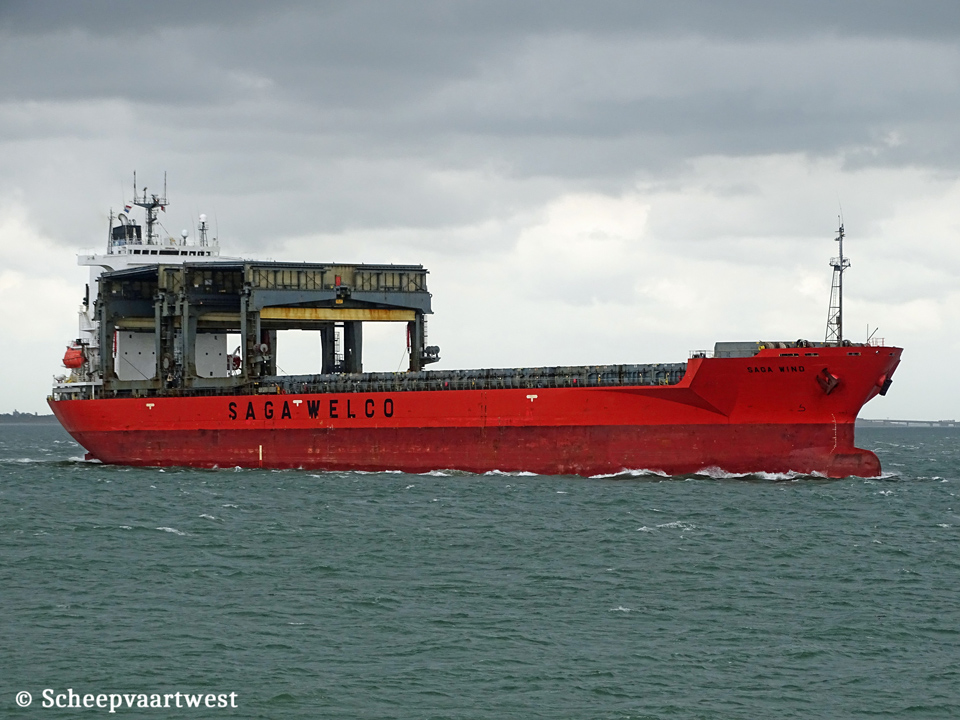

Saga Wind IMO 9074078 02

Westerschelde 18 July 2019

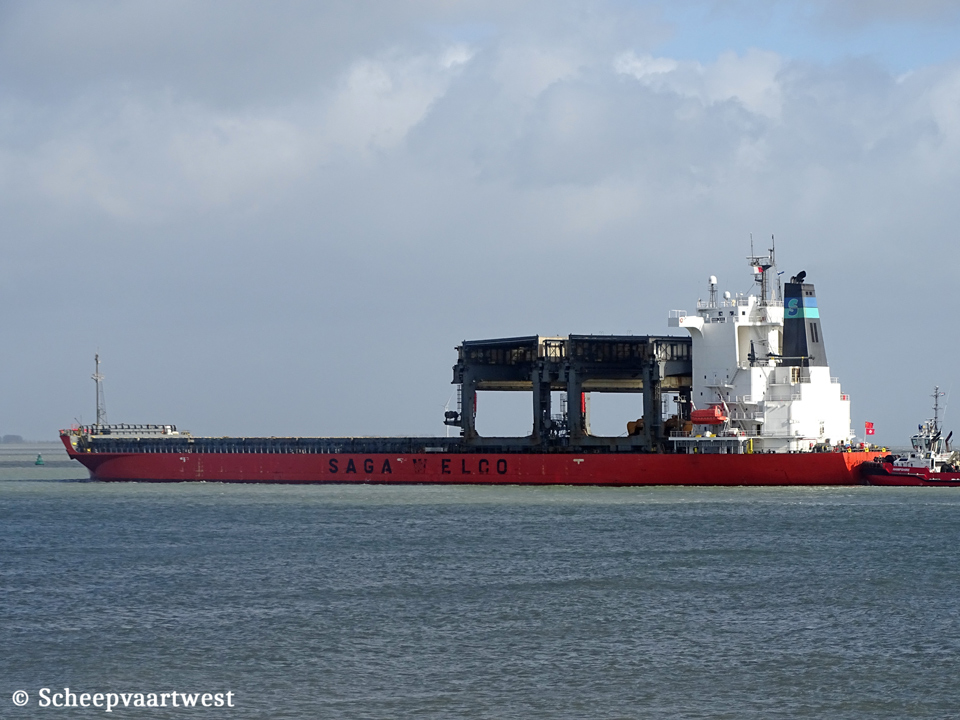

Saga Wind IMO 9074078 01
Westerschelde 05/06/19













Name

SAGA WIND

Type

Multi-purpose cargo ship - Single deck

Open hatch cargo ship

IMO-number

9074078

Call sign

VRUR7

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

29.381 t

DWT

Summer: 47.053 t

NT

14.155 t

Number of 20ft containers

On deck: 560

In hold: 1.128

Total: 1.688

Length

199,20 m overall

190,00 m between perpendiculars

Breadth

30,57 m extreme

Draught

Summer: 11,82 m

Depth

16,40 m

Speed

Max: 15,0 knots

Built

1994

Keel laid

27/05/1994

Launch date

09/08/1994

Date of completion

01/11/1994

Builder

Oshima Shipbuilding Co., Ltd.

Saikai

Japan

Yard number

10173

Hull material

Steel

Bulkheads

Transverse: 13

Longitudinal: 2

Main engine

1x Sulzer/Wärtsilä 7RTA52 - 2 stroke 7 cylinder combustion engine 8.952 kW / at 126,0 rpm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, composite

Generators

3x Daihatsu 6DL-22 - 4 stroke 6 cylinder 220 x 300 mm diesel engines each 736 kW connected with generators each 700 kW

Emergency generator

1x Deutz BF6L913 diesel generatorset

Number of cargo holds

10

Cargo hold capacity

Hold 1: 3 513 m³ / 124.060 ft³

Hold 2: 4.979 m³ / 175.832 ft³

Hold 3: 5.525 m³ / 195.114 ft³

Hold 4: 5.525 m³ / 195.114 ft³

Hold 5: 5.525 m³ / 195.114 ft³

Hold 6 :5.525 m³ / 195.114 ft³

Hold 7: 5.525 m³ / 195.114 ft³

Hold 8: 5.525 m³ / 195.114 ft³

Hold 9: 5.525 m³ / 195.114 ft³

Hold 10: 4.779 m³ / 168.769 ft³

Total: 51.946 m³ / 1.834.459 ft³

Number of hatches

10

Tank capacities

Ballast: 16.185,5 m³

Cargo gear

2x Travelling gantry cranes - SWL 40,0 t each with weather protection

Crew

21

Commercial manager

Saga Welco AS

Norway

ISM Manager

Anglo-Eastern Ship Management Ltd.

23rd Floor 248, Queen’s Road East Wan Chai

Hong Kong

Operator

Saga Welco AS

Tollbodgaten 22

3111 Tønsberg

Norway

Registered owner

Saga Shipholding Norway AS

Latest data adjustment

02 December 2020
