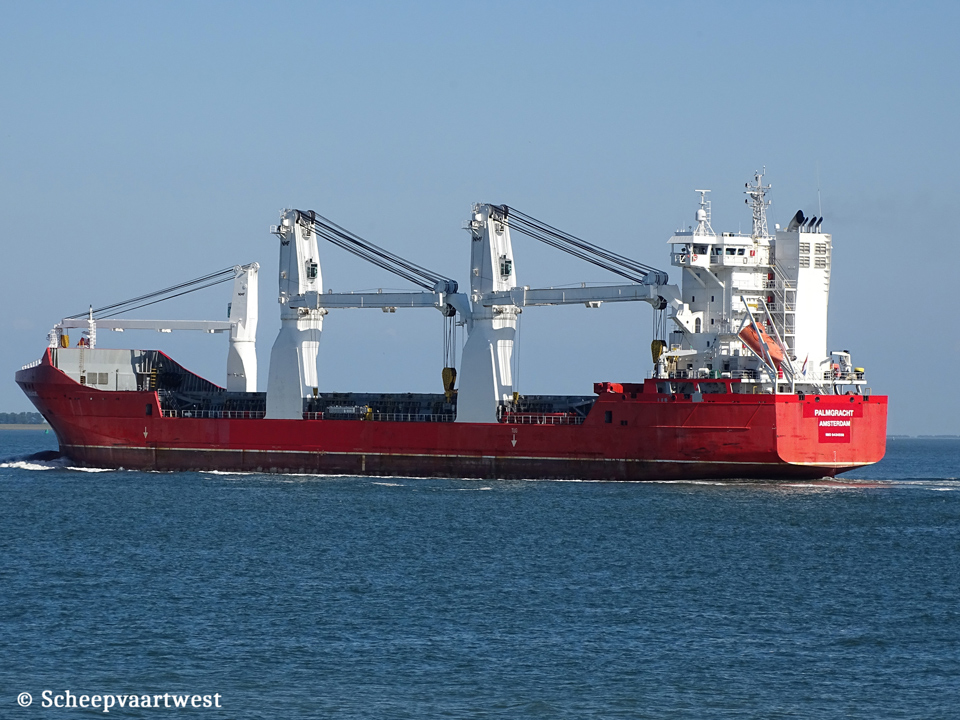

| Westerschelde 25 May 2020 |
|
Name |
PALMGRACHT |
|
Previous names |
10/2009 Launch as: Beluga Perfection 2010 - 11/2011 Beluga Bremen 11/2011 - 11/2018 HHL Valparaiso 11/2018 - 03/2019 Treasury One 03/2019 - 02/2020 Zea Gold |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9424558 |
|
Call sign |
PDUI |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
Previous flags |
11/2011 - 04/2020 Liberia, Monrovia - Call sign: D5AU3 |
|
GT |
17.634 t |
|
DWT |
19.413 t |
|
NT |
6.617 t |
|
Number of 20ft containers |
On deck: 488 Under deck: 424 Total: 912 |
|
Reefer capacity |
100 |
|
Length |
168,54 m overall 155,79 m registered |
|
Breadth |
25,20 m registered |
|
Draught |
9,50 m |
|
Air draft |
45,15 m to bottom of keel |
|
Forecastle |
15,77 m |
|
Poop |
16,20 m |
|
Depth |
13,85 m moulded |
|
Speed |
Eco: 14,0 knots Max.: 17,5 knots |
|
Built |
2010 |
|
Keel laid |
10/07/2009 |
|
Launch date |
22/10/2009 |
|
Date of completion |
15/03/2010 |
|
Builder |
Hudong-Zhonghua Shipbuilding (Group) Co., Ltd. 2851, Pudong Dadao 226361 Shanghai People's Republic of China |
|
Yard number |
H1527A |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 7L58/64 - 4 stroke single acting 7 cylinder 580 x 640 mm combustion engine 9.800 kW at 428 rpm Year of Manufacture: 2009 Manufacturer: MAN Diesel & Turbo SE Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at146 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 114,8 m² 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 32,0 m² Year of manufacture: 2009 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
3x Plant each 450 V - 1.063 kVA 1x Plant 450 V - 1.500 kVA 1x Plant 450 V - 187,5 kVA 2x Plants each 24 V - 170 Ah 2x Plants each 24 V - 200 Ah 2x Plants each 24 V - 200 Ah |
|
Shaft generator |
1x 1.500 kVA |
|
Generators |
3x Main diesel generatorsets each 1.063 kVA |
|
Emergency generator |
1x Diesel generatorset 187,5 kVA |
|
Batteries |
2x Batteries for UPS navigation each 200 Ah 2x Batteries for UPS radio each 200 Ah 2x Batteries for automation each 170 Ah |
|
Compressed air receivers |
2x Receivers each 1.500 litres - 30 bar 2x Receivers each 1.000 litres - 30 bar 1x Receiver 500 litres - 30 bar 1x Receiver 1.000 litres - 8 bar 1x Receiver 400 litres - 8 bar 1x Receiver 100 litres - 8 bar |
|
Bow thruster |
1x Transverse thruster 800 kW, forward |
|
Number of holds |
2x Double skin boxshaped Hold 1: 4,275 m³ /. 150.993 ft³ Hold 2: 22,062 m³ /. 779.230 ft³ Total: 26.337 m³ / 930.223 ft³ |
|
Hold ventilation |
Mechanical ventilation 6x Air changes per hour |
|
Number of hatches |
2 No. 1 hatch opening 22,94 x 13:76 m No. 2 hatch opening 82,40 x 18,66 m |
|
Hatch cover area |
1.956 m² |
|
Hatch covers type |
Hydraulic folding |
|
Type of tween deck |
Moveable, pontoon type |
|
Max permitted loads |
Tank top: 18,0 t/m² Hatch covers: 4,0 t/m² Tween deck: 3,5 t/m² |
|
Tank capacities |
Ballast: 12.000 m³ Freshwater: 200 m³ HFO: 1.500 m³ MGO: 200 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain length: 605,00 m Diameter: 66 |
|
Cargo gear |
2x NMF cranes - SWL 700 t each 1x NMF crane- SWL 180 t Combinable to 1.400 t SWL |
|
Crew size |
27 |
|
Manager |
Spliethoff's Bevrachtingskantoor B.V. Radarweg 36 1042 AA Amsterdam The Netherlands |
|
Previous managers |
03/2010 - 11/2011 Beluga Fleet Management G.m.b.H & Co. K.G., Bremen - Germany 11/2011 - 11/2018 Hansa Heavy Lift G.m.b.H., Hamburg - Germany 11/2018 - 03/2019 Marlow Ship Management, Monrovia - Liberia 03/2019 - 04/2020 IMM Shipping GmbH & Co. K.G., Bremen - Germany |
|
Registered owner |
Rederij Palmgracht, Amsterdam - The Netherlands Care of Spliethoff's Bevrachtingskantoor BV Radarweg 36 1042 AA Amsterdam The Netherlands |
|
Previous names & owners |
2010 - 11/2011 Beluga Bremen - Beluga Shipping G.m.b.H., Bremen - Germany 11/2011 - 11/2018 HHL Valparaiso - Hansa Heavy Lift UG (haftungsbeschränkt) Co. K.G. M.S. HHL Valparaiso, Hamburg - Germany 11/2018 - 03/2019 Treasury One - Treasury One UG, Monrovia - Liberia 03/2019 - 02/2020 Zea Gold - Zea P2-1400.1 G.m.b.H. & Co. K.G., Bremen - Germany 02/2020 - 09/2020 Palmgracht - B.V. Firmanten Palmgracht, Amsterdam - The Netherlands |
|
Latest data adjustment |
02 February 2022 |
