Westerschelde 27 June 2019 |
 |
 |
|
| Westerschelde 20/04/19 | WS 20/04/19 |
|
Name |

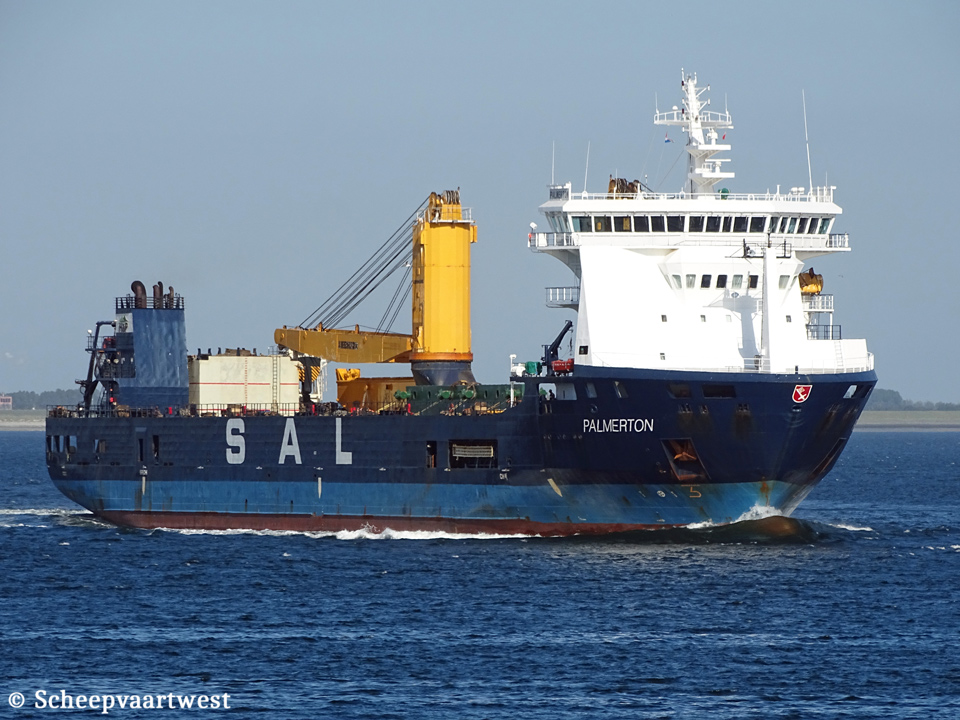

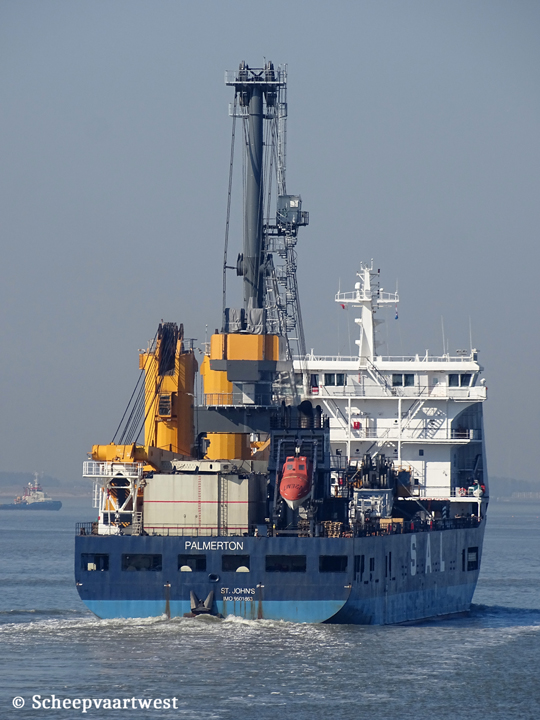

PALMERTON |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Heavy lift vessel type 116 |
|
IMO-number |
9501863 |
|
Call sign |
V2EM7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
11.473 t Suez: 12.209,91 t |
|
DWT |
Summer: 10.124,5 t |
|
NT |
3.834 t Suez: 11.317,04 t Panama: 9.915 t |
|
Displacement |
17.013 t |
|
Number of 20ft containers |
On deck: 340 In hold 256 Total: 596 |
|
Length |
132,93 m overall 122,85 m between perpendiculars |
|
Breadth |
23,04 m extreme |
|
Draught |
Summer: 7,80 m |
|
Freeboard |
3.612 mm |
|
Depth |
11,40 m |
|
Speed |
Max: 16,5 knots |
|
Built |
2009 |
|
Keel laid |
15/12/2008 |
|
Launch date |
25/07/2009 |
|
Date of completion |
08/12/2009 |
|
Builder |
Taizhou Kouan Shipbuilding Co., Ltd. |
|
Yard number |
TK0301 |
|
Hull material |
shipbuilding steel (standard) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6L48/60B - 4 stroke 6 cylinder 480 x 600 mm combustion engine 7.200 kW at 500 rpm Transmission: main propulsion acts through gear(s) on the propeller shaft Starter type: compressed air direct |
|
Propellers |
1x Controllable pitch propeller - aft at 141 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 23,1 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 76,0 m³ Manufacturer: Alfa Laval Aalborg A/S |
|
Shaft generator |
1x 1.500 kVA |
|
Generators |
2x MAN-B&W 7L23/30H main diesel generatorsets each 1.081 kVA |
|
Emergency generator |
1x MAN D2866LE203 diesel generatorset 362,5 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for other purpose 200 Ah 2x Batteries for UPS navigation each 135 Ah 2x Batteries for start emergency engine each 80 Ah |
|
Compressed air receivers |
2x Receivers each 1.250 litres - 30,0 bar 1x Receiver 1.000 litres - 11,0 bar 2x Receivers each 100 litres - 11,0 bar |
|
Bow thruster |
1x Jastram BU 90F - 600 kW / 815 hp |
|
Number of holds |
1 94,25 x 16,20 x 13,29 m |
|
Cargo hold capacity |
15.700 m³ |
|
Number of hatches |
1 |
|
Tank capacities |
Ballast: 7.950,7 m³ IFO: 1.186,52 m³ MGO: 84 m³ Fresh water: 171 m³ |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Length: 572,50 m Diameter: 56 mm |
|
Cargo gear |
2x Liebherr cranes - SWL 450 t each (in combination 900 t) 2x Auxiliary hoist - SWL 35 t each |
|
Crew size |
24 |
|
Manager |
Harren & Partner Ship Management GmbH & Co KG Hermann-Hollerith-Straße 10 28355 Bremen Germany |
|
Operator |
SAL Ship Management UG (haftungsbeschränkt) & Co. KG Brooktorkai 20 20457 Hamburg Germany |
|
Renamed |
2019 Caroline Antigua and Barbuda, St. John’s - Call sign: V2EM7 Owner: SAL Shipping UG (haftungsbeschränkt) & Co. KG MS "CAROLINE Manager: SAL Ship Management UG (haftungsbeschränkt) & Co. KG |
|
Latest data adjustment |
28 January 2021 |
