Antwerpen 06 November 2014 |
|
Name |

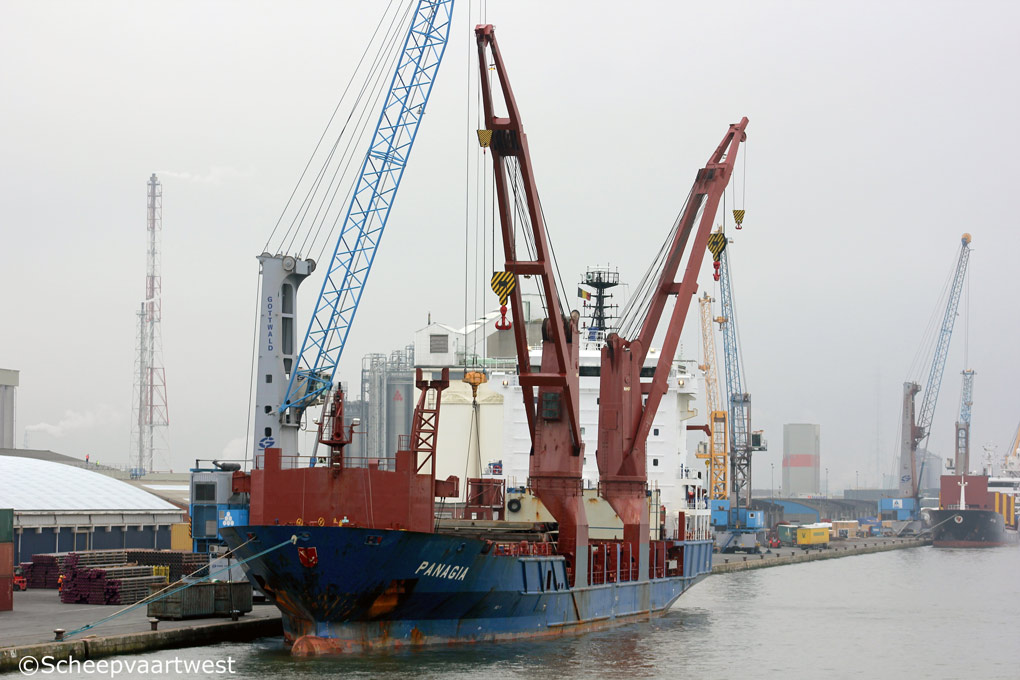

PANAGIA |
|
Type |
Multi-Purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Heavy lift carrier |
|
IMO-number |
9305295 |
|
Call sign |
V2OQ5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
7.002 t |
|
DWT |
Summer: 7.846,4 t |
|
NT |
3.375 t |
|
Number of 20ft containers |
On deck: 361 In hold: 238 Total: 599 |
|
Container capacity 14t |
361 |
|
Reefer sockets |
60 |
|
Length |
119,76 m overall 113,50 m between perpendiculars 113,75 m registered |
|
Breadth |
20,53 m extreme 20,20 m moulded |
|
Draught |
Summer: 7,59 m |
|
Freeboard |
2.220 mm |
|
Depth |
9,80 m |
|
Speed |
Max;: 16,5 knots |
|
Built |
2004 |
|
Keel laid |
15.08.2003 |
|
Launch date |
10.01.2004 |
|
Date of completion |
26.04.2004 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. |
|
Yard number |
SB328 |
|
Hull material |
Steel |
|
Hull type |
Double Bottom - Continuous from peak to peak |
|
Bulkheads |
7 |
|
Number of decks |
2 |
|
Main engine |
1x MaK 7M43 - 4 stroke 7 cylinder diesel engine 6.300 kW Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated ETA 300-40V 1x Thermal oil heater, oil fired - horizontal ET 1000-40 H |
|
Shaft generator |
1x 750 kVA |
|
Generators |
3x MAN D 2842 LE main diesel generatorsets 1x MAN D 2866 LXE 30 main diesel generatorset Total: 1.462,5 kVA |
|
Emergency generator |
1x Diesel generatorset 307 kVA |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2 |
|
Max. permitted loads |
Tanktop: 16,0 t/m² Tweendeck: 2,5 t/m² Hatchcover: 2,5 t/m² |
|
Tank capacities |
Ballast: 3.830 m³ Fuel oil: 717.2 m³ Marine diesel oil: 90,7 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 50 mm |
|
Cargo gear |
2x NMF Cranes - SWL 250 t each |
|
Manager |
Harren Ship Management GmbH & Co. KG |
|
Registered owner |
Harren & Partner Schiffahrts UG |
|
Latest data adjustment |
22 December 2016 |
