| Westerschelde 26 June 2020 |
|
Name |

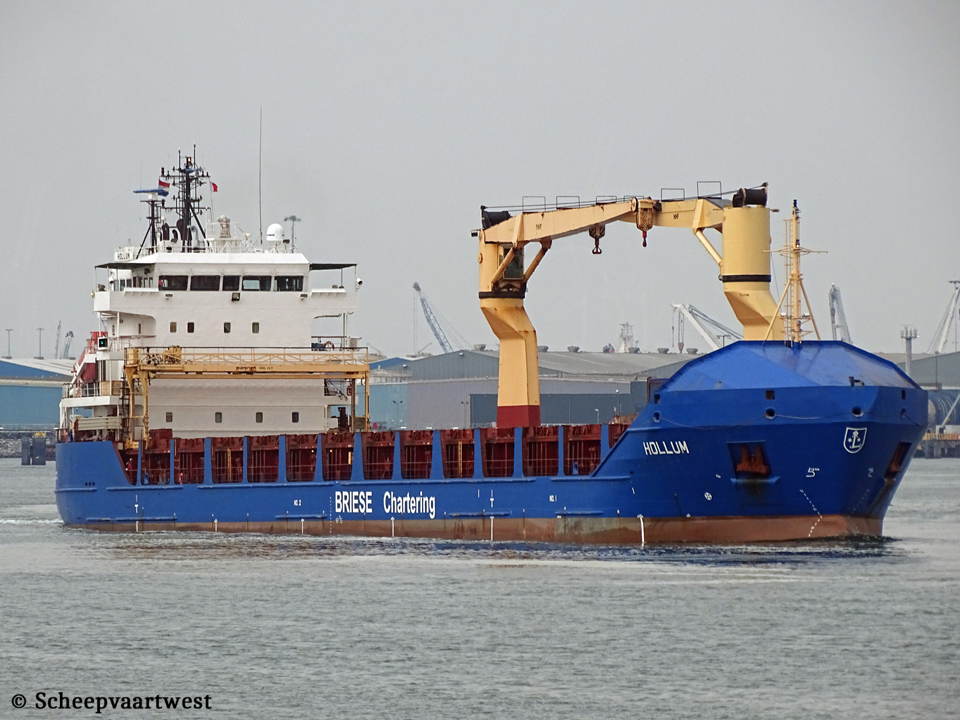

HOLLUM |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Tweendecker |
|
IMO-number |
9454216 |
|
Call sign |
CQAB8 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2009 - 2018 Antigua & Barbuda, St. John’s - Call sign: V2EC5 |
|
GT |
5.344 t |
|
DWT |
Summer: 6.199,88 t |
|
NT |
2.382 t |
|
Number of 20ft containers |
In hold: 180 On deck: 152 Total: 332 |
|
Number of 40ft containers |
In hold 75 + 30 TEU On deck 88 + 12 TEU Total: 143 - 42 TEU |
|
Container capacity 14t |
Total: 300 |
|
Length |
115,49 m overall 111,63 m between perpendiculars |
|
Breadth |
16,85 m extreme 16,49 m moulded |
|
Draught |
Summer: 5,70 m |
|
Freeboard |
2.262 mm |
|
Depth |
7,95 m |
|
Speed |
Service: 12,1 knots Max: 13,5 knots |
|
Built |
2009 |
|
Keel laid |
26/08/2008 |
|
Launch date |
12/01/2009 |
|
Date of completion |
02/12/2009 |
|
Builder |
Dalian Fishing Vessel Co. Dalian China |
|
Yard number |
2006-1204 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Movable bulkheads |
2x In hold No. 2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW at 600 rpm Builder: Caterpillar Motoren GmbH & Co., KG |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired Vitoplex 100 SX1 575 KW |
|
Shaft generator |
1x 400 kW |
|
Generators |
2x MAN D2876LE301 main diesel generatorsets each 345 kW |
|
Emergency generator |
1x MAN D2866E diesel generatorset 100 kW |
|
Bow thruster |
1x BU 50 F fixed propeller - 350 kW |
|
Number of holds |
2 Hold 1: 9,72 x 13,50 x 9,05 m Hold 2: 57,80 x 13,50 x 9,05 m |
|
Cargo hold capacity |
Hold 1: 2.373 m³ / 83.802 ft³ Hold 2: 6.956 m³ / 245.648 ft³ Total: 9.329 m³ / 329.450 ft³ |
|
Hold ventilation |
6x Air changes per hour |
|
Number of hatches |
2 Hatch 1: 19,72 x 13,50 m Hatch 2: 57,80 x 13,50 m |
|
Hatch type |
Pontoon type |
|
Floor space |
Under deck: 2.093 m² / 22.529 ft²Max permitted loads On deck: 1.064 m² / 11.159 ft² |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hold 1: 2,20 t/m² on tweendeck Hold 2: 2,20 t/m² on tweendeck On deck: 1,75 t/m² |
|
Tank capacities |
HFO: abt. 375,70 m³ MDO: abt. 84,00 m³ Ballast: abt. 2.640,00 m³t Freshwater: abt. 53,00 m³ t |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
Cargo gear |
2x NMF cranes situated portside - SWL each 60.00 t Combinable: 120 t |
|
Crew size |
12 |
|
Number of cabins |
10 |
|
Commercial manager |
Briese Schiffahrts GmbH & Co. Hafenstrasse 12 26789 Leer Germany |
|
ISM manager |
Briese Dry Cargo GmbH & Co. KG Hafenstrasse 12 26789 Leer Germany |
|
Operator |
Briese Chartering GmbH Co., KG |
|
Registered owner |
Briese Schiffahrts GmbH & Co KG MS "Hollum" Care of Briese Schiffahrts GmbH & Co KG , Hafenstrasse 12 26789 Leer Germany |
|
Latest data adjustment |
05 December 2021 |
