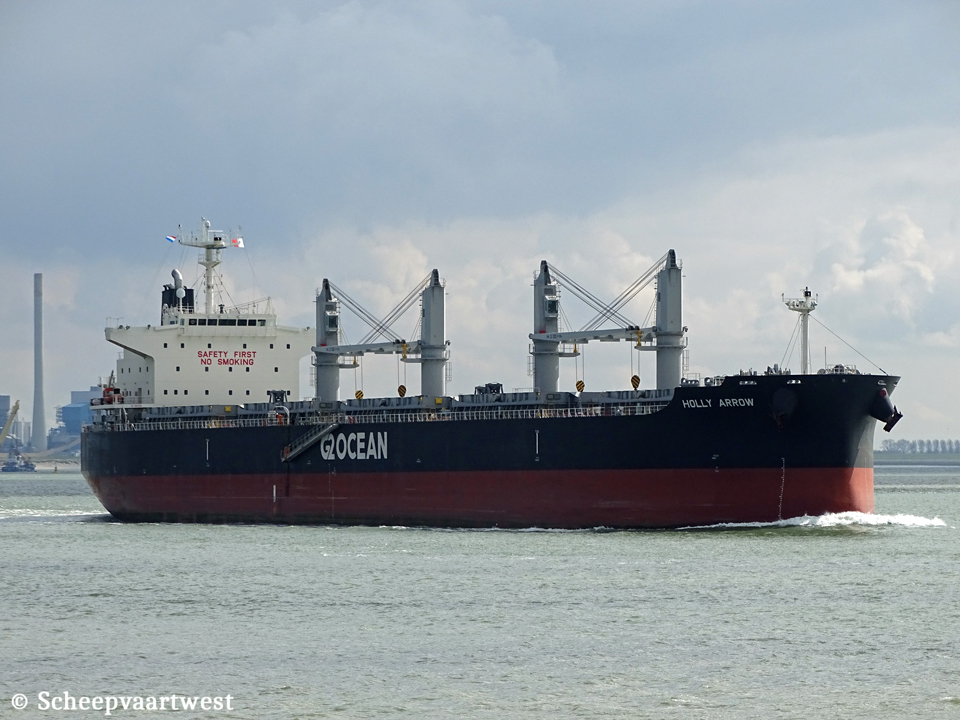

Holly Arrow IMO 9819985 01

Westerschelde 03 April 2019

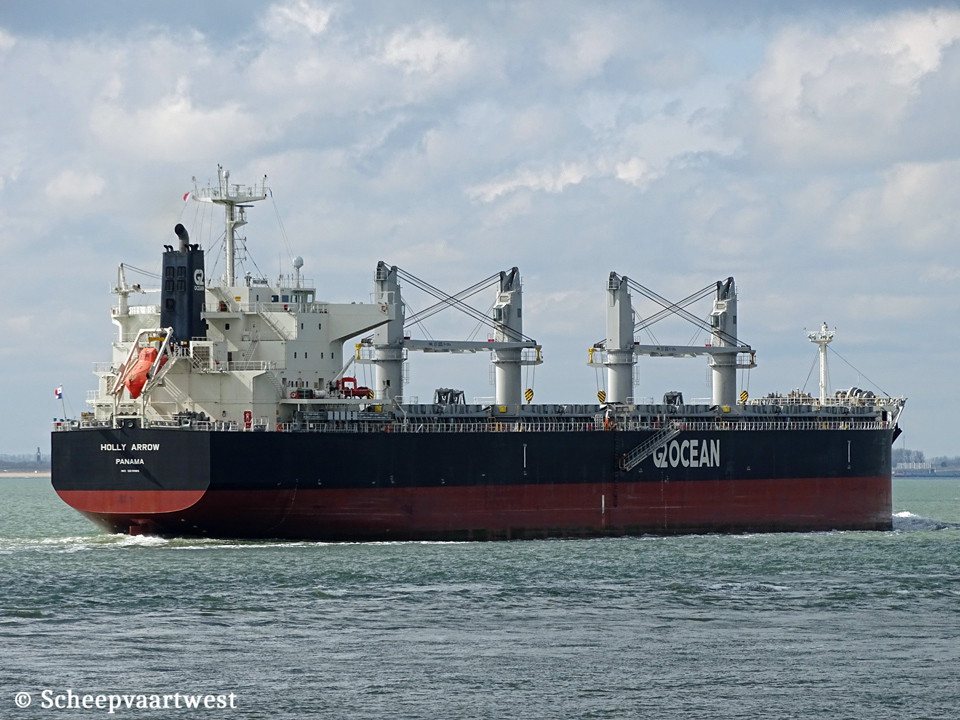

Holly Arrow IMO 9819985 02
Westerschelde 03/04/19













Name

HOLLY ARROW

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9819985

Call sign

H8GT

Flag

Republic of Panama

Port of registry

Panama City

GRT

35.516 t

DWT

60.803 t

NRT

18.019 t

Length

199,90 m overall

Breadth

32,24 m moulded

Draught

Summer: 13,03 m

Moulded L x B x D

197,00 x 32,24 x 18,60 m

Registered L x B x D

197,00 x 32,24 x 18,60 m

Freeboard

5.635 mm

Depth

18,60 m moulded

Speed

14,5 knots

Built

2018

Keel laid

09/12/2015

Launch date

27/10/2017

Date of completion

06/02/2018

Builder

Nantong COSCO KHI Ship Engineering Co. Ltd. (NACKS)

China

Yard number

NE238

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

1x MAN-B&W/Hudong 6S50ME-B9 2 stroke single acting 6 Cylinder 500 x 2.214 mm combustion engine 8.130 kW at 108,0 rpm

Manufacturer: Hudong Heavy Machinery ., Co. Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 490 mm

Propellers

1x fixed propeller

Boilers

1x Auxiliary vertical boiler - 0,7 PMa

Evaporation: 2,91 t/h

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 560 kW

Number of holds

5

Cargo hold capacity

Bale: 68.259 m³

Grain: 69.953 m³

Tank capacities

Fuel oil: 2.260 m³

Fresh water: 313 m³

Cargo gear

4x Deck cranes - SWL 31,0 t each

Crew

20

Manager

Fleet Ship Management Pte Ltd.

PSA Building 460, Alewander Road

Singapore city

Republic of Singapore

Operator

G2Ocean AS

Grieg-Gaarden, C. Sundts gate 17

5809 Bergen

Norway

Registered owner

311 Rainbow Shipping SA

Care of Doun Kisen KK

Japan

Latest data adjustment

01 July 2021
