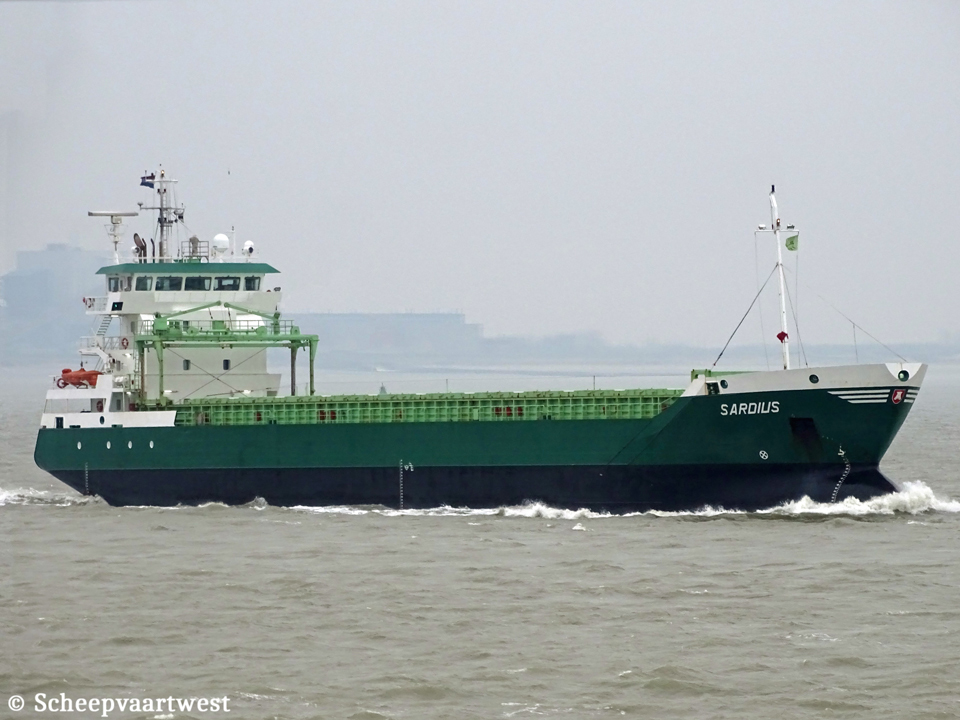

Sardius IMO 9518256 01

Westerschelde 29 December 2018

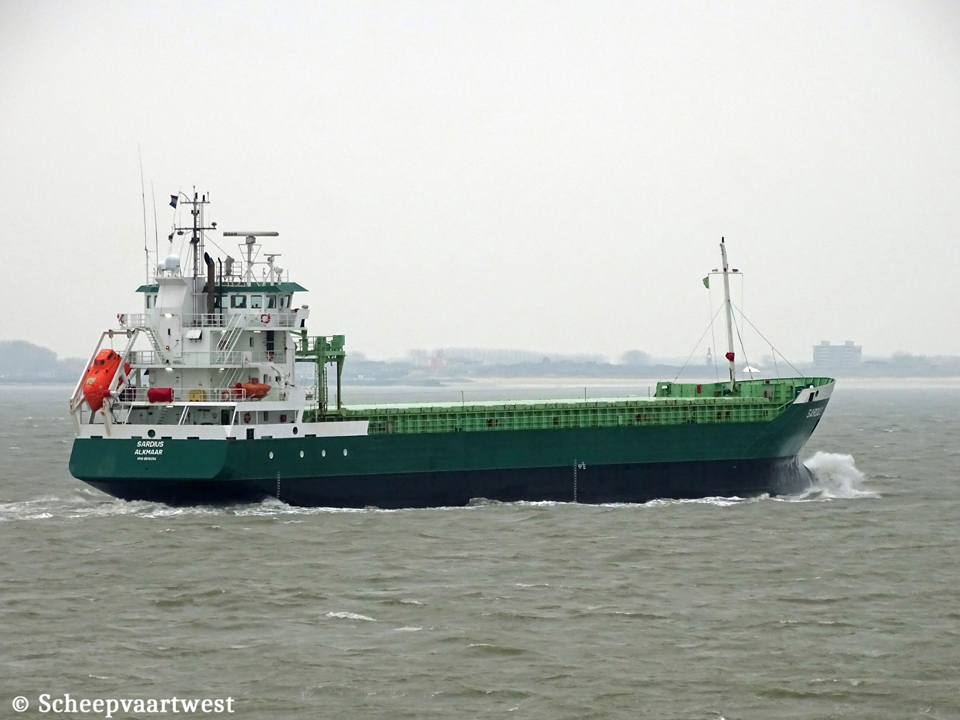

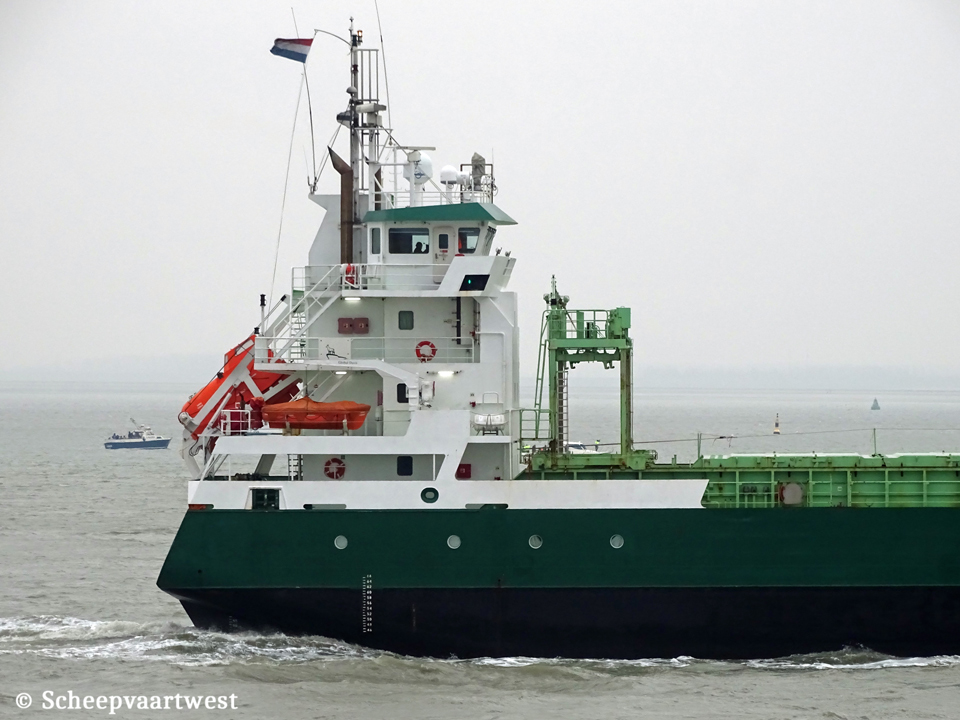

Sardius IMO 9518256 03   Sardius IMO 9518256 02
Westerschelde 29/12/18   Westerschelde 29/12/18













Name

SARDIUS

Type

General cargo ship - Heavycargo - Equipped for carriage of containers

IMO-number

9518256

Call sign

PCLD

Flag

The Netherlands

Port of registry

Alkmaar

GT

3.739 t

DWT

Summer: 5.200 t

DWCC

Summer: 4.850 t

NT

1.491 t

Number of 20ft containers

192

Length

99,99 m overall

96,67 m between perpendiculars

Breadth

13,35 m overall

Draught

Summer: 6,16 m

Air draft

24,00 m ballast

Freeboard

2.960 mm

Depth

9,10 m moulded

Speed

12,0 knots

Built

2011

Launch date

05/01/2011

Delivery

01/07/2011

Builder casco

Brodogradiliste Leda D.O.O.

Korcula

Croatia

Builder completion

Scheepswerf Peters BV

Kampen

The Netherlands

Yard number

1103

Hull material

Steel

Hull type

Double skinned

Continuous decks

1

Main engine

1x Wärtsilä 9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW / 2.446 bhp at 1.000 rpm

Build: 12/2008

Builder: Wärtsilä NSD Nederland B.V., Zwolle - The Netherlands

Propellers

1x Screw propeller controllable pitch - aft at 172 rpm

4 bladed - diameter 2.950 mm with nozzle

Generators

2x Main diesel generatorsets each 212 kVA - 170 kW - 247 hp

Emergency generator

1x Diesel generatorset 77 kVA - 62 kW - 101 hp

Bow thruster

1x 280 kW

Number of holds

1

61,80 x 11,20 x 9,60 m

Total capacity of holds

Grain/Bale: 6.645 m³ / 234.650 ft³

Hold ventilation

6x Air-changes per hour basis empty hold. Hold is fitted with dehumidifier system

Number of hatches

1

61,80 x 11,20 m

Hatches type

Coops&Nieborg hatch cover pontoons

Tank capacities

MGO: 366 m³

Water ballast: 1.909 m³

Fresh water: 42 m³

Manager

Wagenborg Shipping B.V.

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Registered owner

Sardius B.V.

Alkmaar

The Netherlands

Latest data adjustment

19 June 2021
