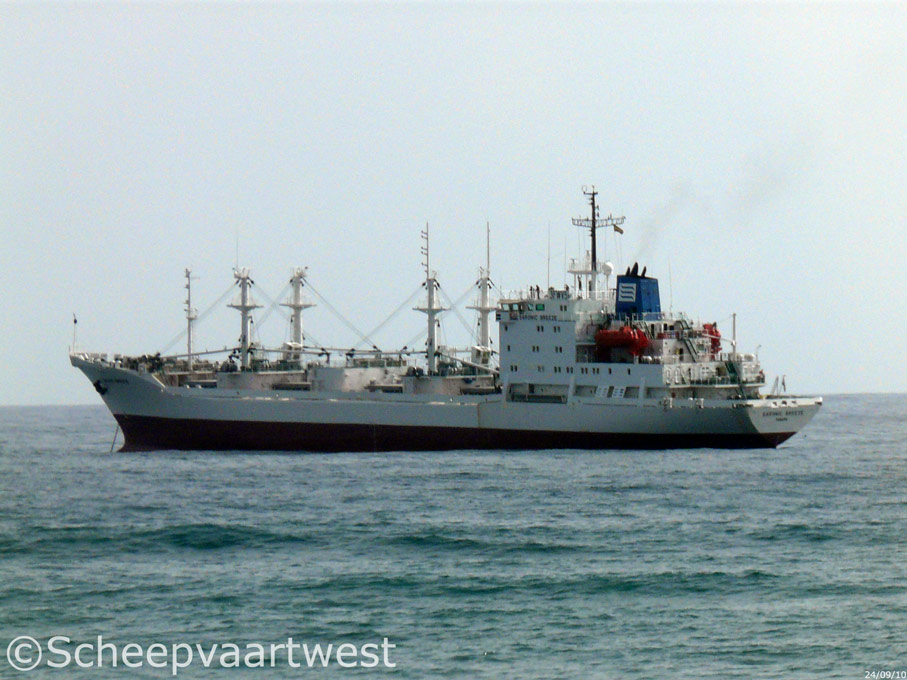

Saronic Breeze 01
Las Palmas De Gran Canaria 24 September 2010



Name

SARONIC BREEZE

Type

General cargo Ship - Equipped for carriage of containers

IMO-number

9081643

Call sign

3FWV5

Flag

Republic of Panama

Port of registry

Panama City

GT

6.964 t

DWT

6.712 t

NT

3.103 t

Number of 20ft containers

On deck: 41 / FEU 22

In Holds: 48

Length

133,95 overall

122,92 m registered

Breadth

18,00 m registered

Draught

7,887 m

Forecastle

18,00 m

Depth

10,70 m moulded

Speed

15,0 knots

Built

1996

Keel laid

20.09.1994

Launch date

14.05.1995

Date of completion

03.1996

Builder

61 Communards Shipbuilding
38, Admiralska Street
54014 Nikolaev
Ukraine

Yard number

1144

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x 6 DKRN 42/136-10 - 2 stroke single acting 6 cylinder 420 x 1.360 mm diesel engine - 5.100 kW at 168,0 rpm

Year of manufacture: 1993

Manufacturer: Bryansk Engineering Works
Ul. Ulyanova 26
241015 Bryansk
Russian Federation

Propeller

Solid propeller - aft

Boilers

1x Steam boiler, exhaust gas heated – 10,0 bar

Heating surface: 150,0 m²

Year of manufacture: 1994

1x Steam boiler, oil fired – 7,5 bar

Heating surface: 97,8 m²

Year of manufacture: 1985

Manufacturer: Black Sea Shipyard S.E.
1, Industrialnaya Street
54011 Nikolaev
Ukraine

Electric Installations

1x Plant 380/220 V - 688 kVA

1x Plant 380/220 V - 688 kVA

1x Plant 380/220 V - 688 kVA

1x Plant 380 V - 125 kVA

Generators

3x Main diesel generatorsets each 688 kVA

Emergency generator

1x Diesel generatorset 125 kVA

Compressed air receiver

1x Receiver 130 litres - 60,0 bar

2x Receivers each 2.250 litres - 30,0 bar

1x Receiver 1.000 litres - 30,0 bar

1x Receiver 150 litres - 30,0 bar

1x Receiver 1.000 litres - 10,0 bar

1x Receiver 500 litres - 10,0 bar

Cargo capacity

269.057 ft³ - 7.619 m³

Desk area

2.960 m²

Refrigerating

Controlled atmosphere: Mobile gas generating systems for controlled atmosphere taken on board on demand

Maker of refrigerating machinery: Sabroe Refrigeration A/S Marine Division
Christian X's Vej 201
8270 Hoejbjerg
Kingdom of Denmark

Controlled atmosphere short: CAmob

Temperature of insulated spaces, min.: -30°C

Temperature of sea water, max.: 32°C

Total capacity of holds: 7500 m³

Number of holds: 12

Number of insulated holds: 8

Number of separate cooled holds: 8

Compressors

3x Compressors Model: SAB 128 HF

Evaporators / Condensers

Number of Air cooler: 16

Number of Circulating fan: 58

Number of Condenser: 3

Number of Cooling Water Pump: 3

Number of Liquid Receiver: 3

Number of Oil Separator: 3

Number of Refrigerating machinery room fan: 3

Refrigerant: R 22

Kind of Cooling: Direct evaporation

Water ballast

544 m³

Lifting equipment

8x Derricks - SWL 5,0 t each

Anchor equipment

3x Anchors weight each 3.780 kg

Chain length: 522,50 m

Manager

Laskaridis Shipping Co. Ltd.
5, Xenias & Ch. Trikoupi Strs.
145 62 Kifissia , Athens
Greece

Charter

FSC Frigoship Chartering GmbH
Van-der-Smissen-Str. 2
D-22767 Hamburg
Germany

Owner

Pareefers KS
c/o Laskaridis Shipping Co. Ltd.
5, Xenias & Ch. Trikoupi Strs.
145 62 Kifissia , Athens
Greece
