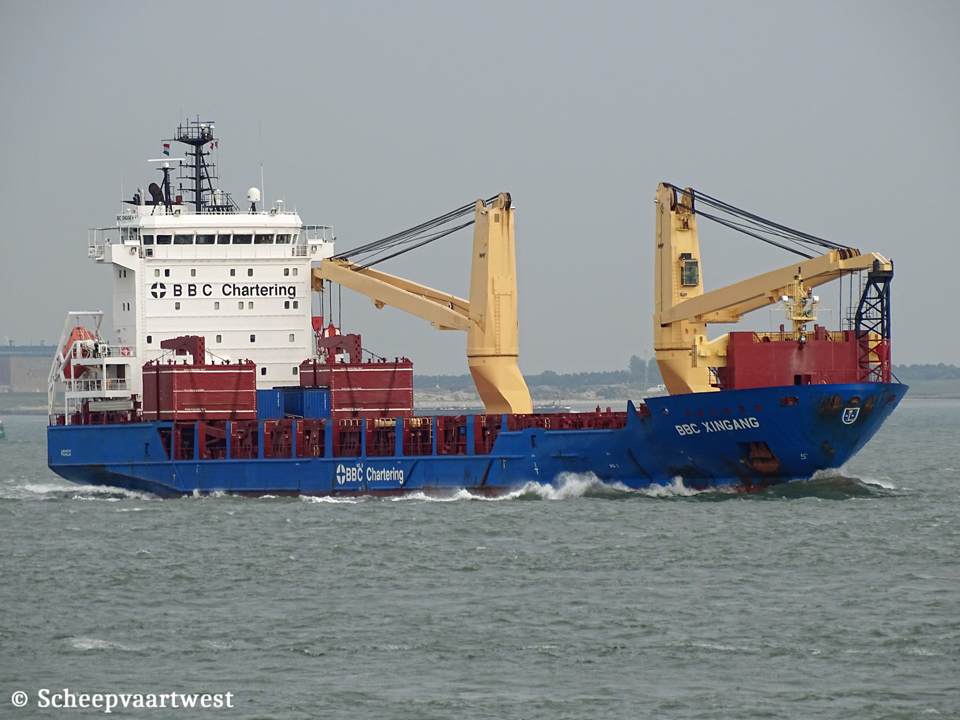

BBC Xingang IMO 9508483 01

Westerschelde 28 August 2019



Name

BBC XINGANG

Previous names

2013 Build as BBC Vinson

Type

Multi-purpose dry heavy crane carrier - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9508483

Call sign

V2GC3

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

8.255 t

DWT

Summer: 9.279,1 t

NT

3.966 t

Number of 20ft containers

In hold: 262

On deck: 398

Total: 660

Number of 40ft containers

In hold: 112 + 38 TEU

On deck: 166 + 66 TEU

Total: 278 + 104 TEU

Container capacity 14t

377

Reefer capacity

60

Length

125,75 m overall

119,29 m between perpendiculars

Breadth

22,32 m extreme

22,00 m moulded

Draught

Summer: 7,60 m

Height above keel

38,15 m

Forecastle

29,23 m

Poop

18,95 m

Depth

10,80 m to main deck

Speed

Max: 16,7 knots

Service: 15,2 knots

Built

2013

Keel laid

10/12/2008

Launch date

01/08/2012

Date of completion

03/05/2013

Builder

Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd.

Tanggu

China

Yard number

SB357-8

Hull material

Shipbuilding steel (standard)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Movable bulkheads

2x 2 positions

Continuous decks

1

Main engine

1x MaK 7M43C - 4 stroke 7 cylinder 430 x 610 mm combustion engine 6.300 kW at 500 rpm

Manufacturer: Caterpillar Motoren Rostock GmbH - Germany

Propellers

1x Controllable pitch propeller - aft at 155 rpm

Boilers

Thermal oil heater, oil fired - 10,0 bar

Heating surface: 34.7 m²

Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 84,0 m²

Manufacturer: MP Rohrverformungstechnik GmbH - Germany

Shaft generator

1x 600 kW / 750 kVA

Generators

3x MAN D2840LE301 main diesel generatorsets each 400 kW / 500 kVA

Emergency generator

1x MAN D2866LXE 20 diesel generatorset 250 kW / 306 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

1x Receiver 750 litres - 12,0 bar

Bow thruster

1x Transverse thruster 500 kW

Number of holds

2

Hold 1: 18,85 x 16,65 x 11,44 m

Hold 2: 57,20 x 16,97 x 12,20 m Box Shaped with tweendeck

Cargo hold capacity

Hold 1: 2.296 m³ / 81.082 ft³

Hold 2: 10.823 m³ / 382.211 ft³

Total: 13.119 m³ / 463.293 ft³

Hold ventilation

20 air changes per hour

Number of hatches

2

Hatch 1: 12,63 x 16,65 m / 6,22 x 10,44 m

Hatch 2: 57,20 x 16,97 m

Hatch type

Hatch 1: Pontoon type

Hatch 2: Folding type, can be partly opened and disconnected

Floor space

Under deck: 2.286 m² / 24.606 ft³

On deck: 1.245 m³ / 13.401 ft³

Tweendeck

Hold 1: 1 height

Hold 2: 2 heights

Max permitted loads

Tanktop: 16,0 t/m²

Hold 1: 2,50 t on tweendeck

Hold 2: 3,00 t on tweendeck

Hold 1: 2,50 t on deck

Hold 2: 3,50 t on deck

Tank capacities

IFO: 775 m³

MGO: 105 m³

Fresh water: 140 m³

Ballast: 3.950 m³

Anchor equipment

3x Anchors weight each: 4.890 kg

Length: 550,00 m

Diameter: 54 mm

Lifting equipment

2x NMF cranes - SWL 350 t capacity each / 700 t capacity combined

Situated portside

Crew size

16

Manager

Briese Heavylift GmbH & Co KG

Hafenstraße 12

26789 Leer

Germany

Operator

BBC Chartering GmbH

Leer

Germany

Registered owner

Briese Schiffahrts GmbH & Co. KG MS "Hatshausen"

Latest data adjustment

31 March 2021
