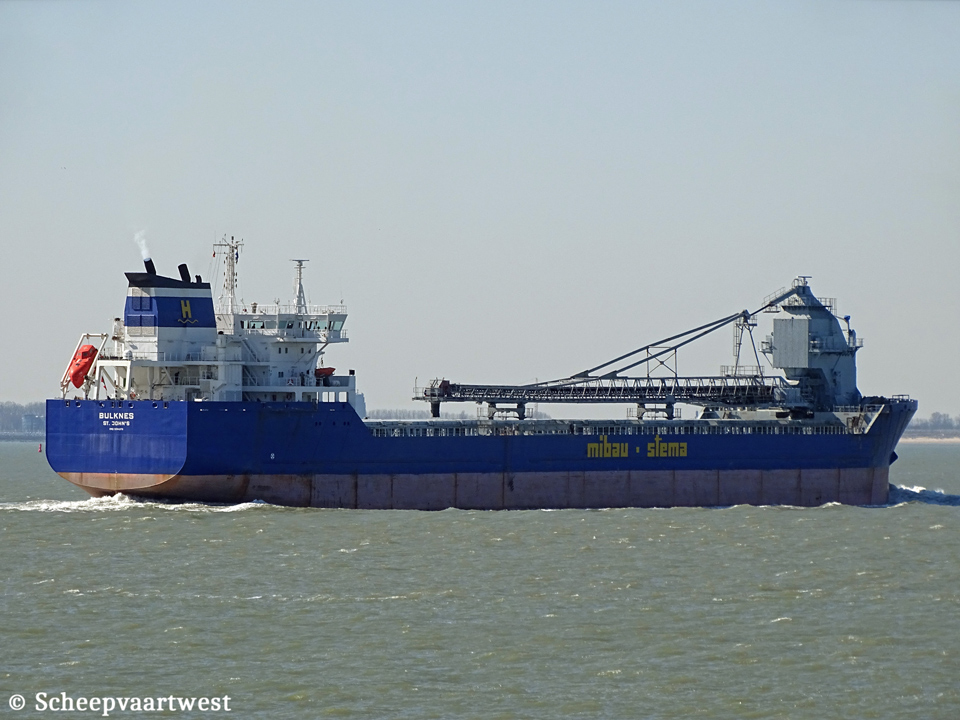

Bulknes IMO 9384370 01

Westerschelde 24 March 2020



Name

BULKNES

Type

Self discharging bulk carrier

IMO-number

9384370

Call sign

V2EG6

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

20.312 t

DWT

Summer: 33.174 t

NT

7.085 t

Light ship

8.000 t

Length

175,60 m overall

169,36 m between perpendiculars

Breadth

26,24 m extreme

26,00 m moulded

Draught

Summer: 10,81 m

Air draft

37,00 m

Freeboard

Summer: 4.300 mm

Winter: 4.600 mm

Depth

15,10 m

Speed

Service: 14,5 knots

Built

2009

Keel laid

18/12/2007

Launch date

23/02/2009

Date of completion

30/04/2009

Builder

J.J. Sietas Kg Schiffswerft GmbH & Co.

Hamburg

Germany

Yard number

1309

Hull material

Steel

Main engine

1x MaK 8M43C - 8 cylinder combustion engine 7.300 kW / 9.925 hp

Propellers

1x Controllable pitch propeller

Diameter: 5,00 m

Boilers

1x Thermal oil heater, oil fired

1x Thermal oil heater, exhaust heated

Shaft generator

1x 2.250 kVA

Generators

3x Caterpillar 3508DITA main diesel generatorsets each 970 kW / 1.138 kVA

Emergency generator

1x MAN D2866 LXE diesel generatorset

Bow thruster

1x Brunvoll FU 80 LTC 2250 - 1.500 kW, forward

1x Brunvoll FU 63 LTC 1750 - 1.000 kW, stern

Number of holds

7

Cargo hold capacity

33.100 t

Discharging rate

Max 3.000 t/h or 2.000 m³/h

Tank capacities

Ballast: 13.960,3 m³

Anchor equipment

Length: 605,00 m

Diameter: 64 mm

Cargo gear

Max outreach of boom 86,00 m from midships, 71,00 m from ship’s side

Crew size

15

Technical manager

HJH - Reederei Hans-Jürgen Hartmann MS „Bulknes“ GmbH & Co. KG

c/o HJH shipmanagement GmbH & Co. KG

Gewerbestraße 3

21781 Cadenberge

Germany

Time charter manager

Stema Shipping A/S

Nyhavn 28

DK – 6200 Aabenraa

Denmark

Operator

Mibau Baustoffhandel GmbH

Gewerbestraße 3

21781 Cadenberge

Germany

Registered owner

Reederei Hans-Jürgen Hartmann MS "BULKNES" GmbH & Co. KG

Germany

Latest data adjustment

27 March 2021
