Westerschelde 07 July 2016 |
|
Name |

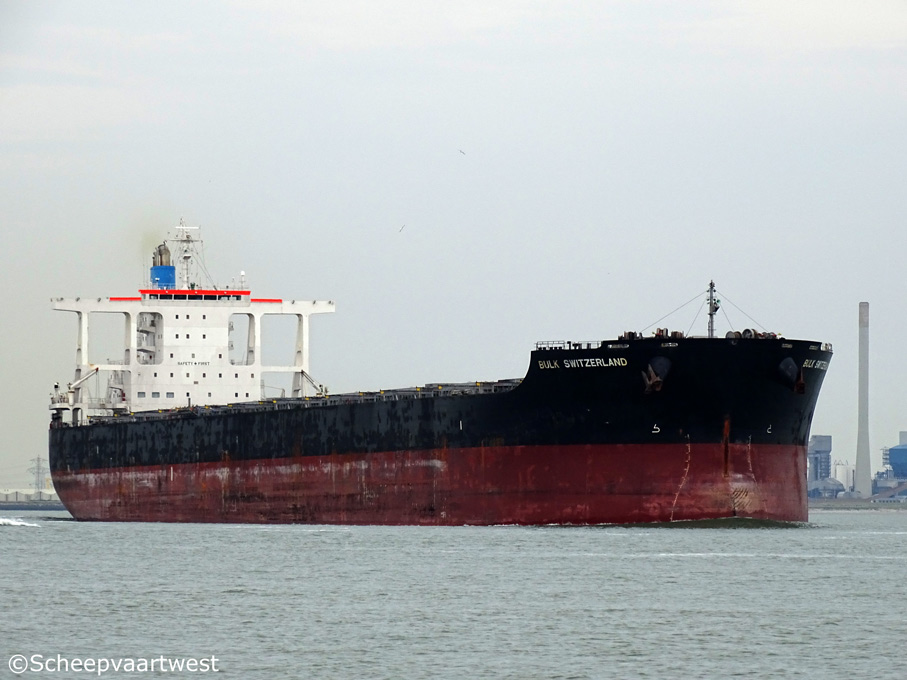

BULK SWITZERLAND |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9446441 |
|
Call sign |
3FZK2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
92.756 t registered |
|
DWT |
Summer: 181.709 t |
|
NT |
60.504 t registered |
|
Length |
291,98 m overall |
|
Breadth |
45,00 m moulded |
|
Draught |
Summer: 18,23 m |
|
Moulded L x B x D |
283,80 x 45,00 x 24,70 m |
|
Registered L x B x D |
284,28 x 45,00 x 24,70 m |
|
Freeboard |
6.516 mm |
|
Depth |
24,70 m moulded |
|
Speed |
17,3 knots |
|
Built |
2010 |
|
Keel laid |
27.02.2010 |
|
Launch date |
31.07.2010 |
|
Date of completion |
05.10.2010 |
|
Builder |
Imabari Shipbuilding Co., Ltd., Saijo Shipyard |
|
Yard number |
8088 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 6 cylinder 700 x 2.800 mm diesel engine 18.660 kW at 91,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 710 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 3,30 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators - 2.400 kVA |
|
Cargo hold capacity |
Grain: 201.243 m³ |
|
Tank capacities |
Fuel oil: 5.807 m³ Fresh water: 613 m³ Water ballast: 57.053 m³ |
|
Manager |
Eiko Kisen Co., Ltd. |
|
Previous owners |
Grace Hawk Shipping S.A. |
|
Latest data adjustment |
06 August 2016 |
