| Westerschelde 18 October 2019 |
|
Name |

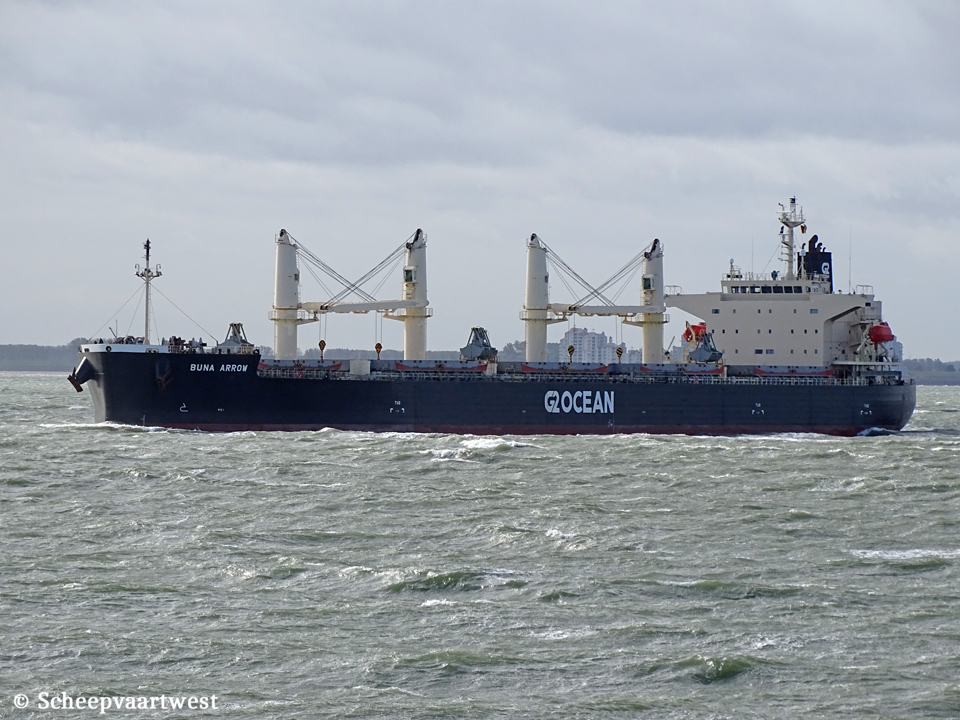

BUNA ARROW |
|
Type |
Geared grab fitted bulk carrier. - Strengthened for heavy cargo loading |
|
IMO-number |
9687071 |
|
Call sign |
HPXX |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
32.156 t |
|
DWT |
55.967 t |
|
NRT |
16.746 t |
|
Length |
189,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,57 m |
|
Moulded L x B x D |
185,79 x 32,26 x 17,87 m |
|
Registered L x B x D |
185,96 x 32,26 x 17,87 m |
|
Freeboard |
Summer: 5.354 mm |
|
Depth |
17,87 m moulded |
|
Speed |
15,9 knots |
|
Built |
2014 |
|
Keel laid |
28/12/2010 |
|
Launch date |
05/09/2014 |
|
Date of completion |
17/10/2014 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10651 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x MAN-B&W/Mitsui 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.200 mm combustion engine 7.612 kW / 10.348 hp at 102,0 rpm Manufacturer: Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 475 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 1,70 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Diesel generatorsets total 1.750 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 64.064 m³ Grain: 64.634 m³ |
|
Tank capacities |
Fuel oil: 2.162 m³ Fresh water: 321 m³ |
|
Cargo gear |
4x Deck cranes each 30,0 t Grab capacity: 12,0 m³ |
|
Commercial manager |
G2 Ocean AS C Sundts gate 17 5004 Bergen Norway |
|
ISM manager |
Ta-Tong Marine Co., Ltd. 8th Floor, Tai Hong Building, 71, Nanjing E Road, Section 2, Zhongshan District Taipei City, 10457 China, Republic of (Taiwan) |
|
Registered owner |
New Fortune Maritime SA Care of G2 Ocean AS C Sundts gate 17 5004 Bergen Norway |
|
Latest data adjustment |
19 April 2022 |
