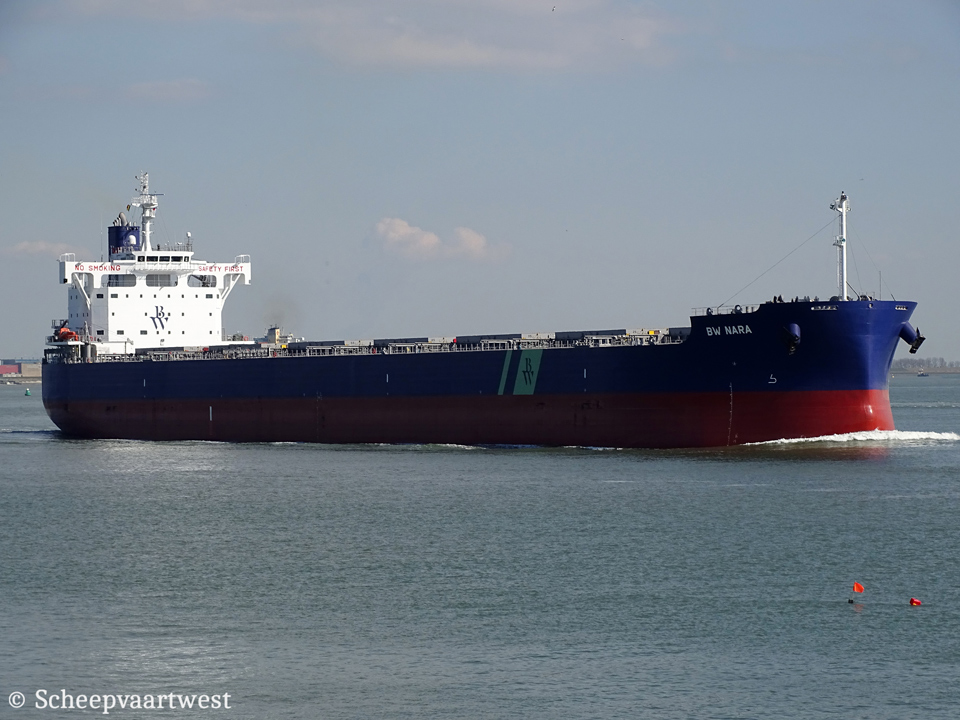

BW Nara 01

Westerschelde 01 April 2020

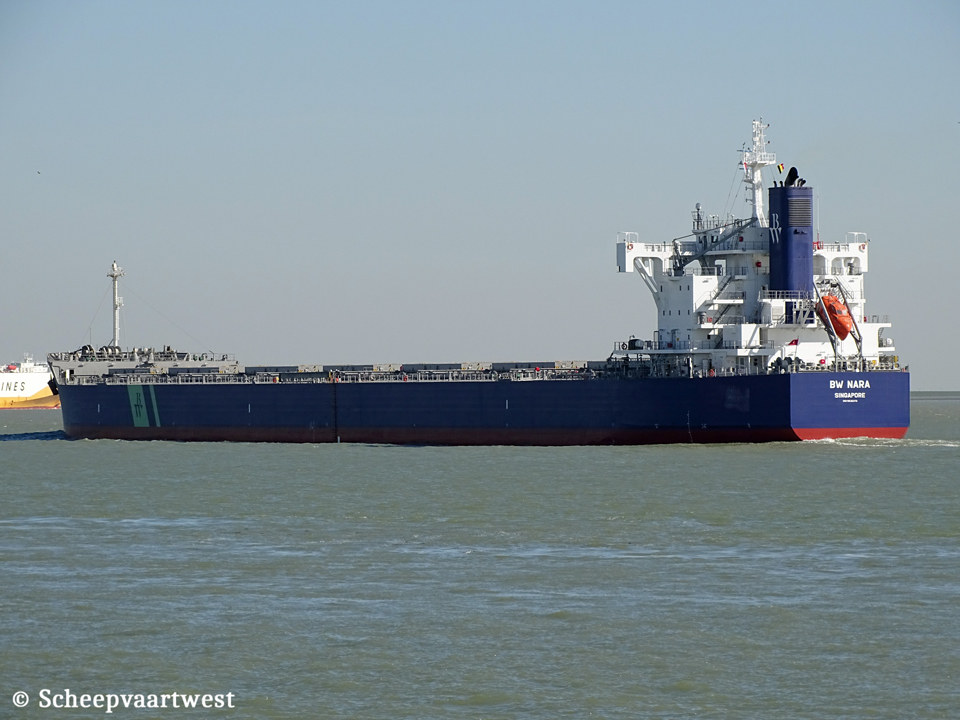

BW Nara IMO 9836373 02
Westerschelde 24/03/20













Name

BW NARA

Type

Bulk carrier - Strengthened for heavy cargo

IMO-number

9836373

Call sign

9V6306

Flag

Republic of Singapore

Port of registry

Singapore City

GT

43.044 t registered

DWT

81.759 t

NT

27.444 t registered

Length

228,99 m overall

Breadth

32,26 m moulded

Draught

Summer: 14,43 m

Moulded L x B x D

225,10 x 32,26x 20,00 m

Registered L x B x D

225,10 x 32,26x 20,00 m

Freeboard

Summer: 5.625 mm

Depth

20,00 m moulded

Speed

Max: 16,4 knots

Built

2020

Keel laid

28/11/2015

Launch date

11/10/2019

Date of completion

23/01/2020

Builder

Tsuneishi Heavy Industries (Cebu), Inc.

Balamban

Philippines

Yard number

SC331

Hull material

Steel

Hull type

Single hull

Main engine

1x 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 9.660 kW at 89,0 rpm

Manufacturer: Mitsui E&S Machinery Co., Ltd. Tamano Machinery Factory

Propeller shaft

1x oil lubrication shaft without monitoring device

Diameter: 560 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 1,85 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Generators total 2.406 kVA

Cargo hold capacity

Grain: 97.246,7 m³

Tank capacities

Fuel oil: 3.029,1 m³

Fresh water: 488,0 m³

Manager

MMSL Pte. Ltd.

182 Cecil Street #32-02 Frasers Tower

Singapore 069547

Republic of Singapore

Operator

BW Dry Cargo ApS

Amaliegade 33B, 3rd Floor

1256 Copenhagen K

Denmark

Registered owner

BW Maru Pte. Ltd.

Latest data adjustment

13 November 2020
