Malaga, Spain 10 September 2020 |
|

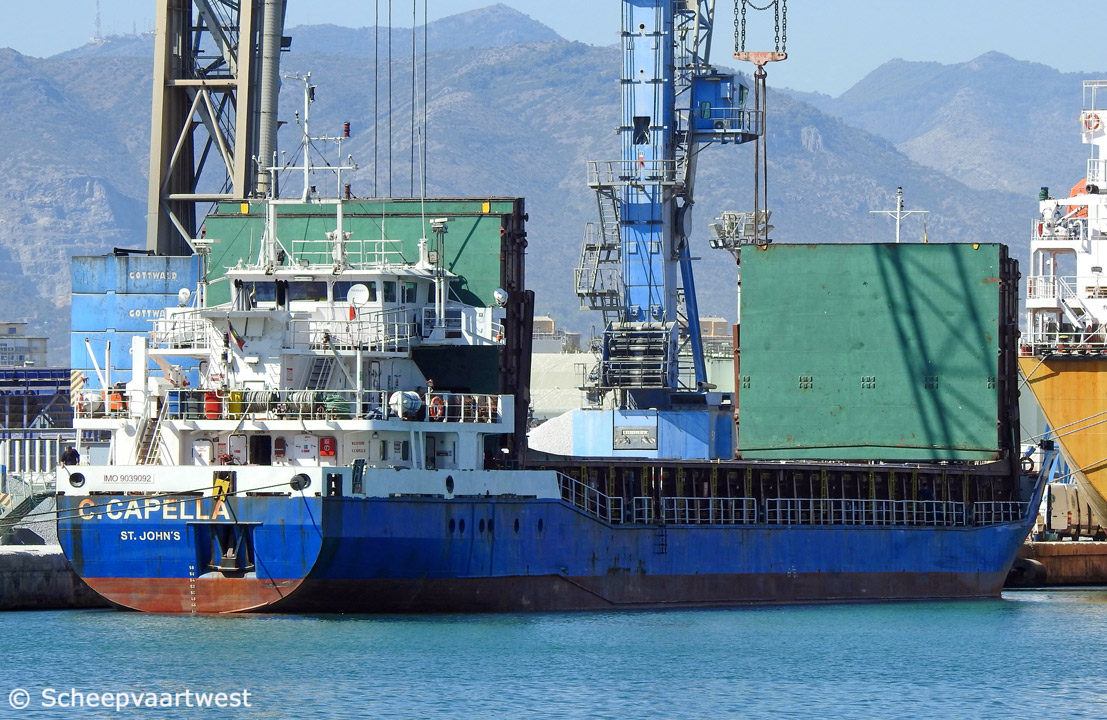

Name |
C. CAPELLA |
|
Previous names |
1994 - 2017 Nordstern |
|
Type |
General dry cargo ship |
|
IMO-number |
9039092 |
|
Call sign |
V2FZ |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
1994 - 1997 Cyprus, Limassol - Call sign: P3HY6 |
|
GT |
2.446 t |
|
DWT |
Summer: 3.735 t Winter: 3.617 t |
|
Displacement |
4.879 t |
|
Light weight |
1.189 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
In hold: 108 On deck: 68 Total: 176 |
|
Length |
87,76 m overall 81,32 m between perpendiculars |
|
Breadth |
12,90 m extreme |
|
Draught |
Summer: 5,49 m Winter: 5,38 m |
|
Air draft |
28,06 m |
|
Freeboard |
1.615 mm |
|
Depth |
7,10 m moulded |
|
Speed |
Max: 11,0 knots Service: 9,5 knots |
|
Built |
1994 |
|
Keel laid |
17/01/1994 |
|
Launch date |
17/05/1994 |
|
Date of completion |
01/09/1994 |
|
Builder |
Komarno Ship Yard Slovakia |
|
Yard number |
2914 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x DEUTZ MNM SBV8M628 - 4 stroke 8 cylinder 240 x 280 mm combustion engine 1.501 kW / 2.039 bhp at 900 rpm Build: 11/02/1994 Builder: Deutz MNM Motoren Werke Mannheim AG |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
3x MAN D 2866 E diesel generatorsets each 115 kW / 130 kVA - 400 Volt 50 Hz |
|
Emergency generator |
1 Deutz KHD F6L912 diesel generatorset 39 kW |
|
Bow thruster |
1x JASTRAM model BU40 - 185 kW |
|
Number of holds |
1 |
|
Cargo hold capacity |
Bale: 4.561 m³ Grain: 4.591 m³ |
|
Number of hatches |
1 56,50 x 10,20 m |
|
Hatch type |
Kvaerner Multifold Crocodile |
|
Max permissible load |
On deck-hatch cover: 1,56 t/m² |
|
Tank capacities |
Water ballast: 1.664,3 m³ Main engine: 166,0 m³ Auxiliary engines: 33 m³ |
|
Crew size |
9 |
|
Manager |
Epsilon Denizcilik Tic. Ltd. Sti. Altaycesme Mh. Samanyolu Sk. Mecit Varli Apt. No:19 D:15 Maltepe / Istanbul Turkey |
|
Previous managers |
1996 - 2006 Wessels Befrachtungs- und Bereederungs GmbH & Co. KG 1994 - 1996 River-Liner Holding GmbH & Co. KG |
|
Registered Owner |
C Nordstern Shipping Ltd. Trust Company Complex Ajeltake Riad, Ajeltake Island Republic Of Marshall Islands |
|
Latest data adjustment |
11 November 2020 |
