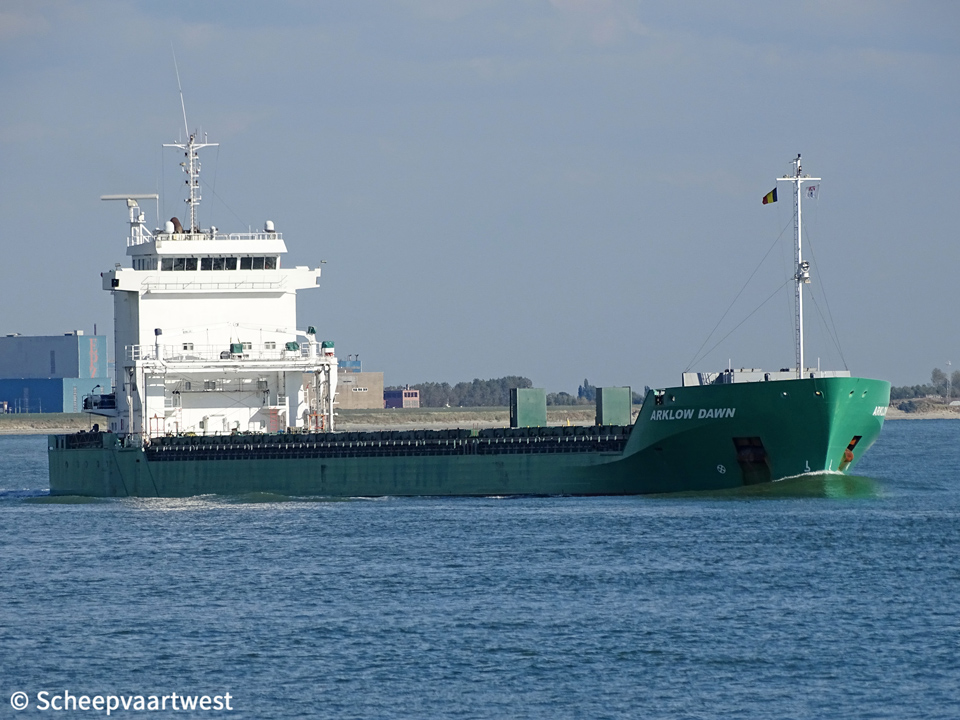

Arklow Dawn 01

Westerschelde 25 September 2018



Name

ARKLOW DAWN

Previous names

Build as: Flinterafrica

02/2011 - 12/2016 Flinter Atlantic

12/20166 - 09/2017 Rotterdam

Type

General cargo ship - Container ship - Heavycargo

IMO-number

9504138

Call sign

EITD9

Flag

Ireland

Port of registry

Arklow

Previous flags

02/2001 - 09/2017 The Netherlands, Rotterdam - Call sign: PCJK

GT

6.687 t

DWT

Summer: 10.806 t

Winter: 10.539 t

NT

3.448 t

Number of 20ft containers

356

Length

132,60 m overall

126,35 m between perpendiculars

Breadth

15,87 m moulded

Draught

Summer: 7,83 m

Winter: 7,67 m

Ballast: 7,53 m

Air draft

Min. 34,40 m

Freeboard

2.955 mm

Depth

10,78 m moulded

Speed

Max: 14,1 knots

Built

2011

Launch date

29/01/2011

Date of completion

23/02/2011

Builder

Scheepswerf Ferus Smit B.V.

Groningen

The Netherlands

Yard number

399

Hull material

Steel

Continuous decks

1

Main engine

1x MaK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 4.000 kW / 5.435 bhp at 600 rpm

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 159 rpm

Generators

1x Diesel generatorset 131 kVA - 105 kW - 455 hp

2x Diesel generatorsets each 388 kVA - 310 kW - 455 hp

Bow thruster

1x Electric bow thruster 573 kW

Number of holds

2

Hold 1: 32,50 x 13,20 x 10,62 m

Hold 2: 64,00 x 13,20 x 10,32 m

Total capacity of holds

Grain /bale

Hold 1: 4.157,71 m³ / 146.828 ft³

Hold 2: 8.851,08 m³ / 312.573 ft²

Total: 13.008,79 m³ / 459.401 ft³

Hold ventilation

Mechanical ventilation:

6 changes per hour in empty holds

Number of hatches

2

Hatch type

Pontoon

Max permitted loads

On hatches: 1,75 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Fuel oil: 587,6 m³

Lifting equipment

Gantry crane fitted with two derricks

Crew

9

Manager

Arklow Shipping Ltd.

Arklow

Irish Republic

Previous managers

02/2011 - 12/2016 Flinter Management B.V., Barendrecht - The Netherlands

12/2016 - 09/2017 Management Facilities Group B.V., Farmsum - The Netherlands

Registered owner

Kilbride Shipping Ltd.

Arklow

Irish Republic

Previous names & owners

02/2011 - 12/2016 Flinter Atlantic - Flinter Atlantic B.V., Rotterdam - The Netherlands

12/20166 - 09/2017 Rotterdam - Flinter Atlantic B.V., Rotterdam - The Netherlands

Latest data adjustment

15 October 2020
