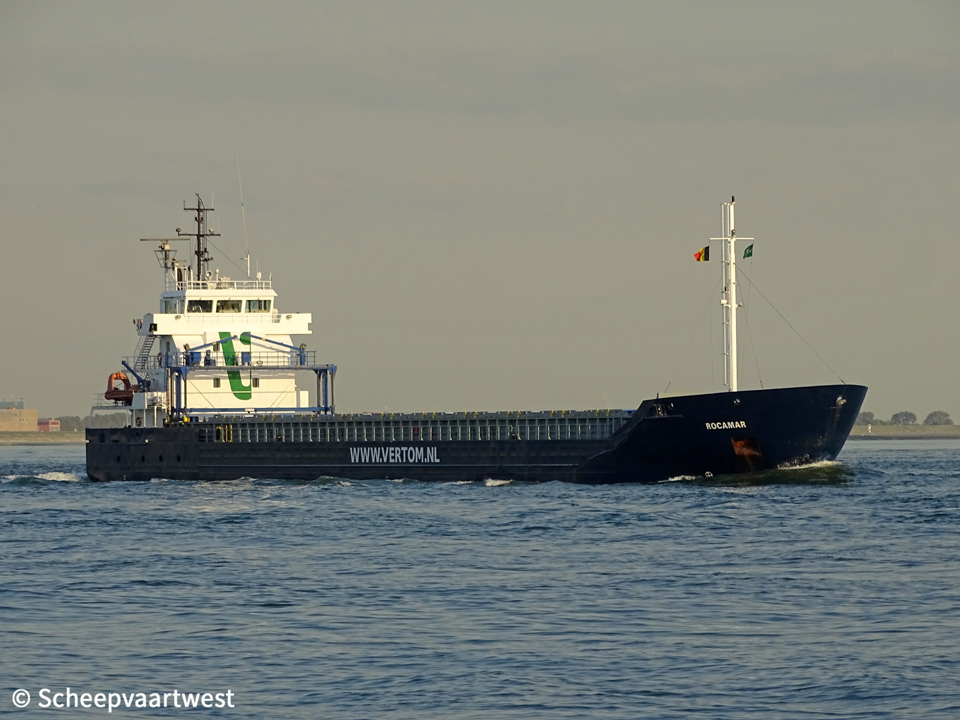

Rocamar 01

Westerschelde 25 September 2018

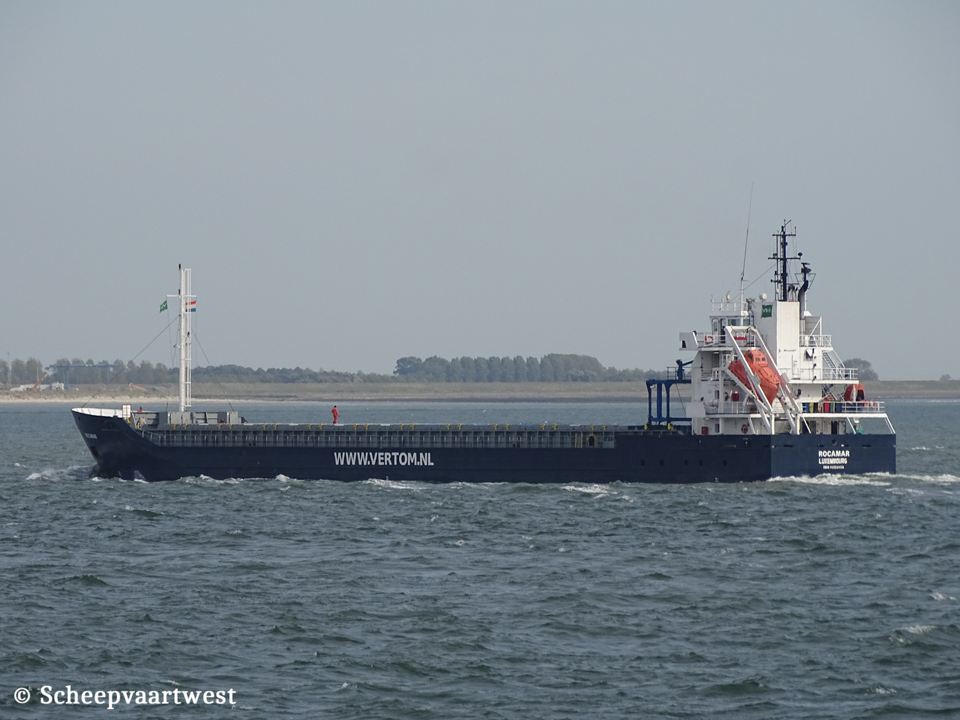

Rocamar 02
Westerschelde 20/04/18









Name

ROCAMAR

Previous names

2011 Launch as: Gröna Jarssun

2011 - 2017 Emswave

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9552056

Call sign

LXRQ

Flag

G.D. Luxembourg

Port of registry

Luxembourg City

Previous flags

2011 - 2017 Antigua & Barbuda, St. John’s - Call sign: V2FR6

GT

3.500 t

DWT

Summer: 5.233,8 t

DWCC

Summer/Winter: 5.000 t

NT

1.382

Number of 20ft containers

188

Length

99,48 m overall

92,50 m between perpendiculars

Breadth

13,53 m extreme

13,34 m moulded

Draught

Summer: 6,15 m

Air draft

24,50 m from keel

Depth

9,10 m

Speed

Max: 12,0 knots

Built

2011

Keel laid

21/12/2008

Launch date

17/05/2011

Date of completion

11/06/2011

Builder

Western Marine Shipyard Ltd.

Chittagong

Bangladesh

Yard number

928/05

Hull material

Steel

Movable bulkheads

2

Continuous decks

1

Main engine

1x MaK-Caterpillar 6M25 C - 4 stroke 6 cylinder combustion engine 2.000 kW / 2.720 bhp at 750 rpm

Builder: :Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Controllable pitch propeller

Boilers

Auxiliary boiler, oil/gas fired 1(Central heating Boiler)

Shaft generator

1x 356 kW - 400 Volt

Generators

2x SISU 74.475 CTAG-4V main diesel generatorsets each 168 kW - 400 Volt

Emergency & harbour gen.

1x SISU 49.548DTG diesel generatorset 65 kW

Bow thruster

280 kW

Number of holds

1

61,80 x 11,20 x 9,60 m

Cargo hold capacity

Grain: 6.646 m³ / 234.655 ft³

Number of hatches

1

61,80 x 11,20 m

Hatch cover type

Pontoon

Max permitted loads

Tanktop: 15,0 t/m²

Hatch covers: 1,75 t/m²

Tank capacities

Ballast: 1.911,8 m³

Anchor equipment

Length: 467,50 m

Diameter: 36 mm

Manager

Vertom Bereederungs GmbH & Co. KG

Borgwardring 80

26802 Moormerland

Germany

Registered owner

Vertom-Bojen Schiffahrts MS "Merle" GmbH & Co.

Latest data adjustment

11 September 2011
