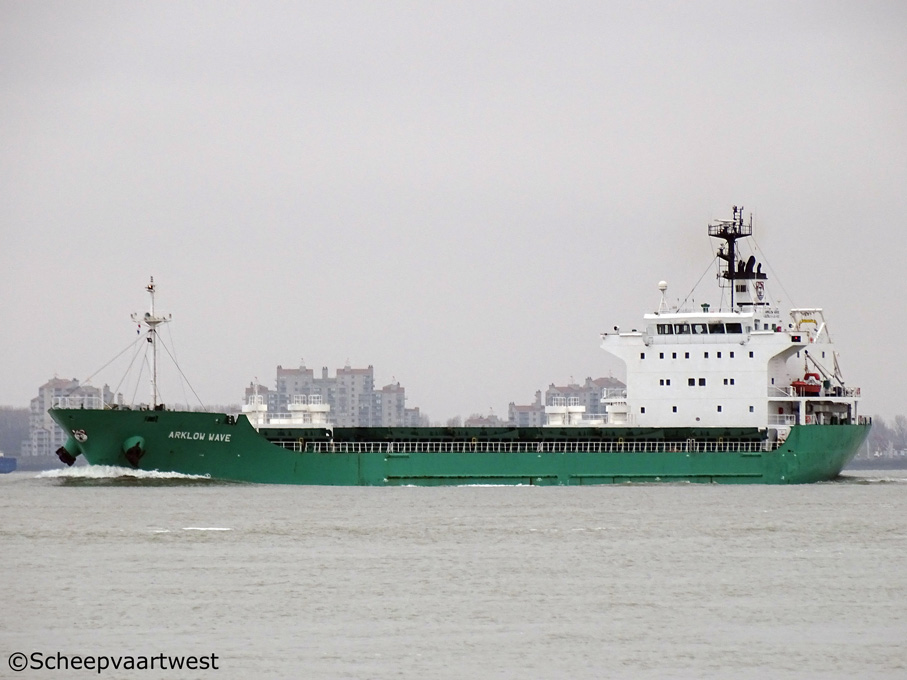

| Westerschelde 18 March 2016 |
 |
 |
|

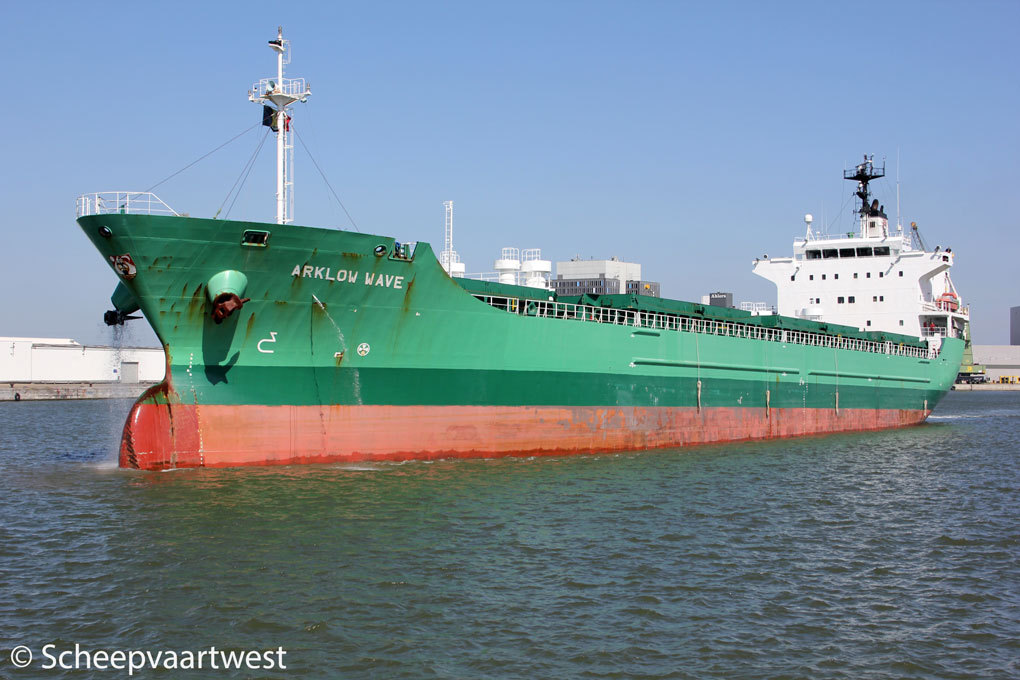

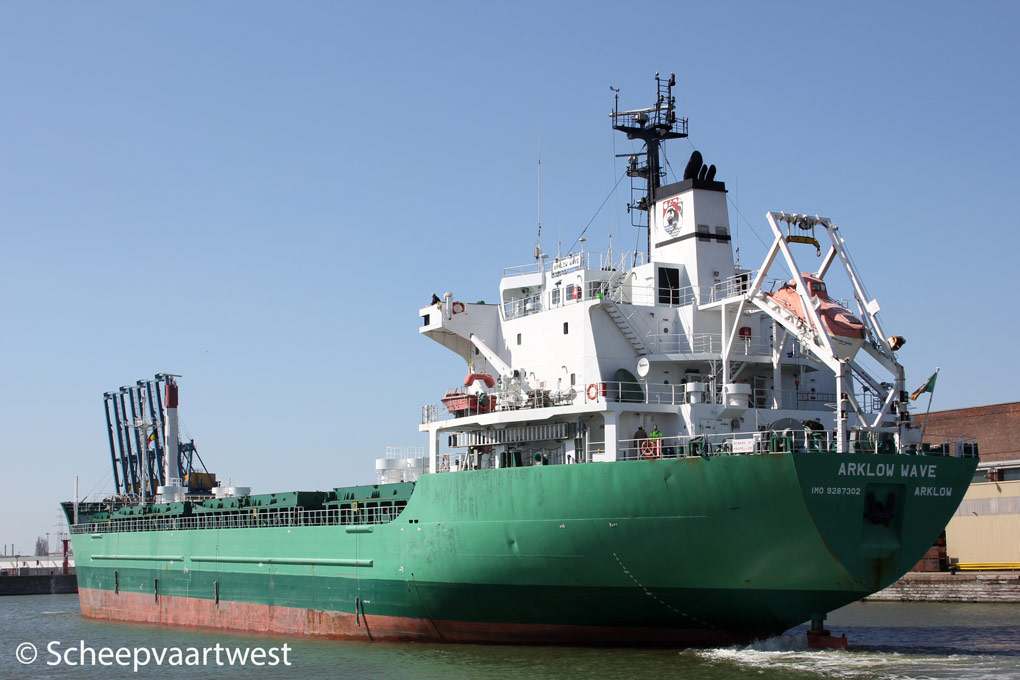

| Antwerpen 04/04/13 | Antwerpen 20/04/13 |
|
Name |
ARKLOW WAVE |
|
Type |
General cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9287302 |
|
Call sign |
EIJY |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
8.938 t |
|
DWT |
13.977 t |
|
NT |
4.815 t |
|
Displacement |
17.877 t |
|
Length |
136,40 m overall 126,88 m between perpendiculars |
|
Breadth |
21,60 m extreme |
|
Draught |
8,35 m loaded 6,00 m at max. ballast |
|
Air draft |
Min. 30,00 m |
|
Freeboard |
2.967 mm |
|
Depth |
11,30 m moulded |
|
Speed |
13,3 knots |
|
Built |
2003 |
|
Date of completion |
05.11.2003 |
|
Builder |
Kyokuyo Shipyard Corporation Shimonoseki |
|
Yard number |
447 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L38B - 4 stroke 6 cylinder 380 x 475 mm diesel engine 4.320 kW / 5910 hp at 600 rpm Built: 2003 Builder: Wärtsilä Italia S.p.A., Trieste - Italy |
|
Gearbox |
1x Reinjtes reduction gear |
|
Propellers |
1x Screw propeller controllable pitch at 139 rpm |
|
Boilers |
1x CHO Miura 9,50 m² |
|
Electric installations |
Power voltage: 390 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 1.194 kVA - 955 kW |
|
Generators |
2x Yanmar diesel engines each 550 kW coupled with 2 Taiyo electric generators each 480 kW / 600 kVA |
|
Emergency generator |
1x Deutz diesel engine 114 kW coupled with a Taiyo electric generator 100 kW |
|
Bow thruster |
1x 526 kW |
|
Number of holds |
4 |
|
Hold capacity |
Grain: Hold 1: 3.234 m³ / 114.215 ft³ Hold 2: 5.321 m³ / 187.902 ft³ Hold 3: 5.439 m³ / 192.073 ft³ Hold 4: 3.317 m³ / 117.143 ft³ Total: 17.311 m³ / 611.333 ft³ Bale: Hold 1: 3.131 m³ / 110.581 ft³ Hold 2: 5.177 m³ / 182.822 ft³ Hold 3: 5.293 m³ / 186.926 ft³ Hold 4: 3.240 m³ / 114.409 ft³ Total: 16.841 m³ / 594.738 ft³ |
|
Number of hatches |
4 Dimensions: 1x 14,00 x 12,60 m 2x 21,00 x 17,60 m 1x 12,60 x 17,60 m |
|
Hatches type |
Weather tight folding type |
|
Max. permitted loads |
Maximum hatch top loading: 1,8 t/m² Maximum tanktop loading: 20,0 t/m² |
|
Tank capacities |
Ballast: 4.100 t |
|
Ventilation |
Mechanical ventilation - 20 changes per hour in empty holds |
|
Manager |
Arklow Shipping (Head Office) |
|
Owner |
Arklow Shipping (Head Office) |
|
Last update |
01.05.2013 |
