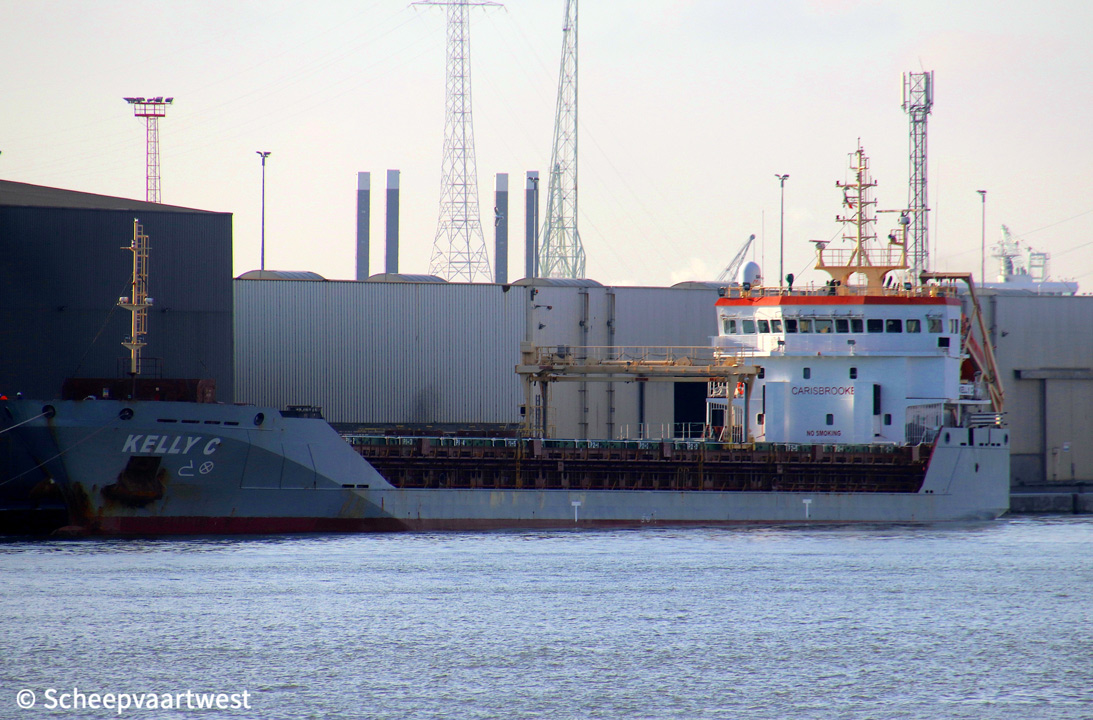

Kelly C 01

Antwerpen 16 January 2020



Name

KELLY C

Type

General cargo ship - heavycargo - equipped for carriage of containers

IMO-number

9558024

Call sign

2DNZ7

Flag

Isle of Wight - United Kingdom

Port of registry

Cowes

GT

4.151 t

DWT

Summer: 6.250 t

NT

2.323 t

Number of 20ft containers

70

Length

106,07 m overall

100,92 m between perpendiculars

Breadth

15,50 m

Draught

Max: 6,75 m

Air draft

24,10 m in ballast

Freeboard

1.522 mm

Depth

8,14 m

Speed

10,3 knots

Built

2010

Keel laid

25/11/2008

Launch date

13/06/2010

Date of completion

11/10/2010

Builder

Jiangsu Yangzijiang Shipbuilding Co.,Ltd.

Jiangyin

China

Yard number

YZJ2008-898

Hull material

Steel

Hull type

Single hull

Watertight compartments

3

Movable bulkheads

1x Vertical moveable bulkhead in each hold enabling 4 compartments

Continuous decks

1

Main engine

1x MaK 6M25C - 4 stroke 6 cylinder 250 x 400 mm combustion engine 1.980 kW / 2.690 bhp at 750 rpm

Build: 17/03/2010

Builder: Caterpillar Motoren GmbH & Co. Ltd., Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 170 rpm

Boilers

1x CHO 6,90 m² - 6,0 bar

Builder: Viessmann Werke

Shaft generator

1x 390 kVA - 312 kW

Generators

3x Main diesel generatorsets 200 kVA - 160 kW - 247 hp

Bow thruster

250 kW

Number of holds

2

Hold 1: 34,5 0x 11,70 x 9,30 m (narrows aft part 6,50 m to 6,00 m)

Hold 2: 45,50 x 11,70 x 9,30 m (narrows fore part 11,20 m to 6,00 m)

Total capacity of holds

Grain: 8.312,43 m³ / 290.480 ft³

Number of hatches

2

Hatch 1: 34,5 0x 11,70 m

Hatch 2: 45,50 x 11,70 m

Hatch type

10x Hatches pontoon type

Max. permitted loads

Tanktop: 15,0 t/m²

Hatchcovers: 2,20 t/m²

Tank capacities

Fuel: 324,57 m³

Lifting equipment

Gantry crane fitted

Crew size

10

Manager

Carisbrooke Shipping Ltd.

Cowes

United kingdom

Technical manager

Blue Fleet

Registered owner

Carisbrooke Shipping 6250 BV

Rhoon

The Netherlands

Latest data adjustment

03 July 2020
