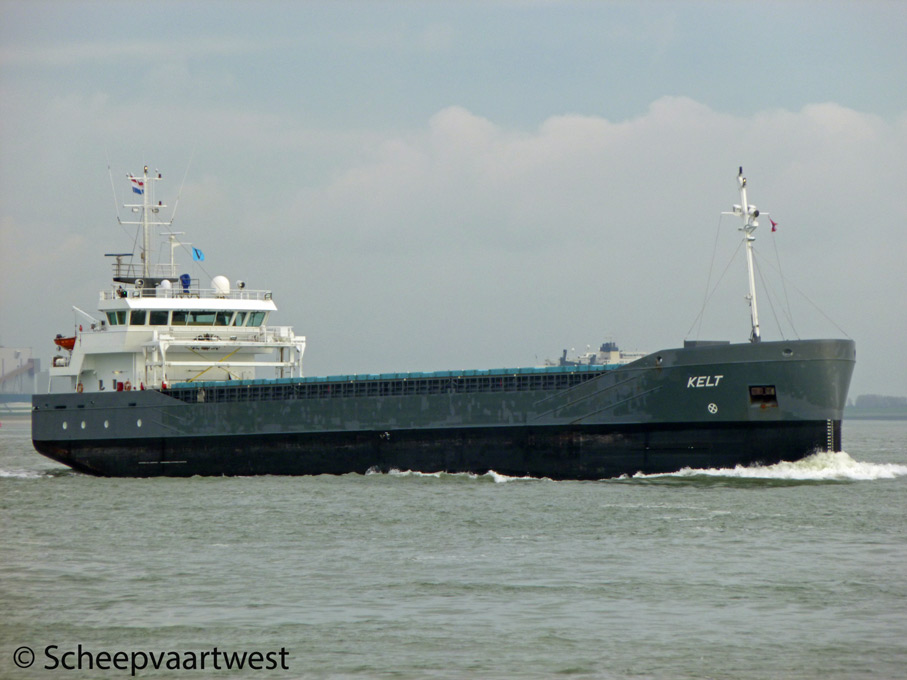

| Westerschelde 25 October 2012 |
 |

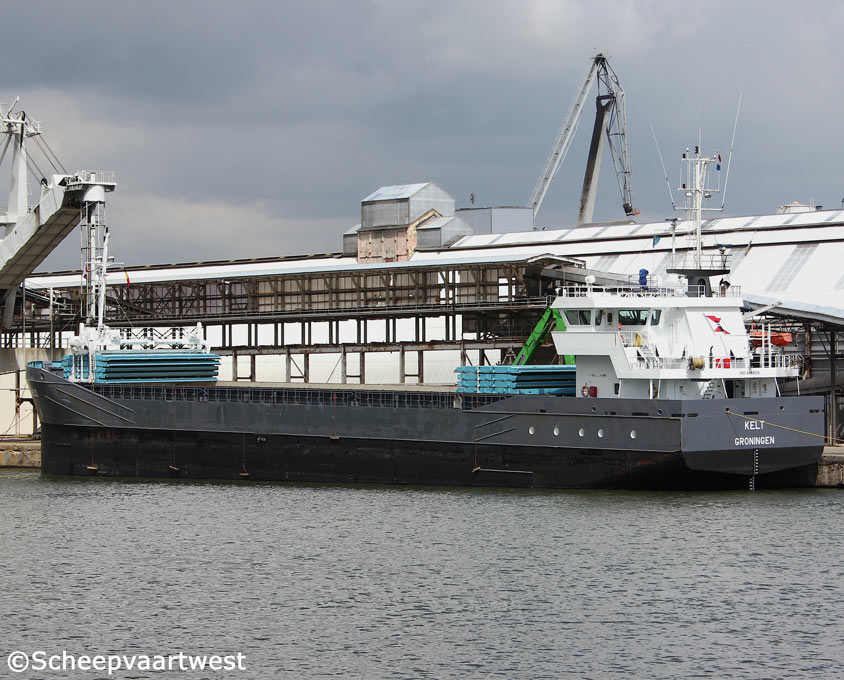

| Antwerpen 07/05/15 |
|
Name |
KELT |
|
Type |
General cargo ship - Strengthened for heavy cargo - Bottom strengthened for loading and unloading aground - Super Saimax |
|
IMO-number |
9489534 |
|
Call sign |
PBTL |
|
Flag |
The Netherlands |
|
Port of registry |
Groningen |
|
GT |
2.409 t |
|
DWT |
Summer: 3.752 t |
|
NT |
993 t |
|
Number of 20ft containers |
132 |
|
Reefer capacity |
In hold: 48 |
|
Length |
82,50 m overall 80,86 m between perpendiculars |
|
Breadth |
12,50 m |
|
Draught |
Summer: 5,41 m |
|
Air draft |
14,00 m |
|
Depth |
8,00 m |
|
Speed |
11,5 knots |
|
Built |
2009 |
|
Keel laid |
2008 |
|
Launch date |
14.03.2009 |
|
Date of completion |
14.08.2009 |
|
Builder casco |
Leda Shipyards |
|
Builder completion |
Peters Shipyard Yard number: 1016 |
|
Hull material |
Steel |
|
Movable bulkhead |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 B HD DITA - 4 stroke single acting 12 cylinder 170 x 215 mm diesel engine - 1.249 kW / 1.697 hp at 1.600 rpm Built: 08.2009 |
|
Gearbox |
1x Reduction gear Reintjes AF-1172 6.696:1 |
|
Propellers |
1x Controllable pitch propeller at 239 rpm, right turning Diameter: 2.600 mm - 4 blades |
|
Electric installations |
400/230 V |
|
Shaft generator |
1x 390 kVA - 312 kW |
|
Generators |
1x Sisu 645DSBIG - 6 cylinder 111 x 145 mm diesel engine 127 kW at 1.500 rpm with Stamford HCM534C generatorset 159 kVA Built: 2008 |
|
Emergency generator |
1x Sisu 49-CTA - 4 cylinder 108 x 134 mm diesel engine 65 kW at 1.500 rpm with Stamford UCM274C generatorset 77 kVA Built: 2008 |
|
Bow thruster |
1x Veth 2-K-1000 - 220 kW |
|
Number of holds |
1 54,60 x 10,30 x 8,15 m |
|
Cargo capacity |
4.583 m³ / 161.847 ft³ |
|
Number of hatches |
1 54,60 x 10,30 m |
|
Type of hatches |
Pontoon |
|
Strength |
Hatchcovers: 1,5 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel oil: 135 m³ Water ballast: 1.982 m² Fresh water: 26 m³ Lubricating oil: 7 m³ Dirty oil: 4 m³ |
|
Anchor equipment |
2 Each 412,00 m 1.250 kg |
|
Lifting equipment |
1x Gantry Crane - SWL 13,5 t |
|
Manager |
Wagenborg Shipping B.V. |
|
Owner |
A. van der Velde |
|
Registered owner |
Van Der Velde Coasting |
|
Last update |
12.02.2013 |
