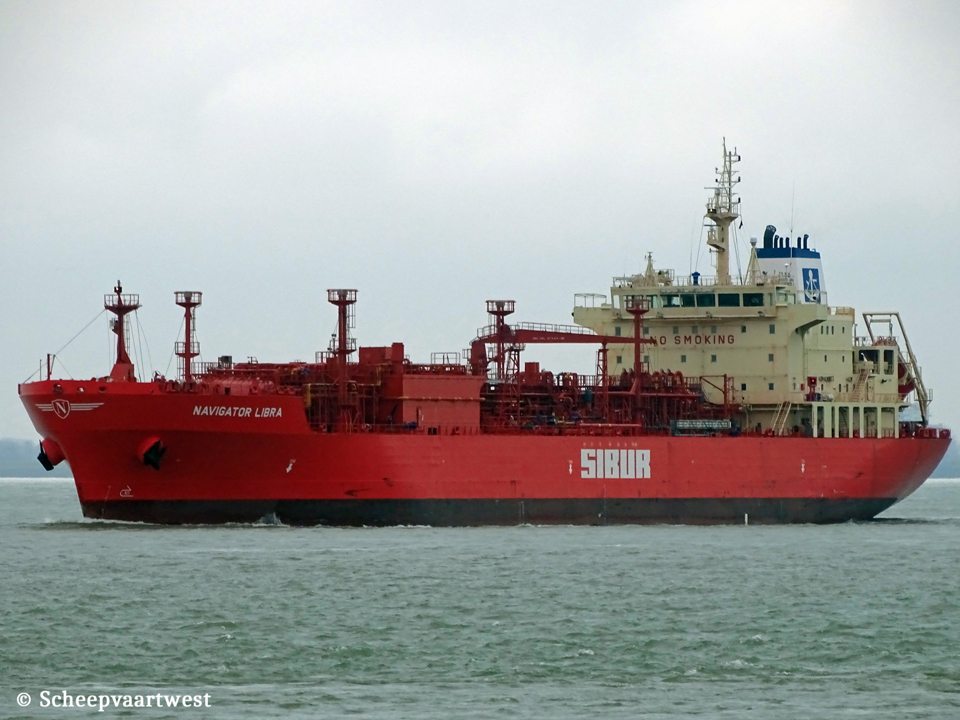

Navigator Libra IMO 9482586 05

Westerschelde 20 January 2018

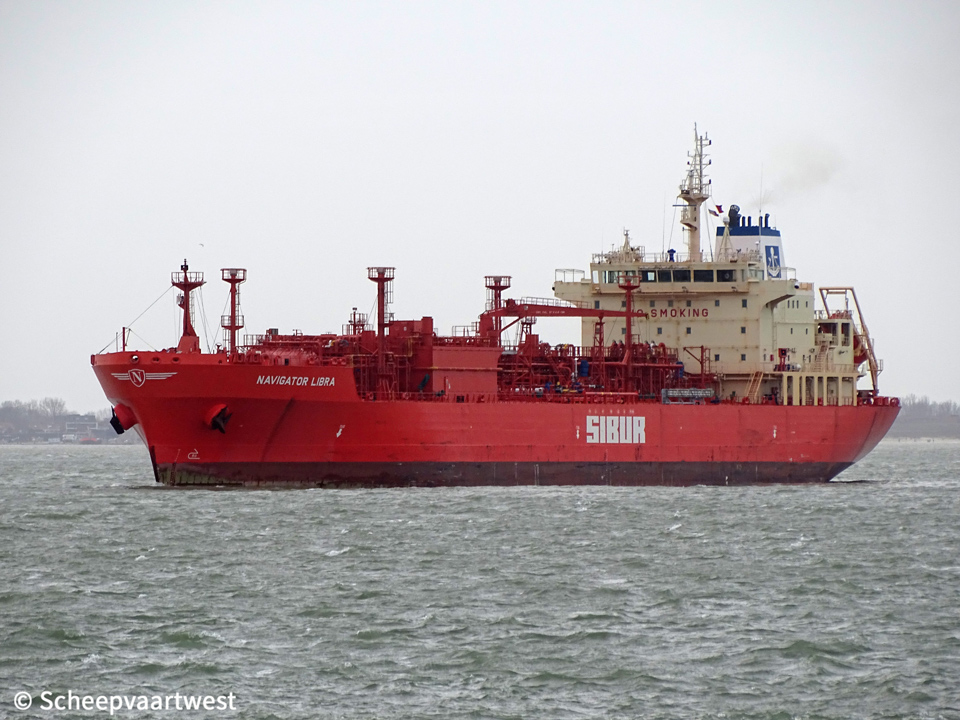

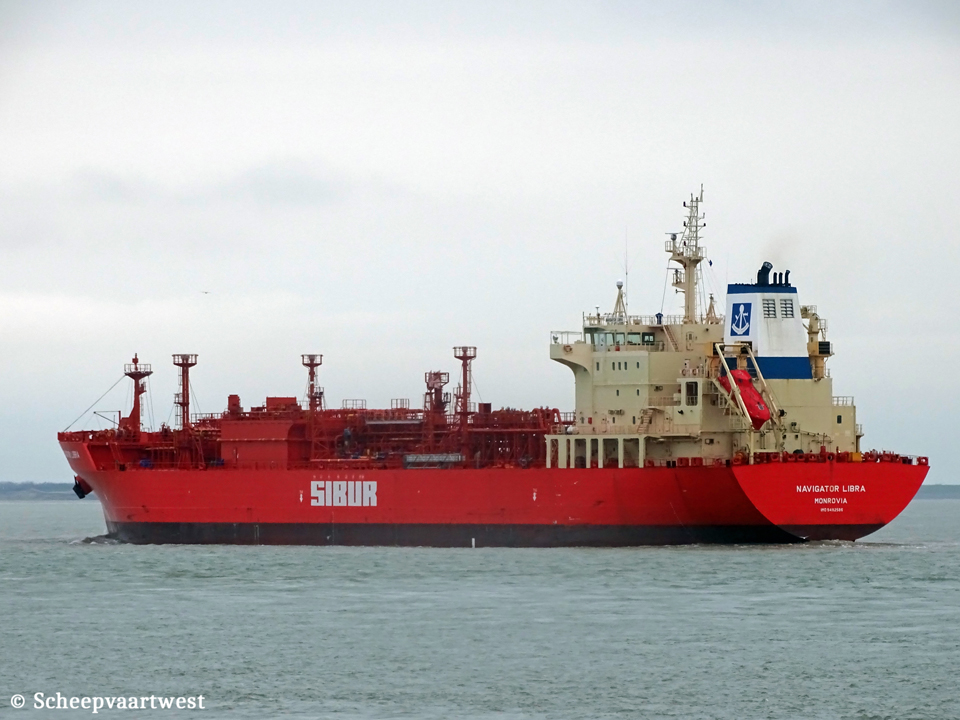

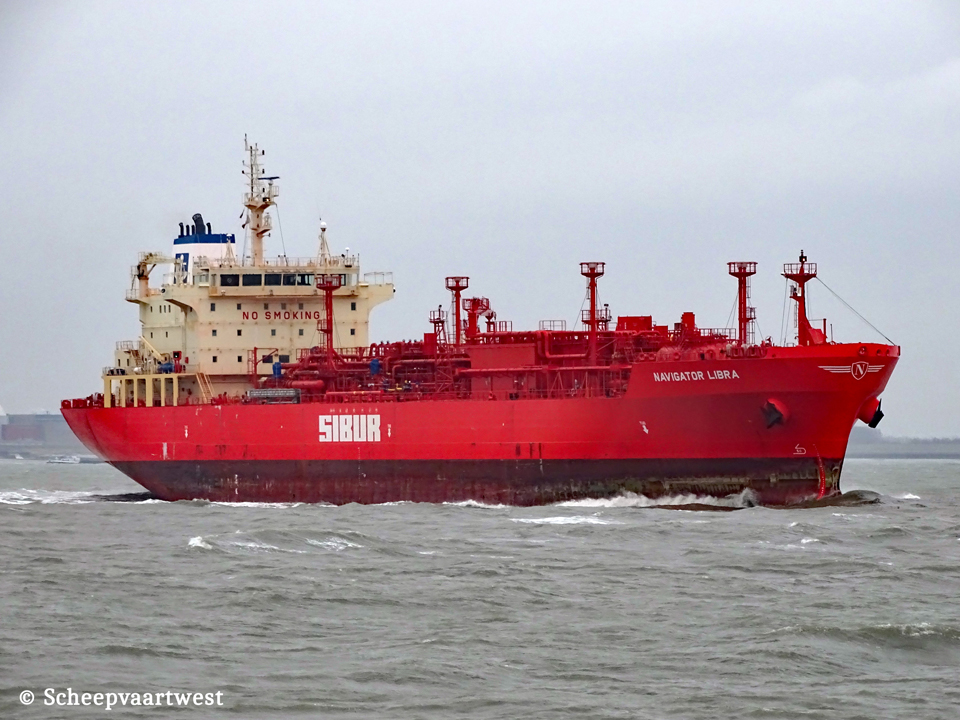

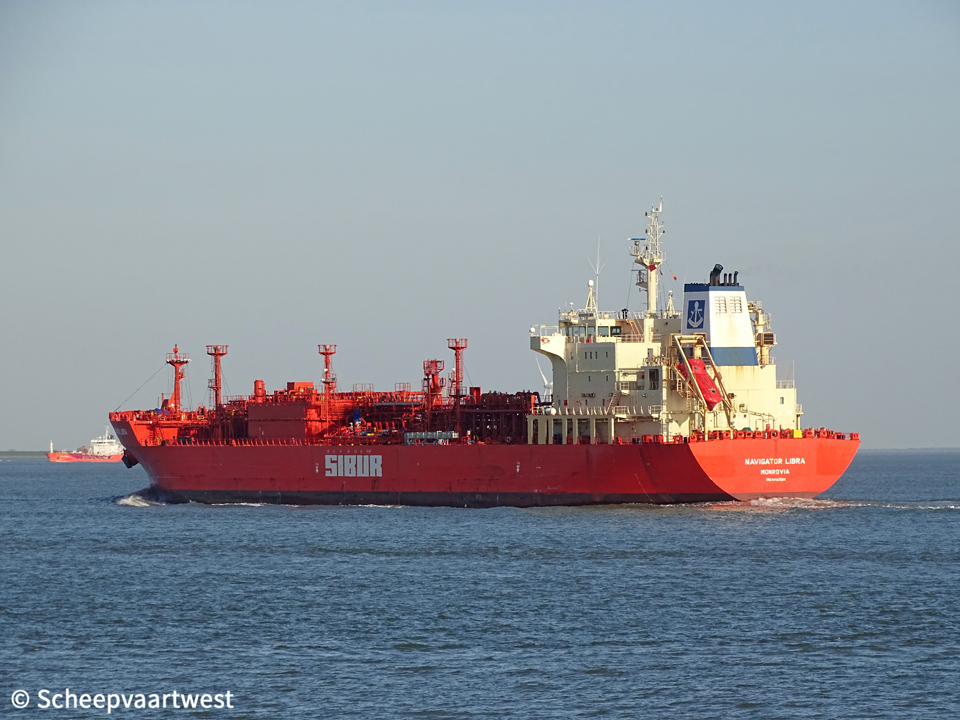

Navigator Libra IMO 9482586 07   Navigator Libra IMO 9482586 06   Navigator Libra IMO 9482586 03   Navigator Libra 02   Navigator Libra 01
Westerschelde 20/01/18   Westerschelde 20/01/18   Westerschelde 12/01/19   Westerschelde 21/02/20   Westerschelde 10/04/20


Name

NAVIGATOR LIBRA

Type

Liquefied petroleum gas carriage - LPG

IMO-number

9482586

Call sign

A8ZD6

Flag

Liberia

Port of registry

Monrovia

GT

18.321 t

DWT

22.911 t

NT

5.496 t

Length

159,97 m overall

152,20 m between perpendiculars

Breadth

25,64 m extreme

Draught

10,90 m

Keel to mast end

44,60 m

Depth

16,40 m

Speed

Service: 15,0 knots

Built

2012

Keel laid

29/09/2011

Launch date

23/11/2011

Date of completion

09/02/2012

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

8069

Hull material

Steel

Hull type

Double Bottom

Main engine

1x MAN-B&W/HHI - 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW / 10.686 hp at 129,0 rpm

Builder: Hyundai Engine & Machinery Co., Ltd.(B&W), Ulsan - South Korea

Propellers

1x Fixed pitch mono-block propeller

Boilers

1x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, exhaust gas heated

Generators

3x Hyundai 5H21/32 main diesel generatorsets each 800 kW

Builder: Hyundai Heavy Industries Co., Ltd.

Number of cargo tanks

4

Cargo tank capacity

Liquid: 20.335 m³

Number of pumps

8x Cargo pumps each 250 m³/h

Tank capacities

Ballast: 9.211,4 m³

Commercial manager

Navigator Gas LLC

The Verde, 10, Bressenden Place

London, SW1E 5DH

United Kingdom

ISM manager

Northern Marine Management Ltd.

Alba House, 2 Central Avenue Clydebank, G81 2QR

Dunbartonshire

United Kingdom

Registered owner

Navigator Libra LLC

Care of Navigator Gas LLC

The Verde, 10, Bressenden Place

London, SW1E 5DH

United Kingdom

Latest data adjustment

23 January 2023
