Westerschelde 03 August 2014 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 11/11/15 | Westerschelde 11/11/15 | Westerschelde 21/01/17 | Westerschelde 30/05/15 | Westerschelde 27/06/18 | Westerschelde 09/03/16 | |||||
|
Name |

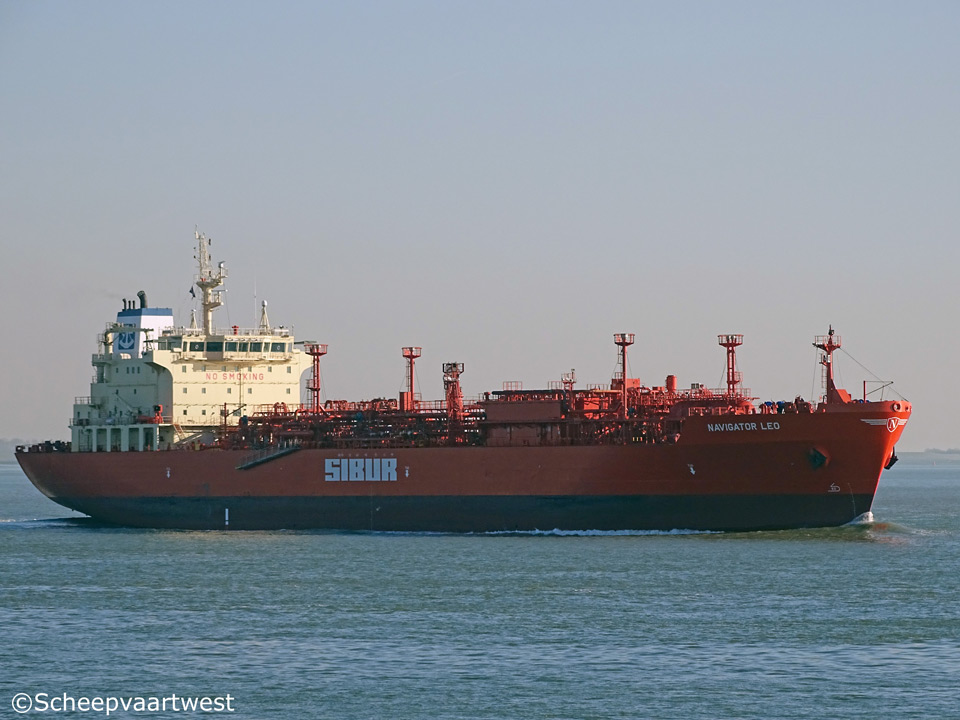

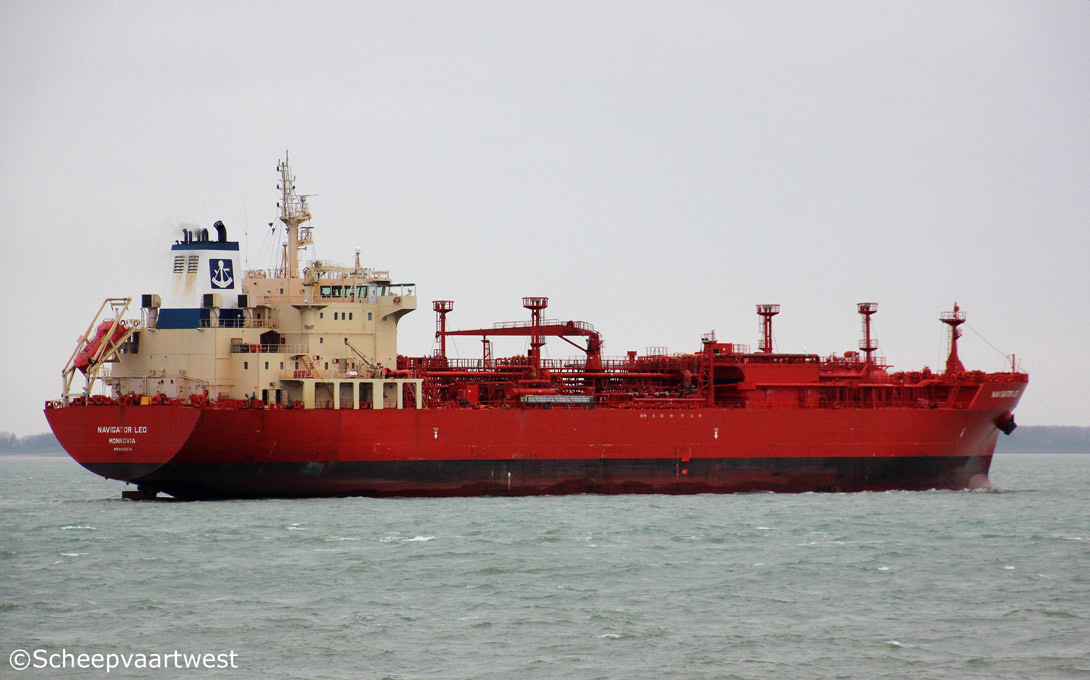

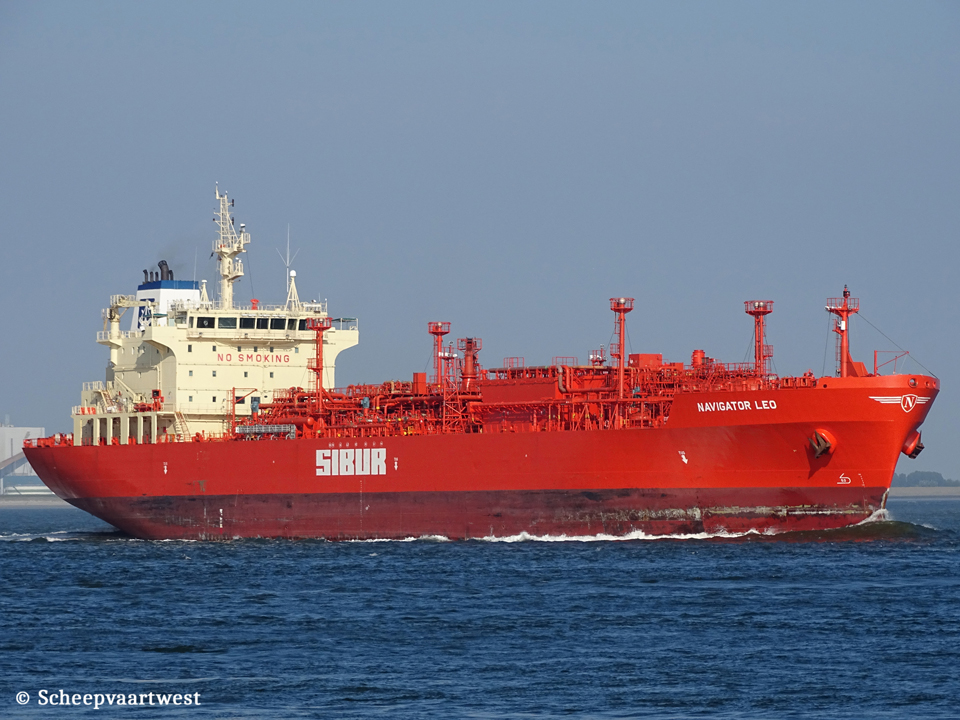

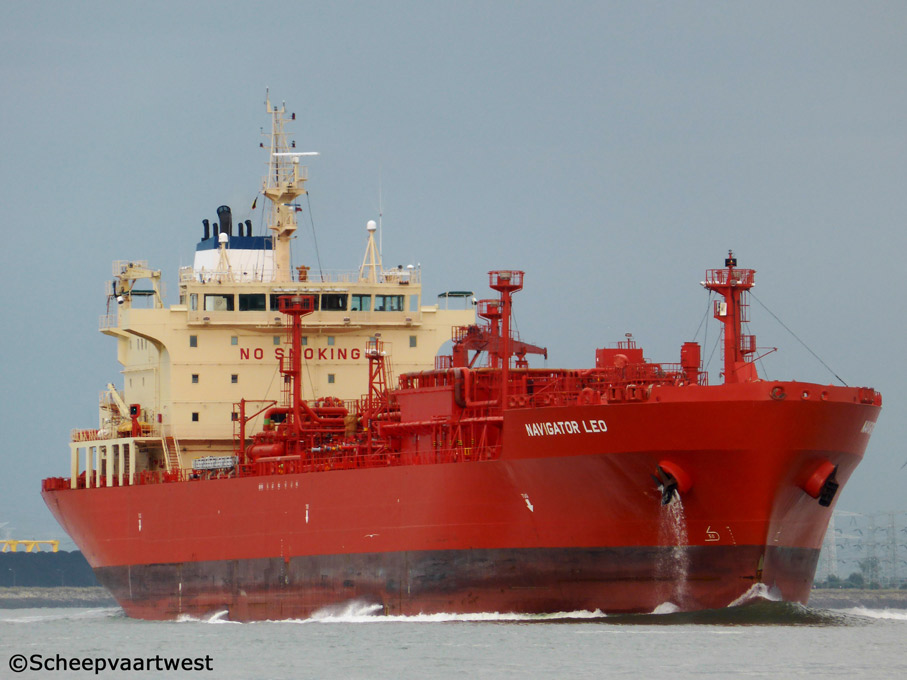

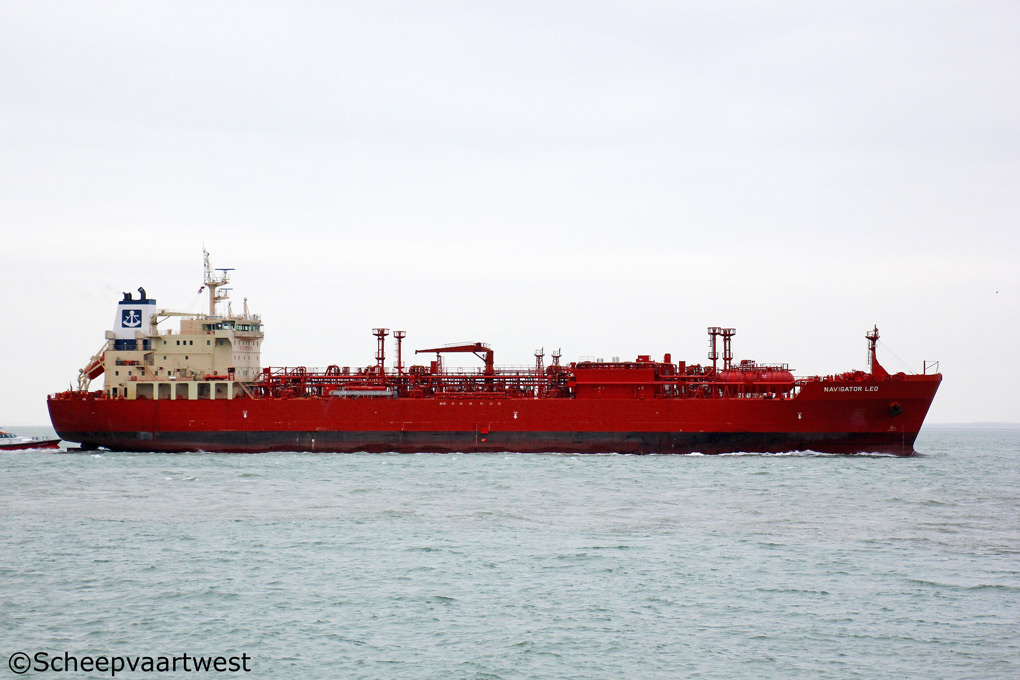

NAVIGATOR LEO |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9482574 |
|
Call sign |
A8ZD5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
18.321 t |
|
DWT |
Summer: 22.844 t |
|
NT |
5.496 t |
|
Length |
159,97 m overall 152,20 m between perpendiculars |
|
Breadth |
25,64 m extreme |
|
Draught |
10,90 m |
|
Depth |
16,40 m |
|
Speed |
Max: 17,3 knots Service: 15,0 knots |
|
Built |
2011 |
|
Keel laid |
13/05/2011 |
|
Lunch date |
05/07/2011 |
|
Date of completion |
27/09/2011 |
|
Builder |
Hyundai Mipo Dockyard Ulsan South Korea |
|
Yard number |
8068 |
|
Hull material |
Higher tensile steel |
|
Hull type |
Double bottom |
|
Continuous decks |
1 |
|
Main engine |
MAN-B&W/Hyundai 6S46MC-C8 - 2 stroke singe acting 6 cylinder 460 x 1.932 mm combustion engine Mcr 7.860 kW / 10.686 hp at 129,0 rpm Builder: Hyundai Engine & Machinery Co., Ltd.(B&W), Ulsan - South Korea |
|
Propellers |
1x Fixed pitch mono-block propeller - aft at 129,0 rpm |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired |
|
Generators |
3x Hyundai Himsen 5H21/32 - 4 strke 5 cylinder 210 x 320 mm diesel engines each Mcr 850 kW connected with generators each 800 kW / 450 Volt 60 Hz |
|
Number of cargo tanks |
4x Bi-lobe |
|
Cargo tank capacity |
Liquid: 20.335 m³ |
|
Deck tanks |
2 Each 155 m³ |
|
Number of pumps |
8x Cargo pumps each 250 m³/h |
|
Tank capacities |
MGO: 210 m³ HFO: 1.944 m³ Ballast: 9.211,3 m³ |
|
Crew size |
16 |
|
Manager |
Northern Marine Management Ltd. United Kingdom |
|
Previous manager |
Navigator Gas, London, SW1H 0AD - United Kingdom |
|
Registered owner |
Navigator Leo LLC |
|
Sister ships |
Navigator Libra - IMO 9482586 |
|
Latest data adjustment |
03 October 2023 |
