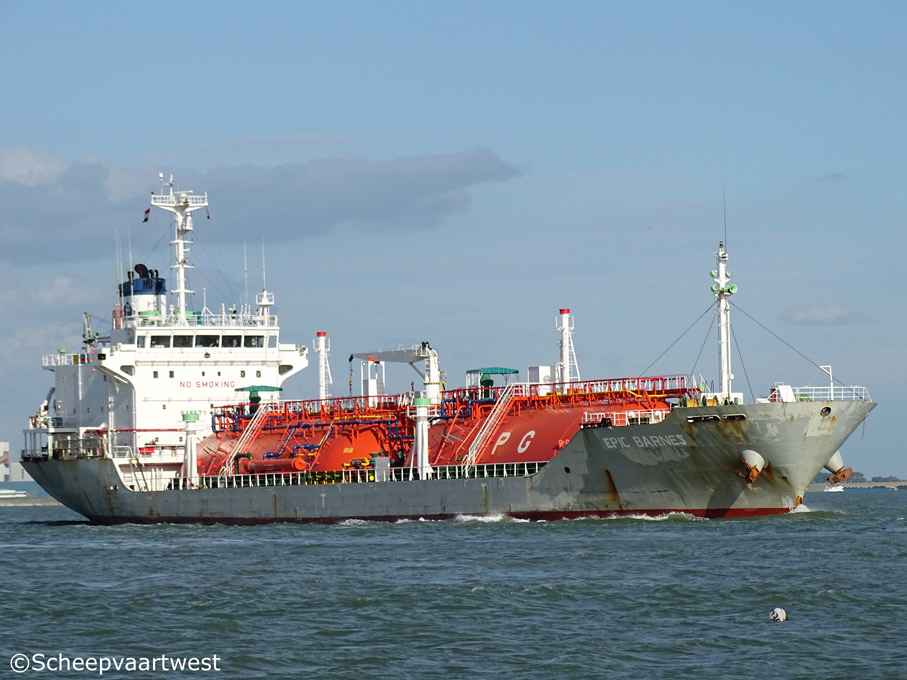

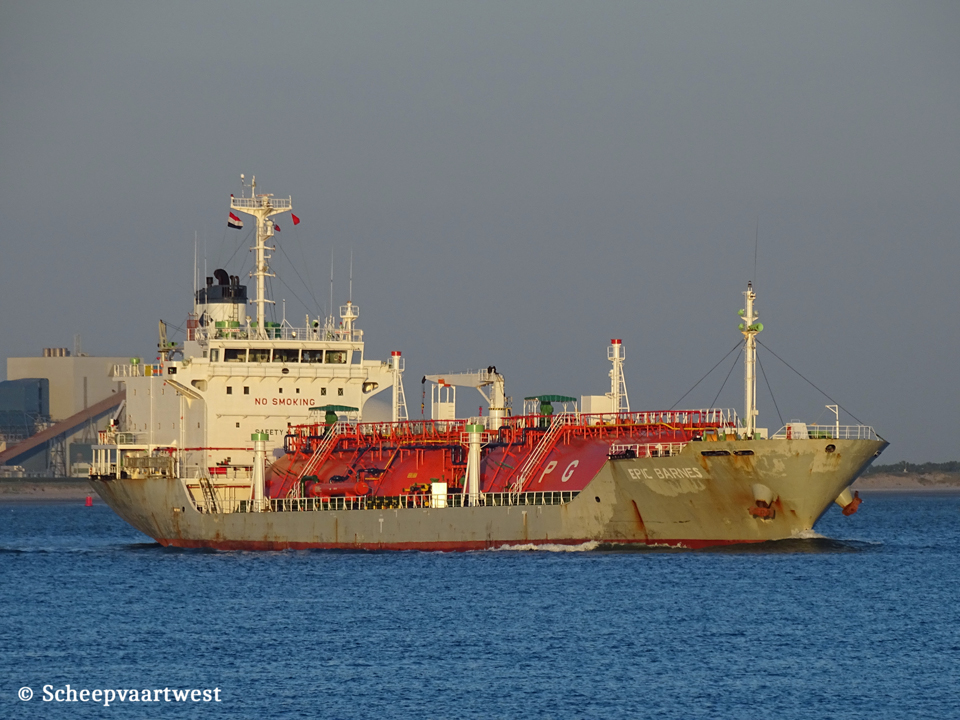

Epic Barnes - IMO 9251121

Westerschelde 08 August 2016

Name

EPIC BARNES

Previous names

2009 - 2015 Worcester

Type

Liquefied gas tanker - LPG

IMO-number

9251121

Call sign

H9ZH

Flag

Republic of Panama

Port of registry

Panama City

GT

5.763 t registered

DWT

Summer: 6.621 t

NT

1.999 t registered

Length

119,29 m overall

Breadth

18,20 m moulded

Draught

Summer: 6,46 m

Moulded L x B x D

112,50 x 18,20 x 8,40 m

Registered L x B x D

112,66 x 18,20 x 8,40 m

Kel to mast end

34,16 m

Freeboard

1.971 mm

Depth

8,40 m moulded

Speed

Max.: 16,2 knots

Built

2002

Keel laid

29/08/2001

Launch date

07/12/2001

Date of completion

12/03/2002

Builder

Murakami Hide Shipbuilding Co., Ltd.

Imabari

Japan

Yard number

521

Hull material

Double bottom

Main engine

1x MAN-B&W 7L35MC - 2 stroke single acting 7 cylinder 350 x 1.050 mm combustion engine 4.530 kW / 6.159 hp at 210 rpm

Manufacturer: I-Mex Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 360 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 7.0 bar

Evaporation: 1,37 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Generators total 1.080 kVA

Bow thruster

1x 232 kW

Cargo liquid capacity

7.224 m³

Number of pumps

2x Cargo pumps each 450 m³/h

Tank capacities

Fuel oil: 785 m³

Fresh water: 250 m³

Water ballast: 3.025 m³

Commercial manager

Diamantis Pateras Maritime Ltd.

85, Akti Miaouli & Flessa Street

185 38 Piraeus

Greece

ISM manager

BW Epic Kosan Maritime Pte. Ltd.

22-89, The Central, 8, Eu Tong Sen Street

Singapore 059818

republic of Singapore

Registered owner

Epic Barnes Pte. Ltd.

Care of Diamantis Pateras Maritime Ltd.

85, Akti Miaouli & Flessa Street, 1

85 38 Piraeus

Greece

Previous names & owners

2099 - 2015 Worcester - BSM Hellas, Athens - Greece

Latest data adjustment

13 August 2023
